Motor Branch-Circuit Conductor & OCPD Study Tool
Size branch-circuit conductors, overload protection, and OCPD for single-motor circuits under NEC Article 430 — with a live one-line diagram, motor starting current simulation, illustrative TCC, Table 430.52(C)(1) multiplier matrix, copper-vs-aluminum comparison, and self-test mode.
Overview

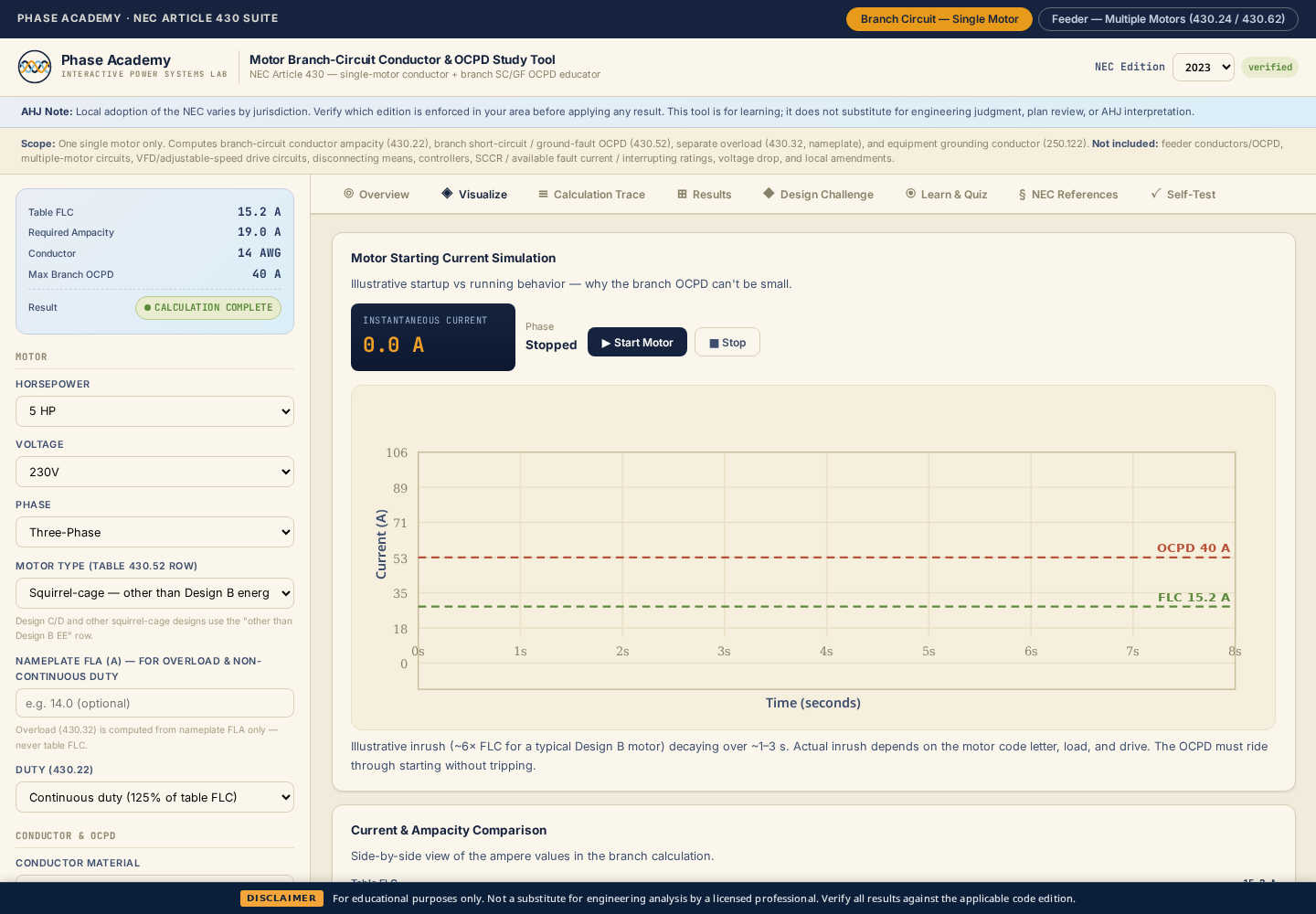

Motor branch circuits are among the most precisely governed circuits in the NEC — Article 430 separates overload protection (430.32) from short-circuit and ground-fault protection (430.52) intentionally, sizing them from different bases for different purposes, and the interaction between FLC table values, OCPD type multipliers, and conductor ampacity rules creates a web of constraints that this study tool makes navigable. Select motor horsepower (½–200 HP), voltage (115–575 V), phase, and motor type (including synchronous), and the tool pulls FLC automatically from NEC Tables 430.248 and 430.250 per 430.6(A). Conductor sizing follows 430.22 (125% of FLC), with the 430.22(E) rule applied for adjustable-speed drive applications. Overload protection is sized per 430.32(A) based on motor service factor and temperature rise. The OCPD is sized from the selected device type (inverse-time breaker, dual-element fuse, non-time-delay fuse, or instantaneous-trip breaker) using Table 430.52(C)(1) multipliers, with next-standard-size rounding per 240.6(A). The Visualize tab delivers the full analytical picture: a live motor branch-circuit one-line diagram with annotated values, live utilization gauges for conductor and OCPD, a Motor Starting Current Simulation showing inrush vs. running current, an illustrative Time–Current Coordination chart showing how the overload and OCPD regions relate, a Copper vs. Aluminum conductor comparison, the full 430.52(C)(1) Multiplier Matrix, and an FLC vs. HP curve at the selected voltage. The Trace tab cites every NEC section. The Results tab separates overload protection from SC/GF protection explicitly. The Self-Test tab runs deterministic assertions against the FLC tables and required ampacity calculations. A Design Challenge tab with history tracking and a full Quick Article 430 Index round out the tool.

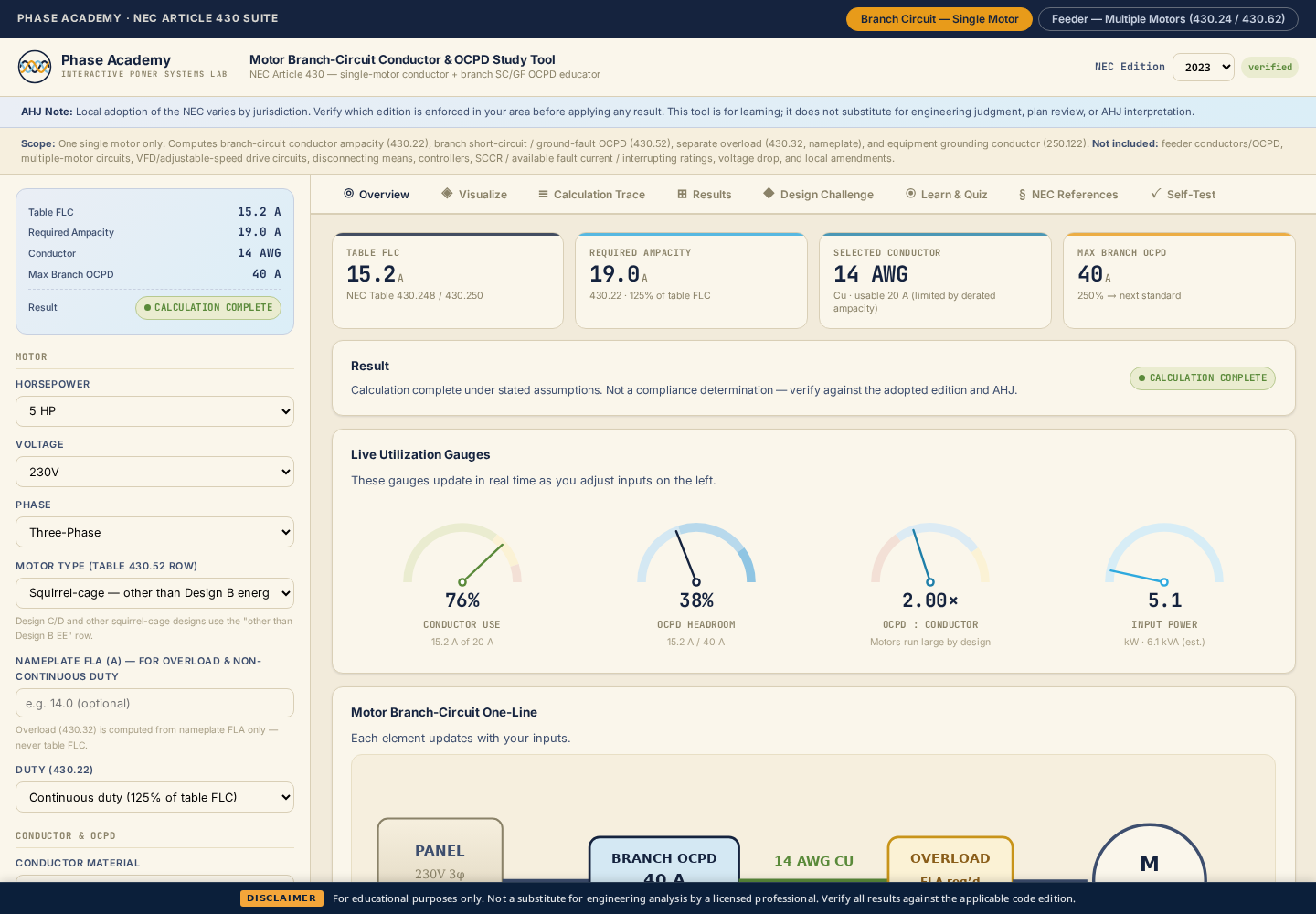

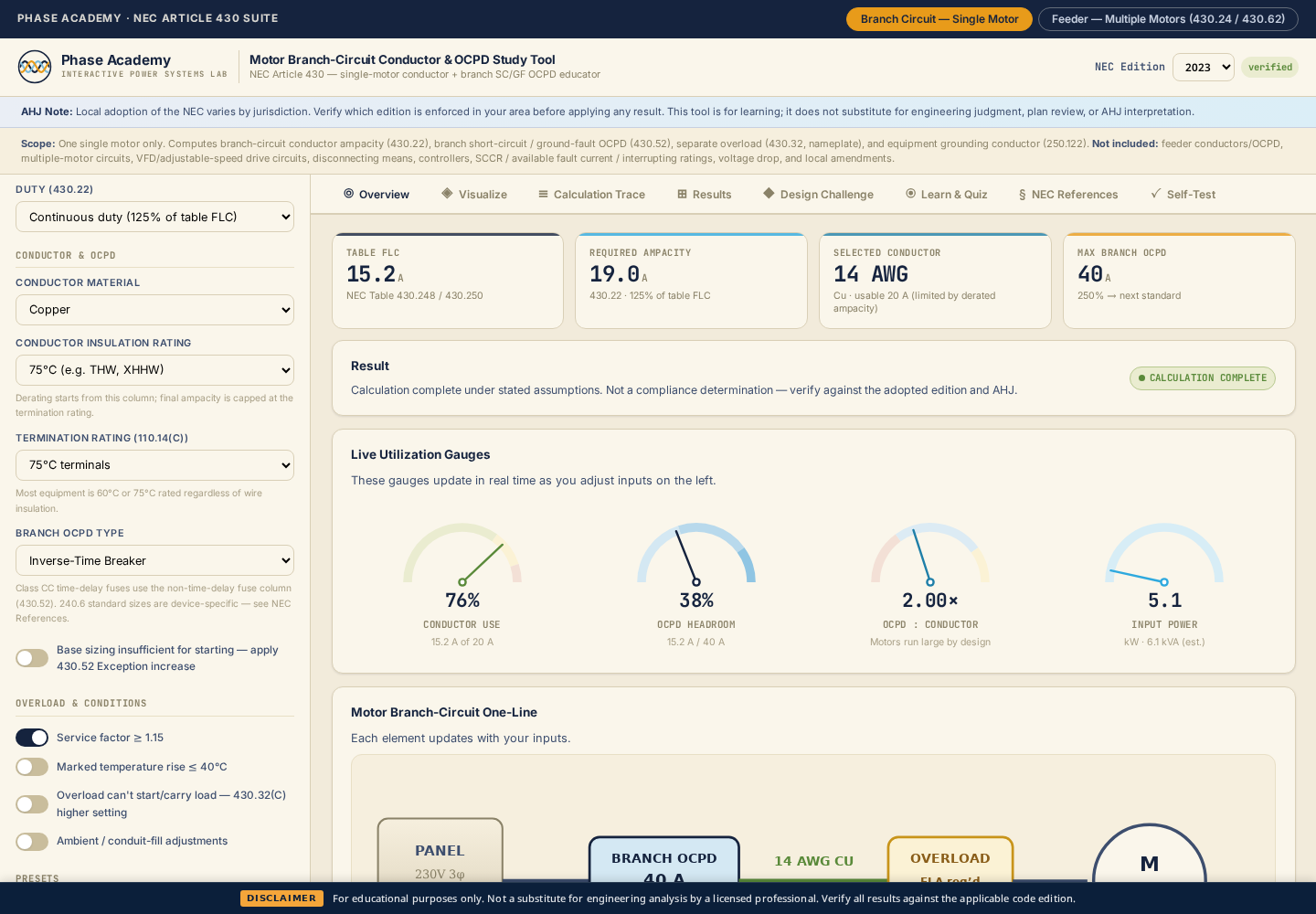

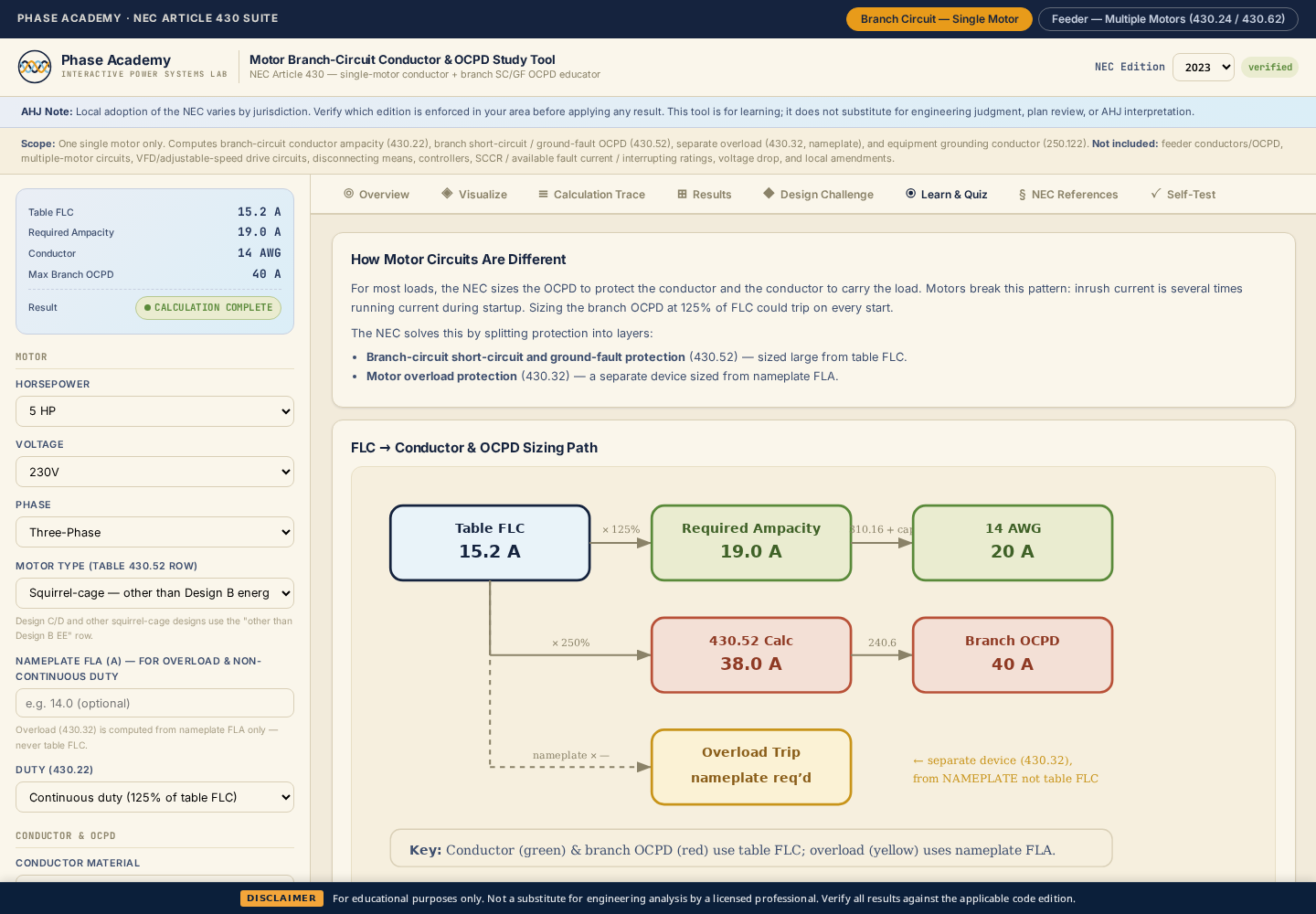

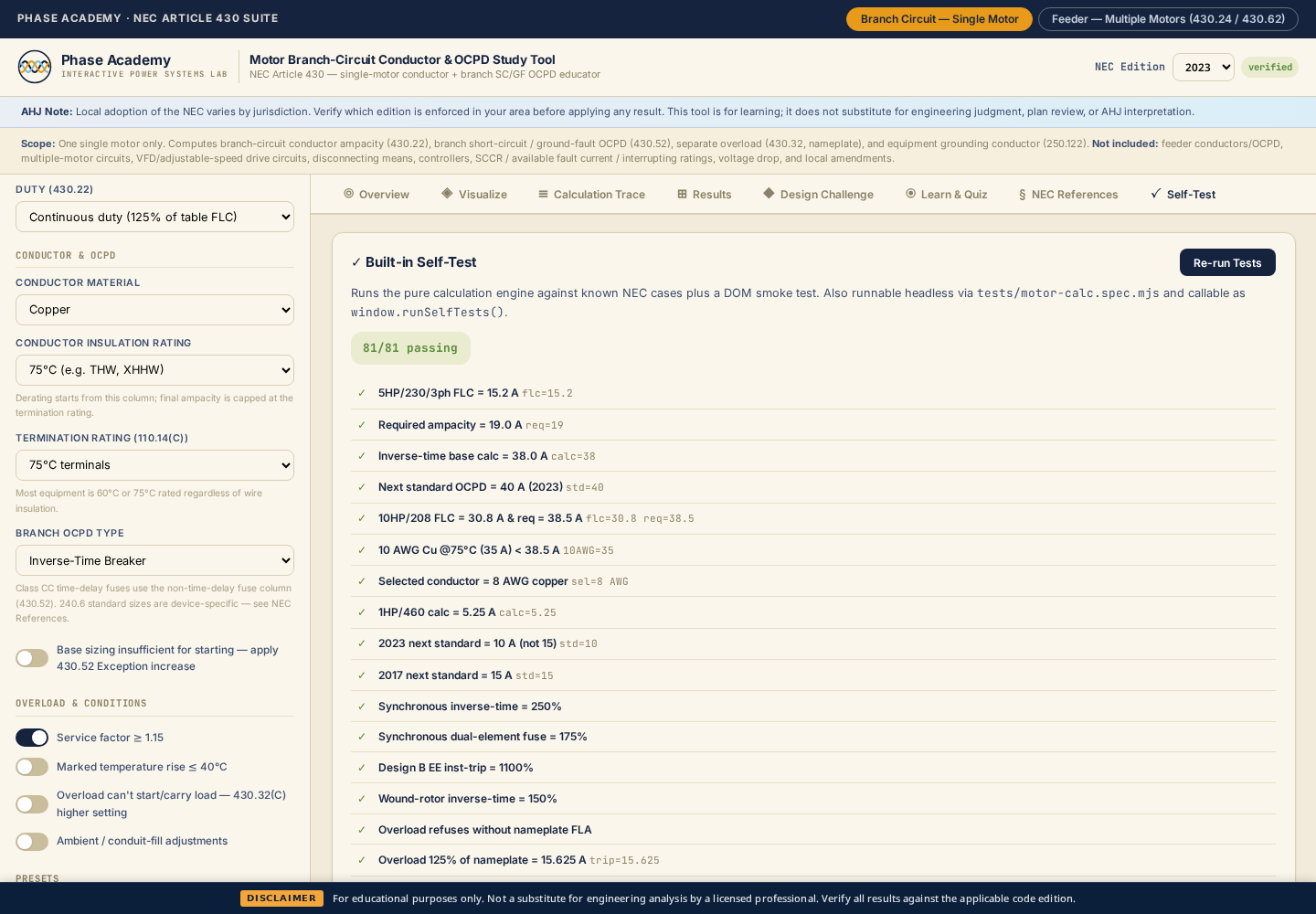

App preview
A live look at the app you'll launch — every control on the left drives the visualizations on the right in real time.
Inside the lab
Example data — not a real field report
What you'll do

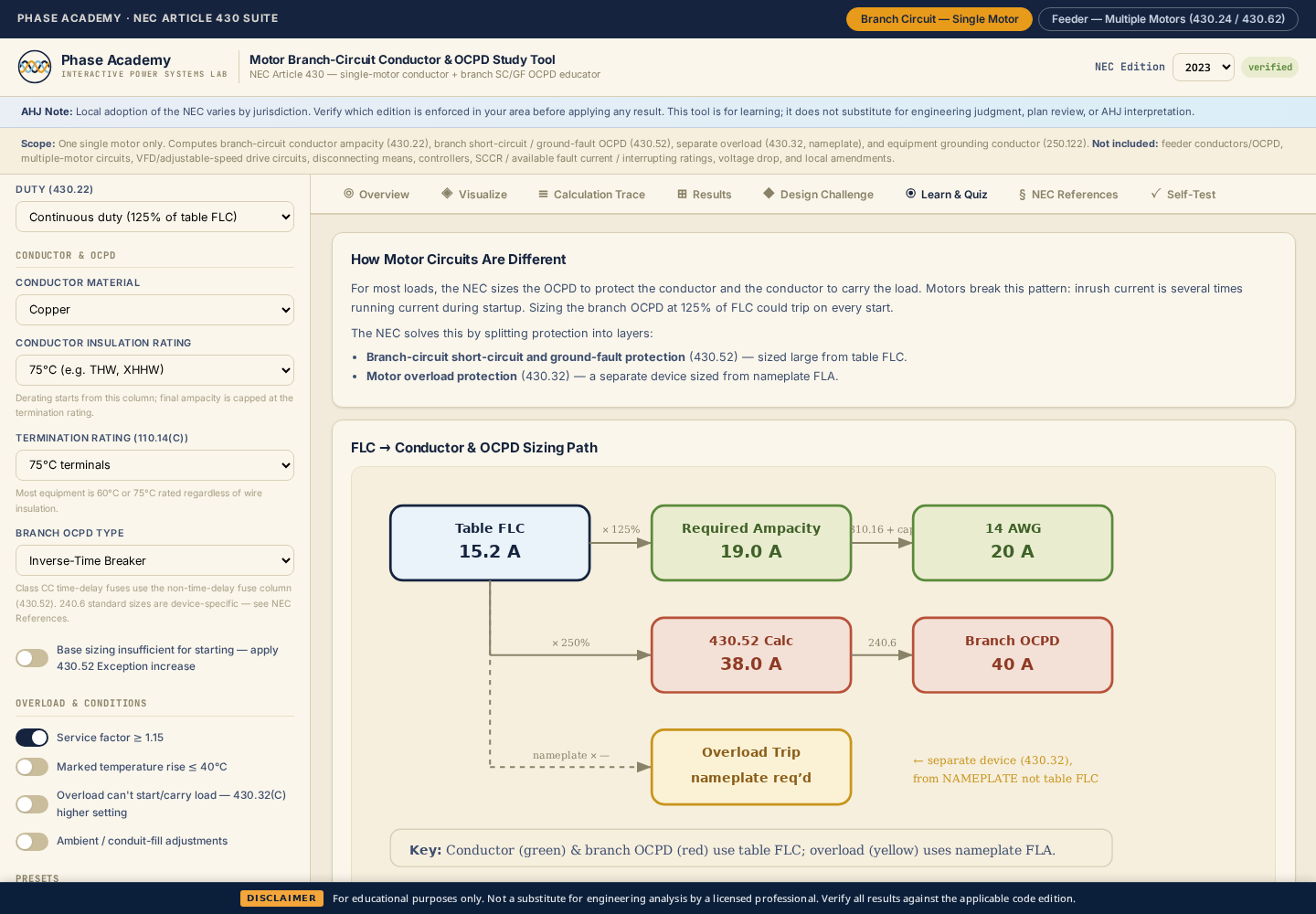

- 01Look up full-load current from NEC Tables 430.248 and 430.250 for single-phase, three-phase, and synchronous motors, and explain why nameplate amps must not be used for branch-circuit sizing
- 02Apply the 125% continuous-load factor to size branch-circuit conductors under NEC 430.22, and identify when 430.22(E) applies a different multiplier for adjustable-speed drive applications
- 03Determine maximum OCPD rating for each device type using the Table 430.52(C)(1) multipliers for the selected motor type, and apply next-standard-size rounding per 240.6(A)

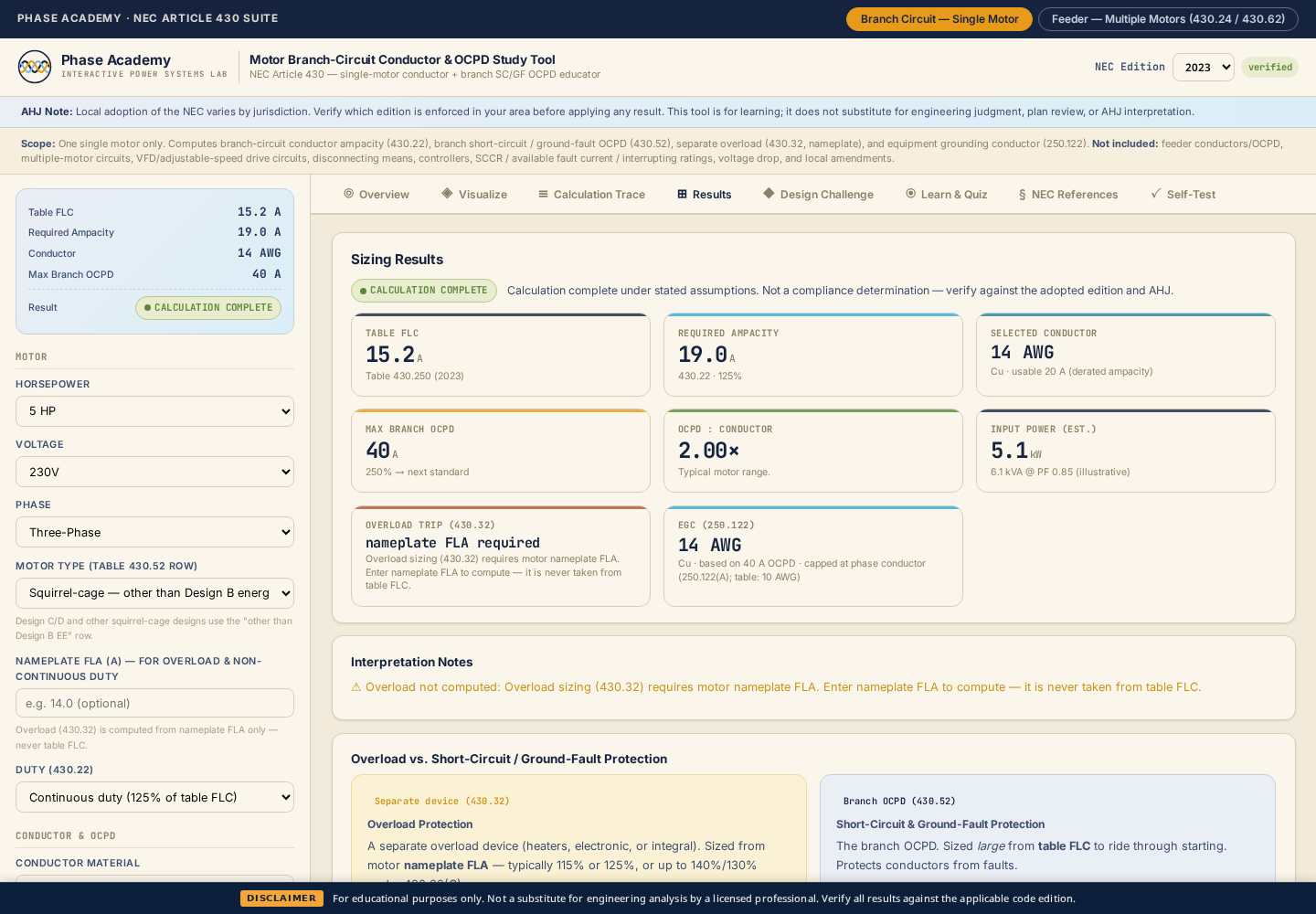

- 04Size overload relay protection under NEC 430.32(A) based on motor service factor and temperature rise class, and explain why this calculation is independent of the SC/GF OCPD
- 05Interpret the Motor Starting Current Simulation and illustrative TCC to explain why motor OCPDs are intentionally rated well above conductor ampacity without creating a code violation
- 06Use the 430.52(C)(1) Multiplier Matrix to compare OCPD ratings across all four device types for the same motor, and identify which type produces the most conservative protection

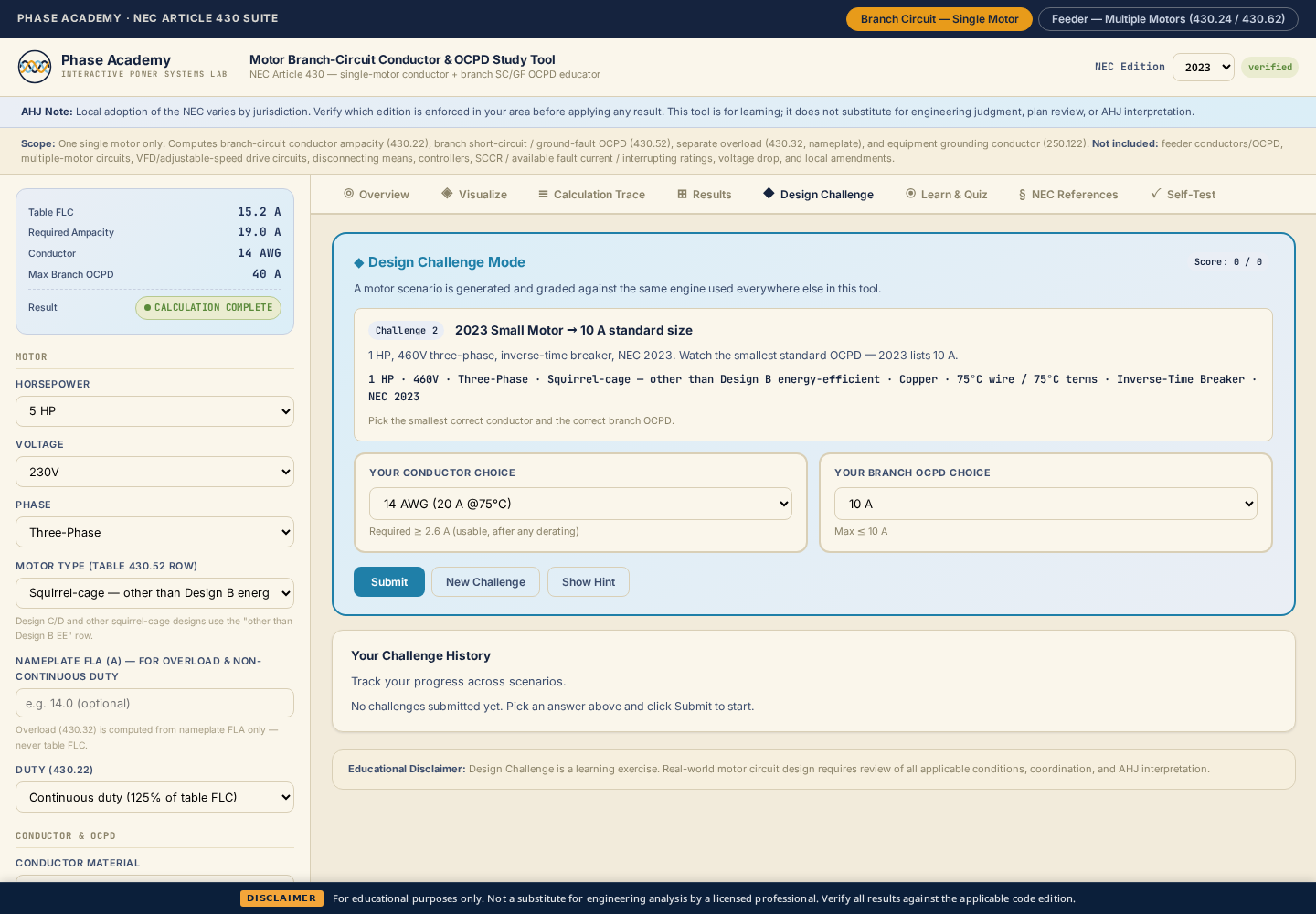

Try a guided scenario
Work a motor branch circuit from nameplate to protection.
Motor branch circuits · Motors & TransformersNo sign-in required. Progress is saved on this device.
What this lab is not
- Not a design document, stamped calculation, or approval record.
- Not a substitute for engineering analysis by a licensed professional.
- Not a reproduction of NEC tables — values are computed and cited, and you must verify against the code edition enforced in your jurisdiction.
- Not connected to live equipment and not a safety device.
Calculation basis

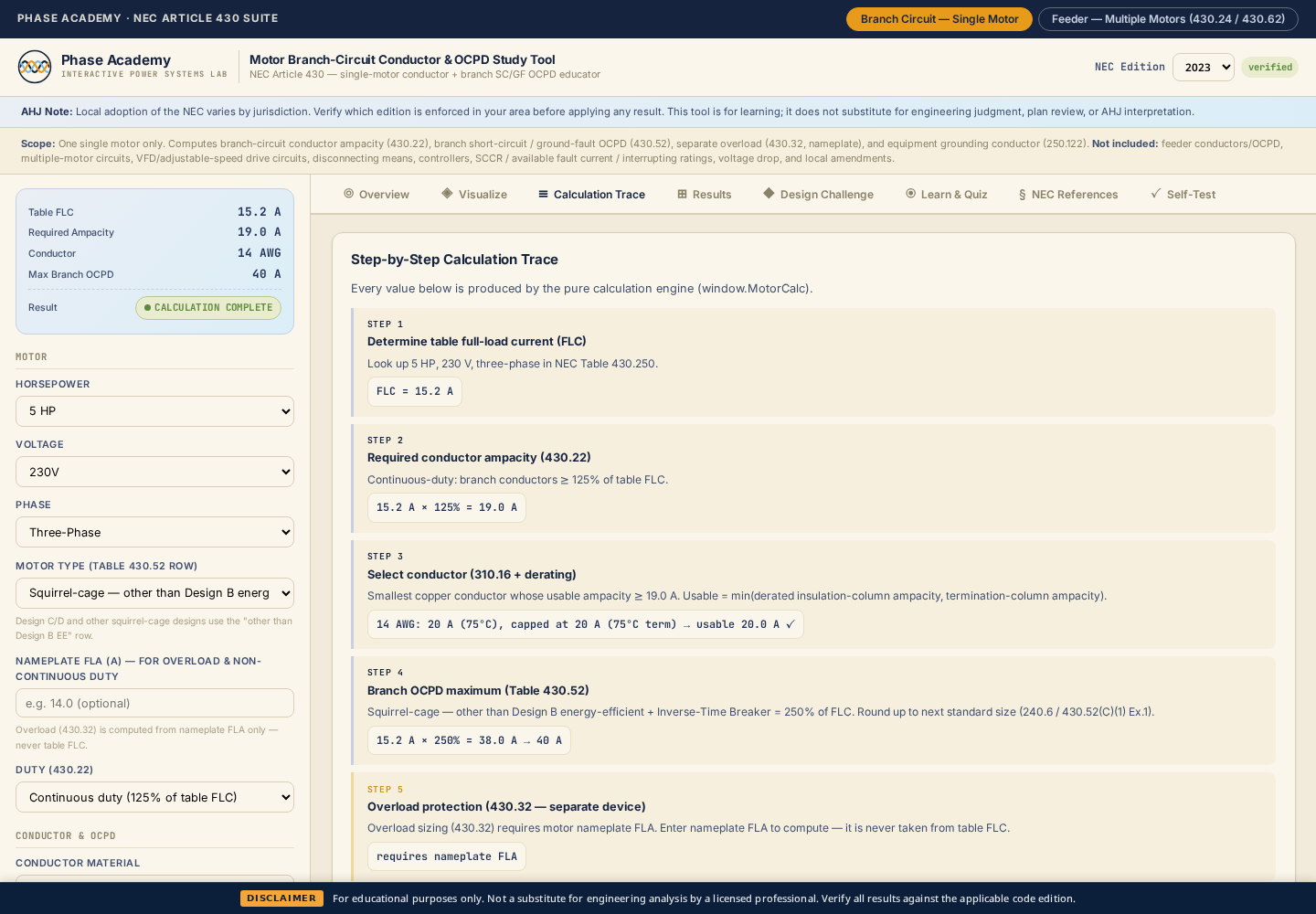

References NEC. Results are computed from the entered inputs and cited back to the referencing clause or table number — no code text or table is reproduced verbatim.
Simplifying assumptions are stated in the lab itself; where a model is intentionally conceptual, the lab says so rather than implying study-grade accuracy.
Standards basis: Standards-aware. Validation state: Automated checks only (last checked 2026-08-15).
Who it's for
Tags
- CATEGORY
- NEC Calculators
- DIFFICULTY
- Intermediate
- AVAILABILITY
- Available
- VALIDATION
- Automated checks only
- STANDARDS BASIS
- Standards-aware
- VERSION
- v5.0
- LAST CHECKED
- 2026-08-15
- REVIEWER OF RECORD
- Unassigned — pending licensed PE technical review
- EST. TIME
- 20–30 min
Status labels are defined on the status definitions page.
Open full appFor education, training, and preliminary support only. Verify results against applicable codes, standards, manufacturer data, project specifications, AHJ requirements, and qualified engineering judgment.
