Grounding Electrode Conductor (GEC) Sizing Calculator

The grounding electrode conductor is one of the most mis-sized conductors in electrical installation — because NEC Table 250.66 is not a single look-up but a general rule with three electrode-specific exceptions that can allow a smaller conductor than the table would otherwise require. This calculator resolves the full 250.66 logic: enter the largest service-entrance or feeder conductor size (14 AWG through 2000 kcmil), select the electrode type, and the tool returns the general Table 250.66 GEC size along with any applicable exception under 250.66(A) (rod, pipe, or plate electrodes — GEC need not exceed 6 AWG copper or 4 AWG aluminum), 250.66(B) (concrete-encased electrode — GEC need not exceed 4 AWG copper), or 250.66(C) (ground ring — GEC need not be larger than the ring conductor). For services with multiple electrode types, the tool evaluates each electrode path separately. Parallel conductor sets follow 250.66 — the GEC is sized from the sum of the parallel conductor cross-sectional area, not the individual conductor size. System type is selectable between service entrance and separately derived system (which uses the derived phase conductor size as the sizing basis). GEC material is selectable: copper, or aluminum/copper-clad aluminum (with the NEC prohibition on aluminum/CCA directly buried within 18 inches of earth noted). Six presets cover 200 A Typical, 500 kcmil Large Service, Parallel Sets, Aluminum Source / Copper GEC, Separately Derived System, and Ground Ring. The Results tab shows a Source-to-Electrode path diagram and sizing gauges. The Trace tab walks through NEC 250.66 with section citations. A Design Challenge tab and a full NEC Reference Panel are included.

Enlarge

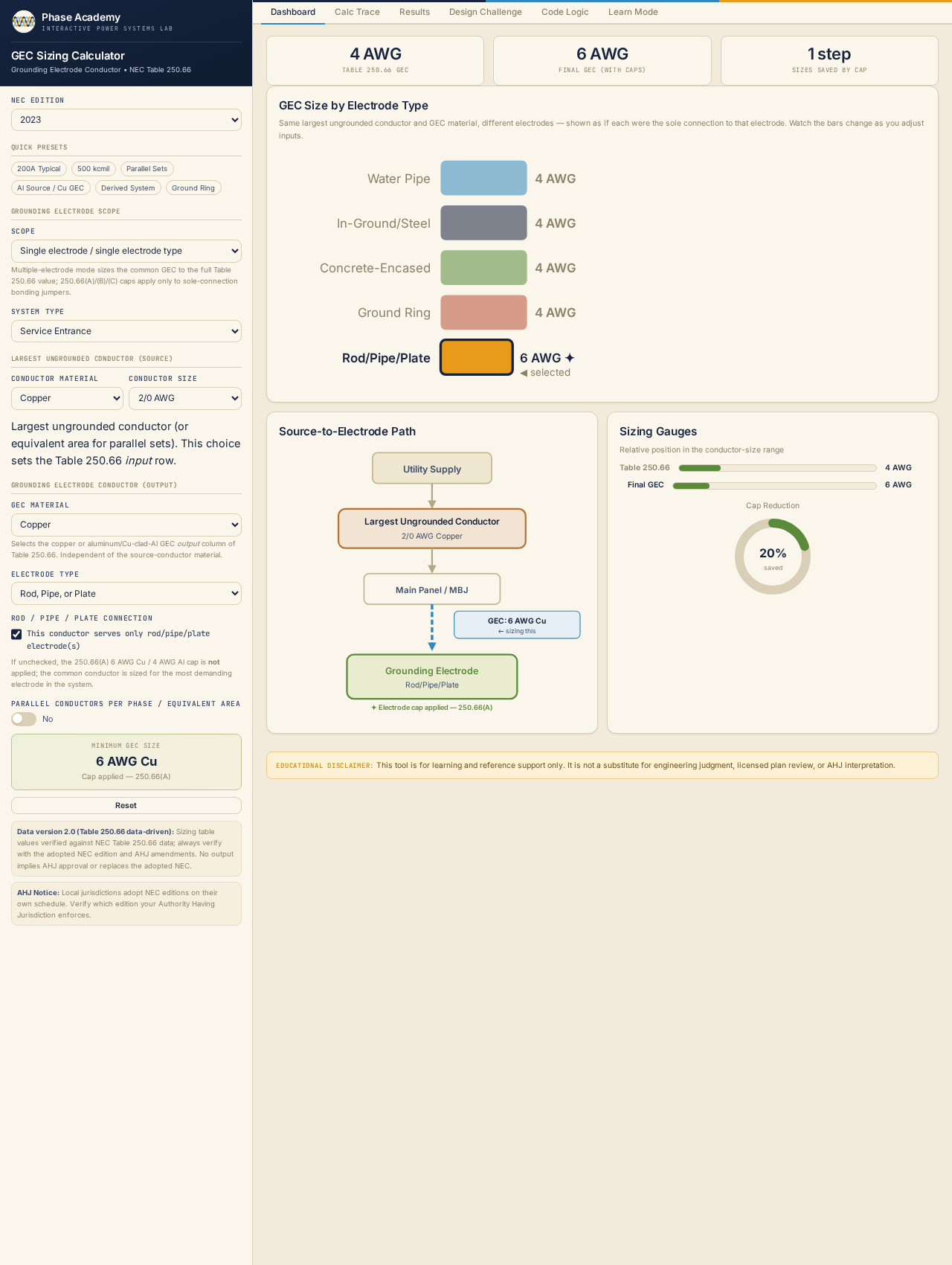

A live look at the app you'll launch — every control on the left drives the visualizations on the right in real time.

Example data — not a real field report

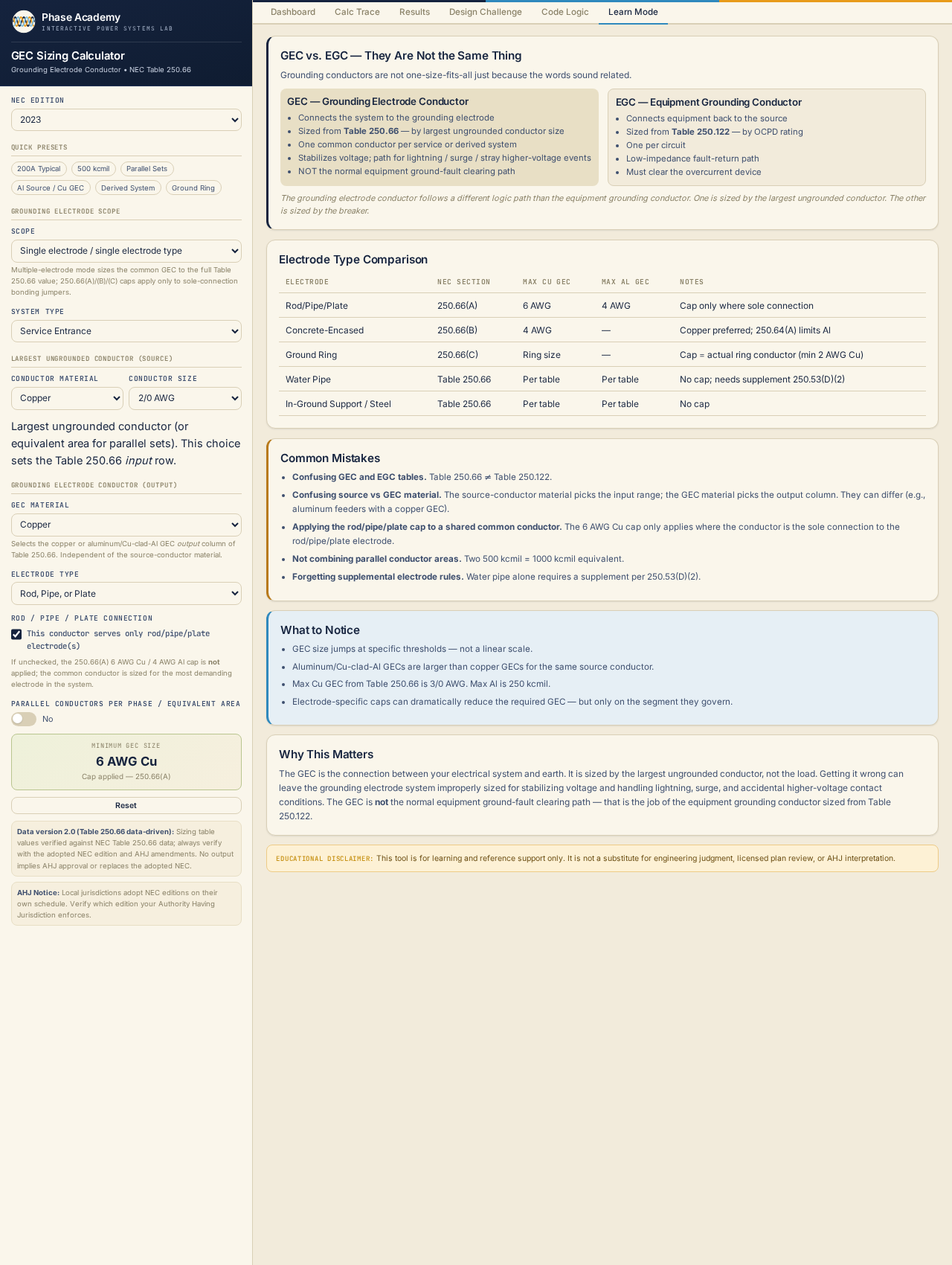

Enlarge

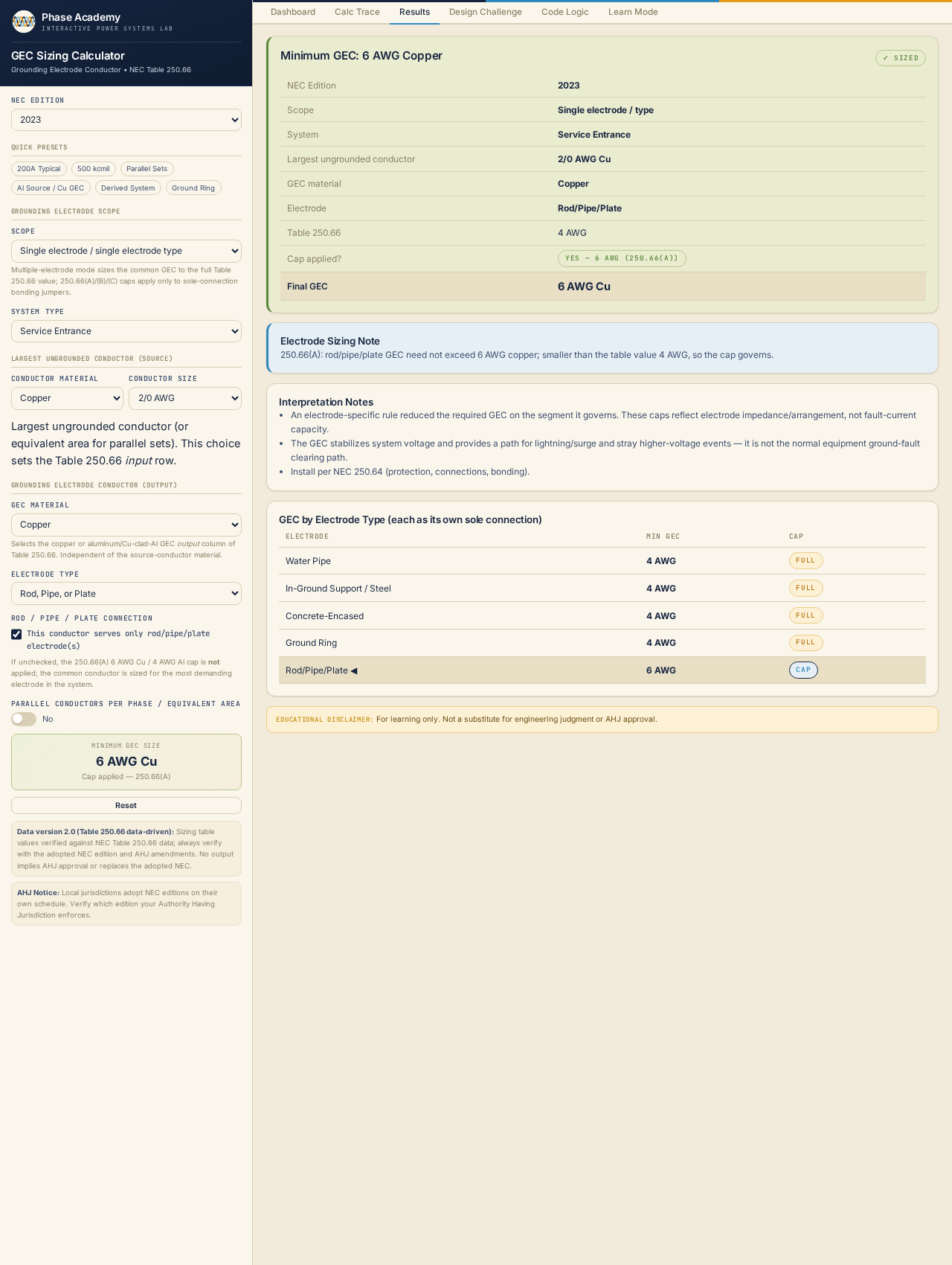

Enlarge

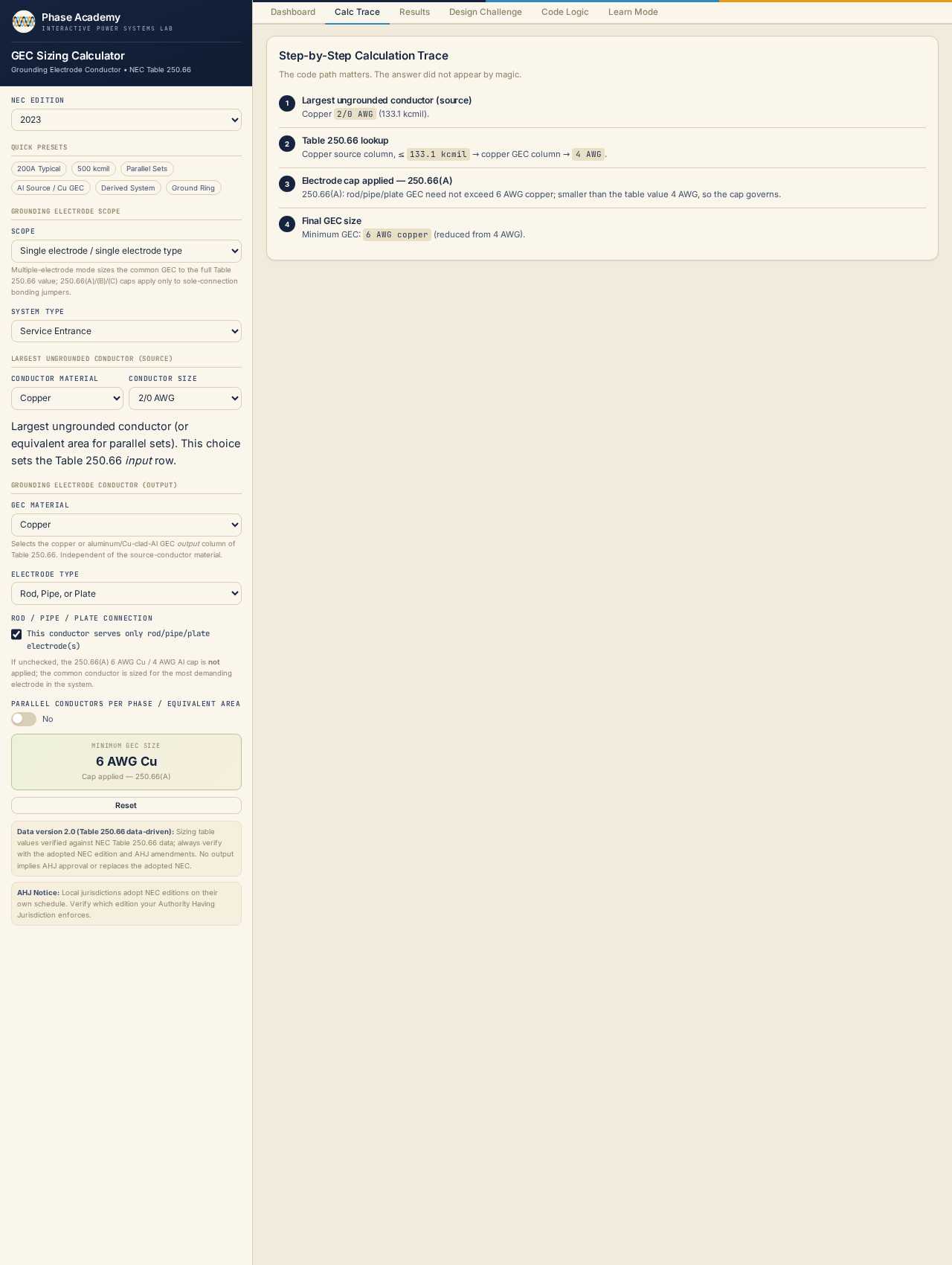

Enlarge

Enlarge

Enlarge

Enlarge

• 01Look up the GEC size from NEC Table 250.66 given the largest service-entrance or feeder conductor size and explain why the GEC is sized from the source conductor, not the load
• 02Apply the 250.66(A) exception for rod, pipe, or plate electrodes and explain why a GEC connecting only these electrode types need not exceed 6 AWG copper or 4 AWG aluminum
• 03Apply the 250.66(B) exception for concrete-encased electrodes and explain the physical basis for the 4 AWG copper cap
• 04Apply the 250.66(C) exception for ground rings and explain the relationship between the ring conductor size and the GEC
• 05Size the GEC for a parallel service where the source conductors run in multiple sets and explain why the combined cross-sectional area — not the individual conductor — drives the GEC size
• 06Explain the GEC sizing difference between a service entrance (250.66) and a separately derived system, and identify the conductor used as the sizing basis for each

• —Not a design document, stamped calculation, or approval record.
• —Not a substitute for engineering analysis by a licensed professional.
• —Not a reproduction of NEC tables — values are computed and cited, and you must verify against the code edition enforced in your jurisdiction.
• —Not connected to live equipment and not a safety device.
