Dwelling Unit Load Calculator

Calculate dwelling service load using all three NEC Article 220 methods — Standard (220.82 Part III), Optional (220.82), and Existing Dwelling (220.83) — with side-by-side comparison, service size ladder, and five preset scenarios including an undersized service case.

AVAILABLEAUTOMATED CHECKS ONLYSTANDARDS-AWAREBEGINNERNECWHAT DO THESE STATUSES MEAN?

NEC • ART. 2203 CALCULATION METHODSSIDE-BY-SIDE COMPARE100–400 A SERVICE LADDER

Launch lab Sign in to bookmark Report an issue with this lab Try a guided scenario

Overview

Dwelling unit service sizing is one of the most common NEC calculations performed by residential contractors and engineers — and one of the most frequently misapplied because NEC Article 220 provides three distinct methods that can produce meaningfully different results for the same home. This calculator runs all three in parallel: the Standard Method (NEC 220 Part III — general lighting at 3 VA/ft², appliance branch circuits, range demand from Table 220.55, dryer demand from 220.54, and heating/cooling with noncoincident rule), the Optional Method (NEC 220.82 — simplified two-tier demand factor approach for new dwellings), and the Existing Dwelling Method (NEC 220.83 — used when adding load to an existing service). Inputs are slider-based for rapid exploration: square footage (400–6,000 ft²), water heater VA (0–9,000), range/oven VA (0–20,000), dryer nameplate VA (0–12,000), cooling/AC VA (0–20,000), and electric resistance heat VA (0–40,000). The Results tab shows a Service Utilization gauge for the currently active method against a user-selected service size (100–400 A), a Load Composition chart, a Method Comparison summary, and a Service Size Ladder. The Trace tab provides separate step-by-step traces for each of the three methods. A Method Comparison Summary card shows all three results side by side and identifies when the Optional Method produces a more favorable result — typical for small to medium all-electric homes. Five presets cover Small, Medium, Large All-Electric, Optional-Favorable, and Undersized service scenarios. A Design Challenge tab and a Self-Test engine harness are included. Supports NEC 2017, 2020, and 2026.

App preview

A live look at the app you'll launch — every control on the left drives the visualizations on the right in real time.

Inside the lab

Example data — not a real field report

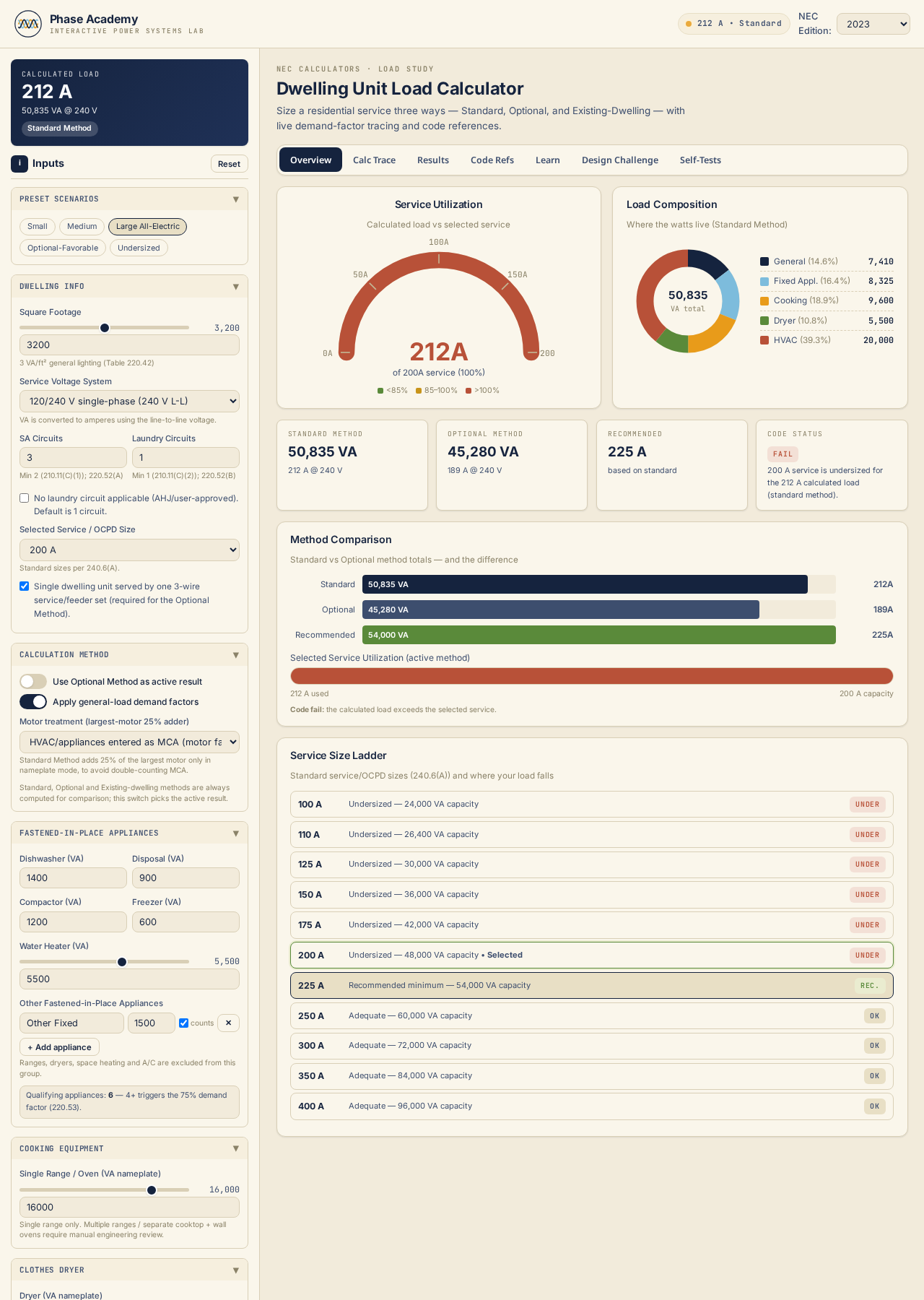

Overview inputs with dwelling presets — Overview — enter floor area, appliance list, HVAC, range, dryer, and EV loads for a dwelling, or load a preset (Small, Typical, Large All-Electric) to see how the three NEC 220 methods differ on the same house.

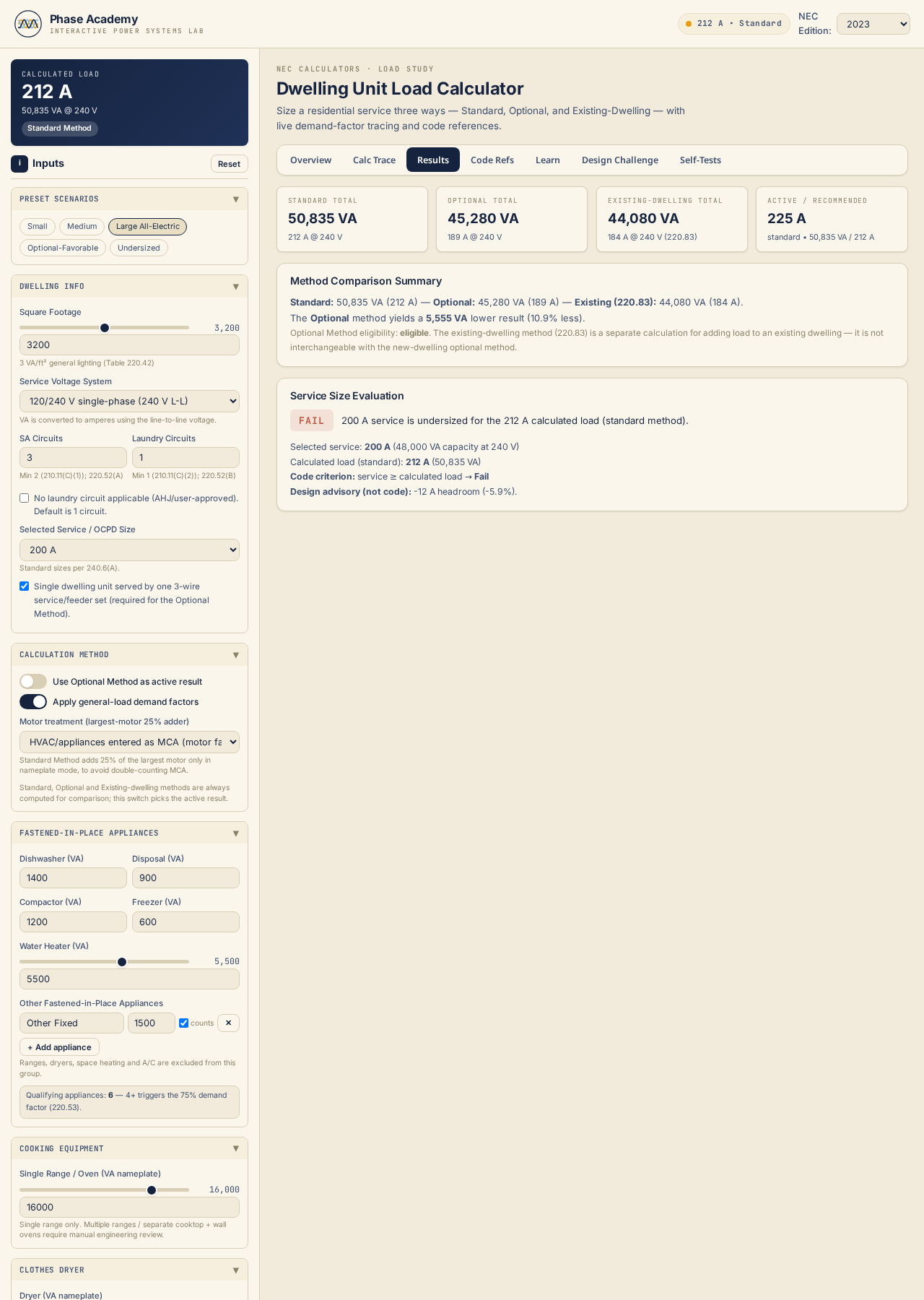

Results with service size ladder — Results — side-by-side calculated demand for the Standard (220 Part III), Optional (220.82), and Existing (220.83) methods, plus a service-size ladder that highlights the minimum standard service that satisfies all applicable methods.

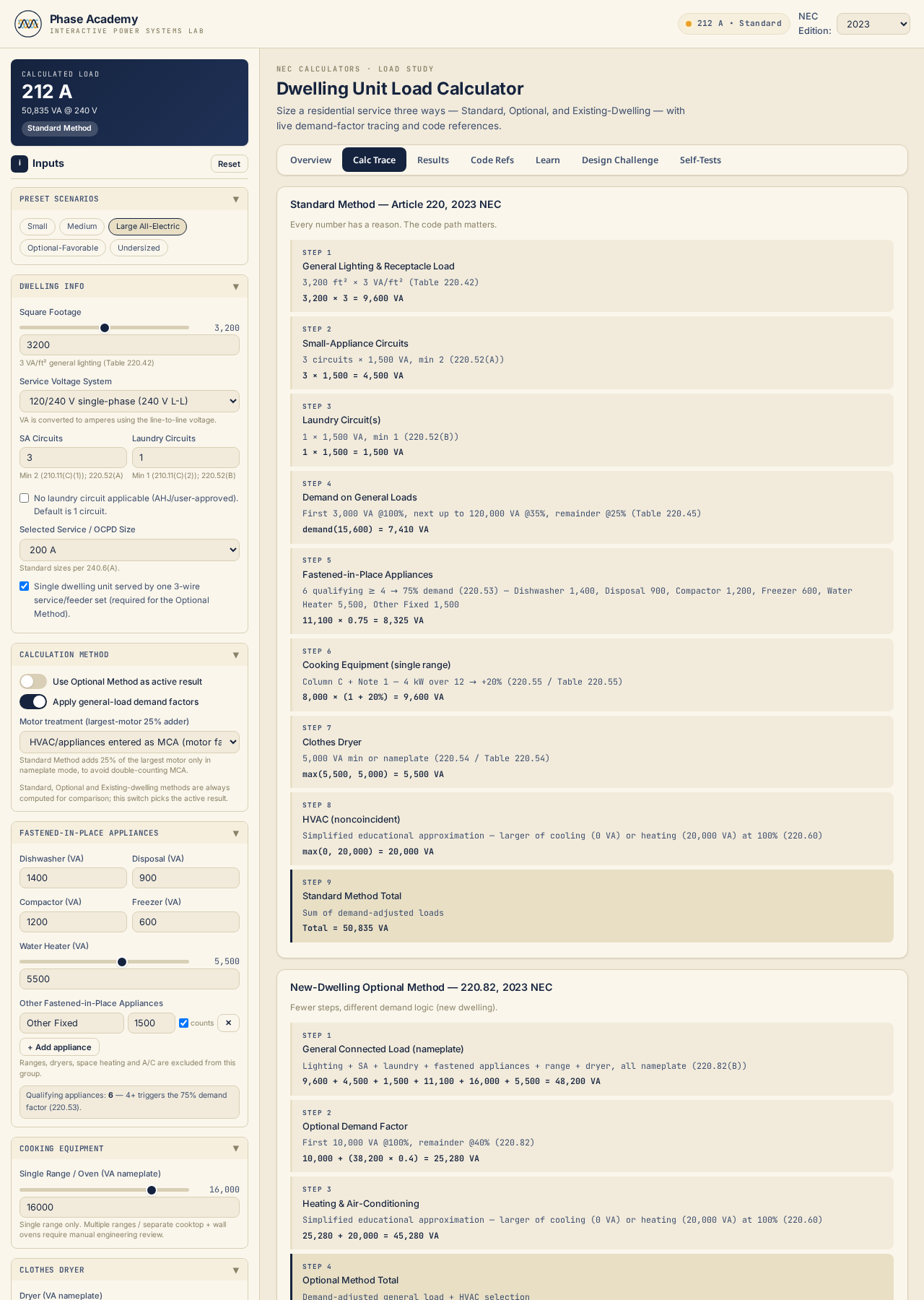

Step-by-step NEC calculation trace — Calc Trace — every line item printed with its NEC citation: general lighting VA/ft² from 220.12, small-appliance and laundry branch loads from 220.52, appliance demand from 220.53, range demand from Table 220.55, dryer demand from 220.54, and HVAC from 220.60.

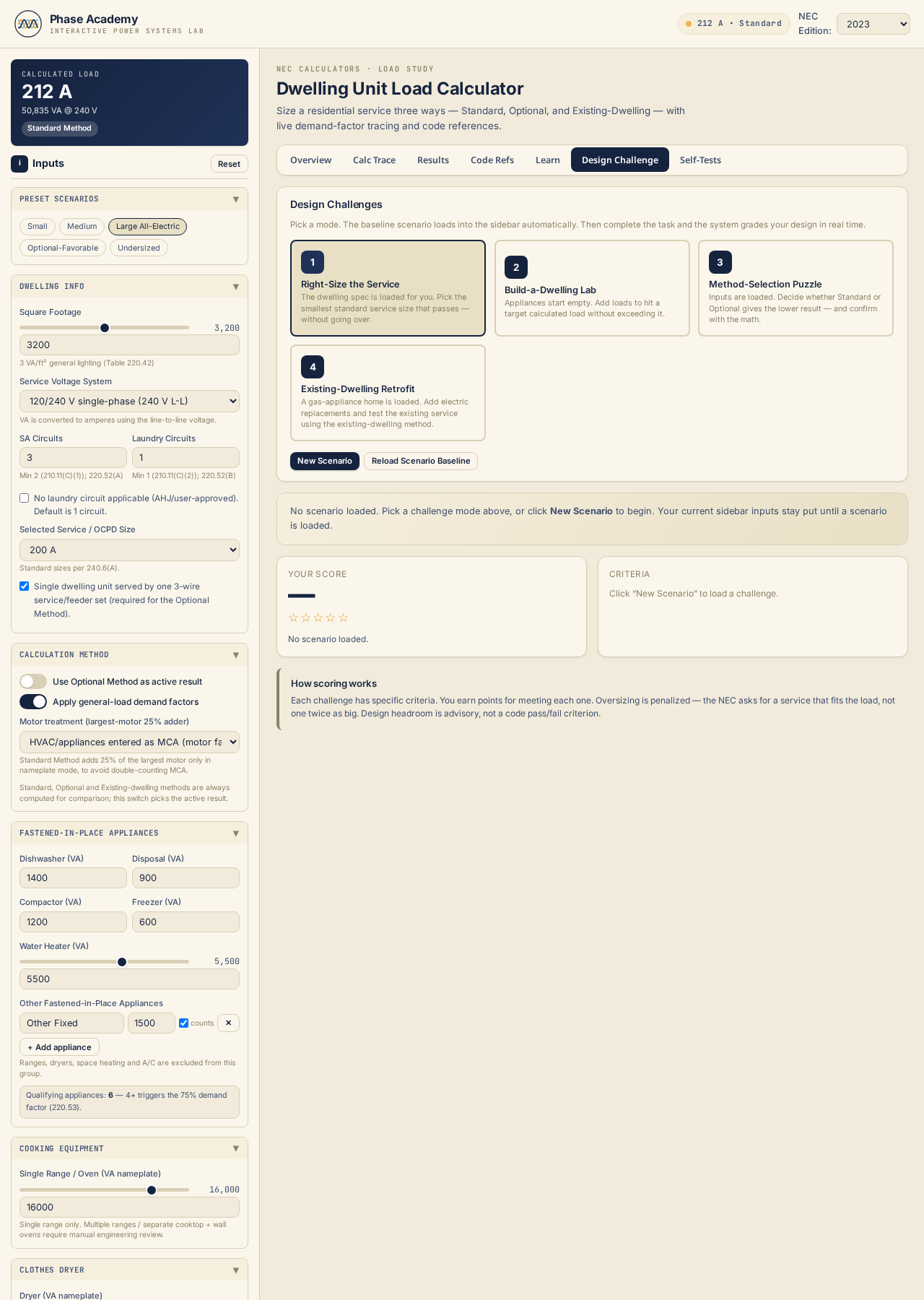

Design challenge mode — Design Challenge — randomized dwelling scenarios ask you to pick the minimum compliant service size; your answer is graded against all three 220 methods with a diff of which loads drove the result.

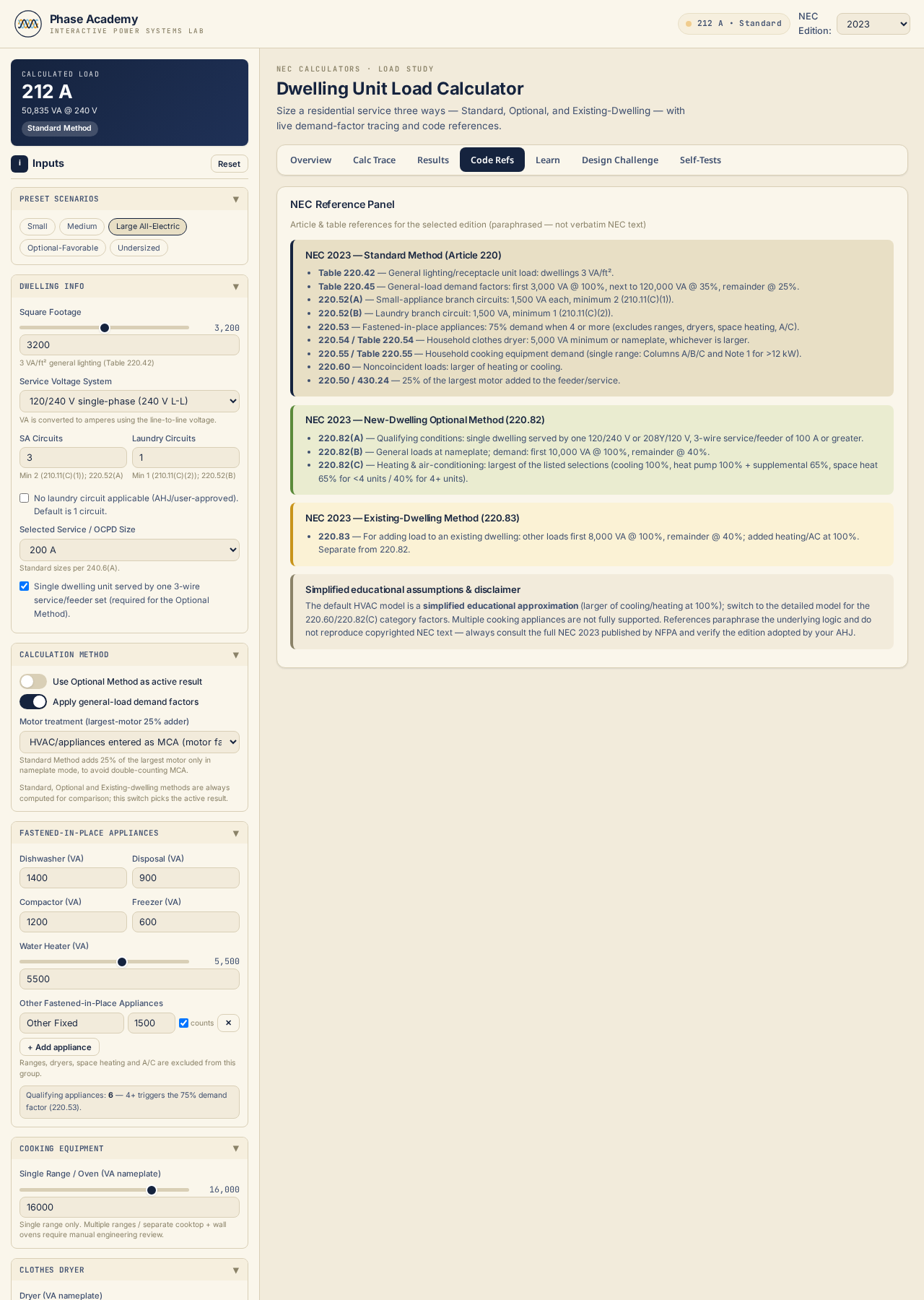

Code references summary — Code Refs — the exact NEC 2017/2020/2026 sections used (220.12, 220.52, 220.53, 220.54, 220.55, 220.60, 220.82, 220.83) with the specific demand factors pulled for your inputs so the calculation is verifiable by hand.

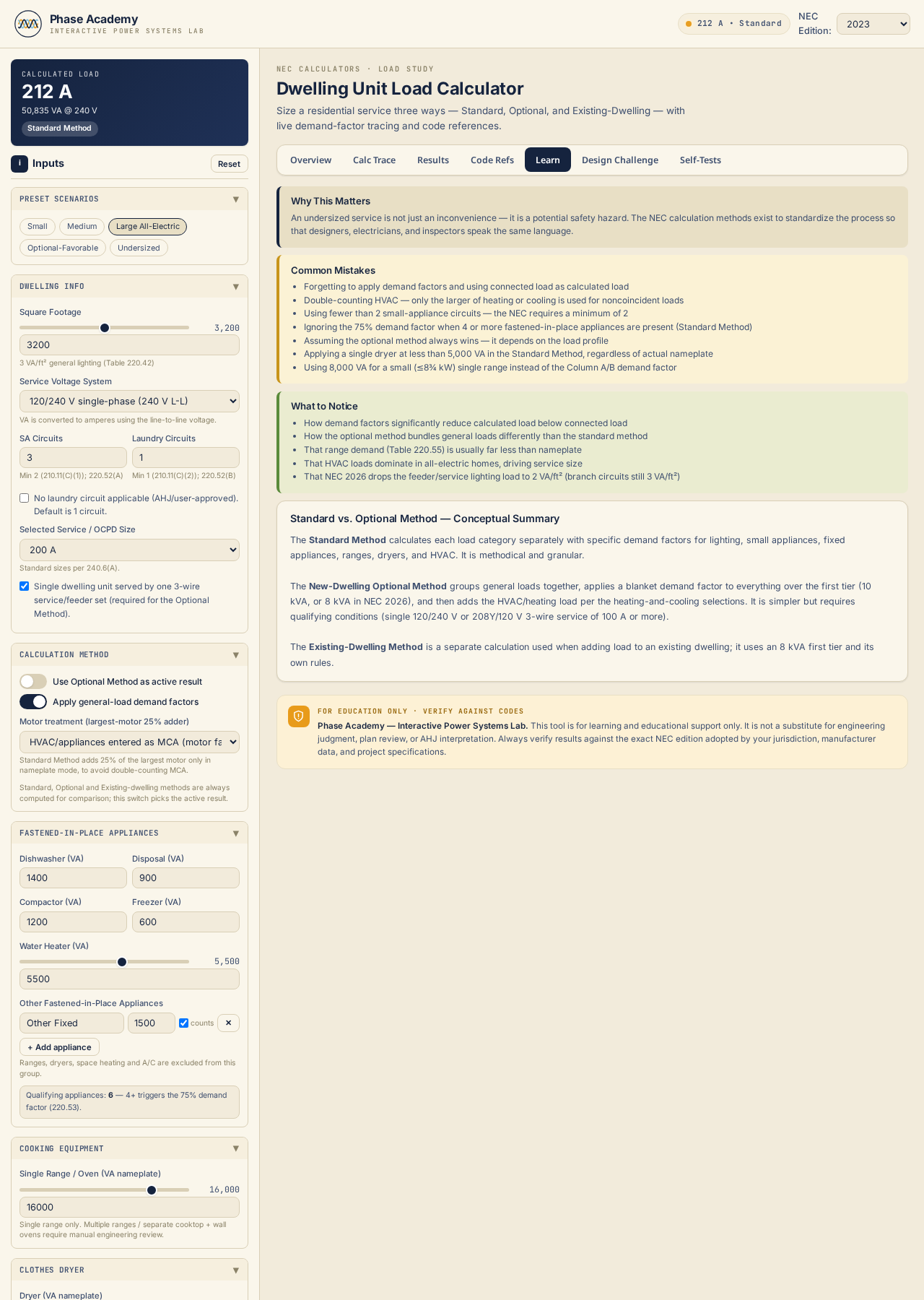

Learn and quiz on dwelling load calc — Learn — when to use Standard vs. Optional vs. Existing-dwelling methods, why the Optional method almost always yields a smaller service, and the common mistakes around range, dryer, and HVAC largest-motor rules.

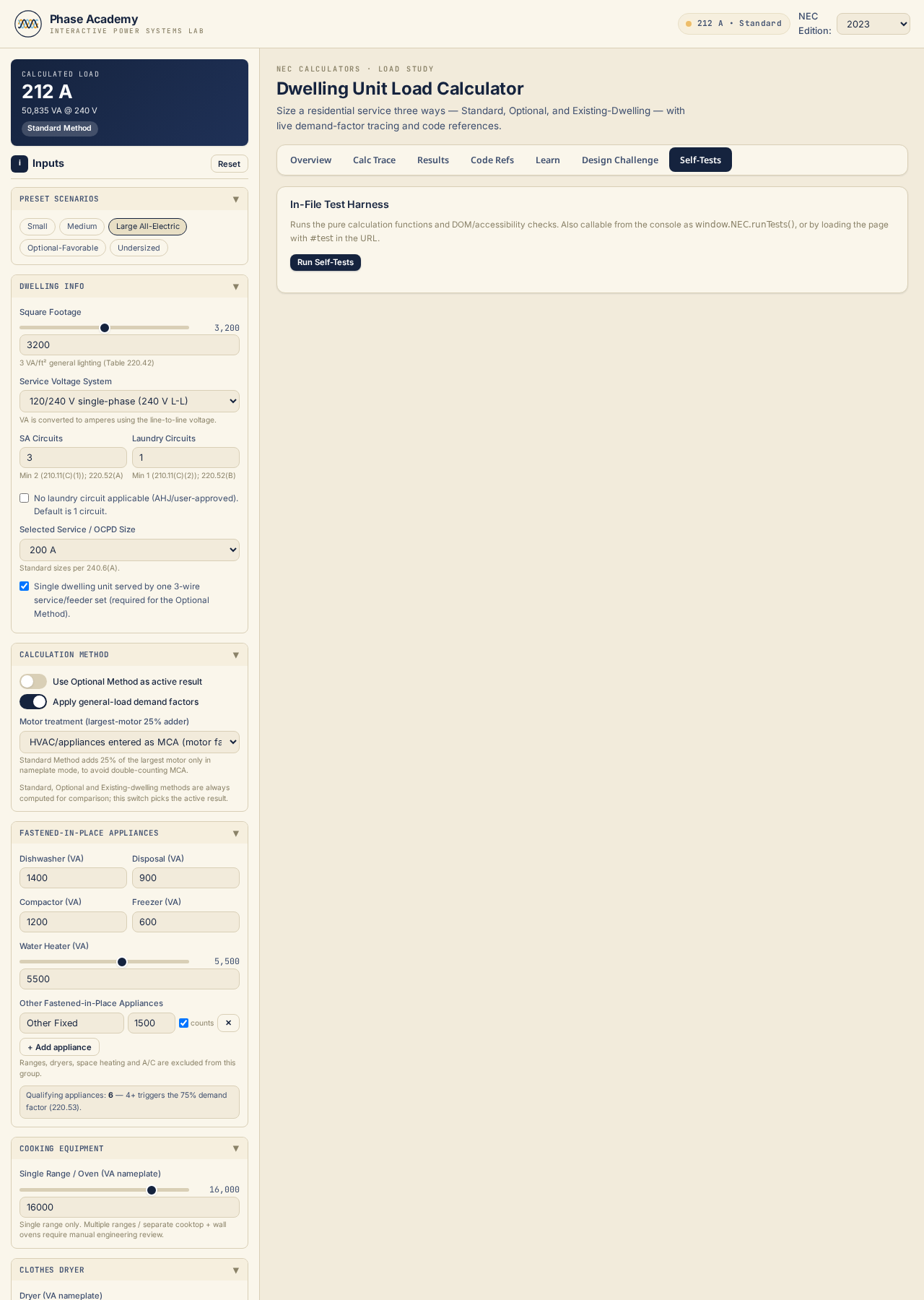

Deterministic self-test harness — Self-Tests — a deterministic test harness runs the calculation logic against known-answer dwellings (small, typical, large all-electric, edge cases) so you can verify the tool matches worked examples in the code and textbooks.

What you'll do

01Apply the NEC Standard Method under Article 220 Part III to a single-family dwelling, calculating general lighting load, small appliance branch circuits, range demand, dryer demand, and HVAC loads in sequence
02Apply the Optional Method under NEC 220.82 to the same dwelling and explain when it produces a lower calculated load than the Standard Method
03Identify when the Existing Dwelling Method under NEC 220.83 applies and explain what additional load information is required that is not needed for new-dwelling calculations
04Apply the range demand factor from NEC Table 220.55 to a nameplate VA value and explain why demand factors are permitted for ranges
05Apply the noncoincident load rule under NEC 220.60 to heating and cooling loads and determine which is included in the dwelling service calculation
06Use the Service Size Ladder and Method Comparison Summary to select the minimum standard service size that satisfies all three NEC methods for a given dwelling configuration

Try a guided scenario

Work a single-family dwelling from general lighting through appliances to service size.

Dwelling unit load calculation · NEC Calculation Practice

No sign-in required. Progress is saved on this device.

What this lab is not

Not a design document, stamped calculation, or approval record.
Not a substitute for engineering analysis by a licensed professional.
Not a reproduction of NEC tables — values are computed and cited, and you must verify against the code edition enforced in your jurisdiction.
Not connected to live equipment and not a safety device.

Calculation basis

References NEC. Results are computed from the entered inputs and cited back to the referencing clause or table number — no code text or table is reproduced verbatim.

Simplifying assumptions are stated in the lab itself; where a model is intentionally conceptual, the lab says so rather than implying study-grade accuracy.

Standards basis: Standards-aware. Validation state: Automated checks only (last checked 2026-08-15).
