NETA testing is not just “meggering equipment” or filling out a checklist. It is a structured way to answer a serious question before, during, and after equipment is placed in service:
NETA, the InterNational Electrical Testing Association, publishes ANSI/NETA standards used for electrical power equipment testing. The major documents include ANSI/NETA ATS-2025 for acceptance testing, ANSI/NETA MTS-2023 for maintenance testing, and ANSI/NETA ECS-2024 for electrical commissioning.
1. The big idea
A power system is a chain.
Power leaves a source, passes through conductors, bus, switches, breakers, transformers, protective devices, metering, grounding paths, control circuits, and finally reaches the load. Every link in that chain has to do its job.
A NETA-style test program checks the links before they are trusted.
A new electrical installation is not automatically “good” just because it is new. New equipment can be damaged in shipping, cables can be pulled too hard, lugs can be under-torqued, CTs can be wired backwards, and relay settings can be wrong.
An old installation is not automatically “bad” just because it is old. But age, heat, vibration, moisture, contamination, and fault duty change equipment condition over time.
NETA testing exists to replace assumptions with evidence.
2. What “NETA testing” means
In everyday field language, people say “NETA testing” as if it is one test. It is not. It is a family of inspections, measurements, functional checks, and documentation practices applied to power equipment.
| Type | When it happens | Main question |
|---|---|---|
| Acceptance testing | Before new or modified equipment is energized or finally accepted | Was this equipment installed correctly and is it ready for service? |
| Maintenance testing | After equipment has already been in service | Is this equipment still suitable for continued service, and how is it aging? |
The same equipment may be tested under both ideas at different times. The first test establishes a baseline. Later tests show whether the equipment is aging normally or developing problems.
3. The plainspoken version
NETA testing verifies six basic things:
- It is the right equipment.
- It is assembled correctly.
- It is insulated correctly.
- It can carry current.
- It will respond to faults.
- It creates a useful record.
That last point matters more than beginners usually realize. A good test report is not just a pass/fail sticker. It is a snapshot of equipment health at a moment in time.
4. Why visual inspection matters so much
Beginners often assume the “real” test is the one with the expensive instrument. In the field, many of the most important discoveries happen before the test leads are connected.
A visual and mechanical inspection asks: does the installation physically make sense?
- Equipment nameplate ratings
- Voltage class and continuous current rating
- Interrupting rating, CT/PT ratios, and relay settings
- Transformer kVA, impedance, and tap position
- Cable size, type, supports, and terminations
- Grounding, bonding, barriers, labels, shutters, and interlocks
- Moisture, rust, dust, tracking, or contamination
- Racking mechanism and drawout cell condition
The lesson: electrical health is not only about insulation readings. It is also about design intent, mechanical condition, safety features, and correct assembly.
5. Acceptance testing versus maintenance testing
Acceptance testing: “Was it born and installed correctly?”
- Shipping damage
- Manufacturing defects
- Installation errors
- Incorrect torque, wiring, CT polarity, or relay settings
- Wrong transformer tap position or phase rotation
- Breakers or switches that do not operate smoothly
Maintenance testing: “How is it aging?”
- Insulation aging
- Moisture intrusion and contamination
- Loose connections and heating damage
- Contact wear and breaker mechanism wear
- Relay calibration drift and battery degradation
- Abnormal trends compared with previous results

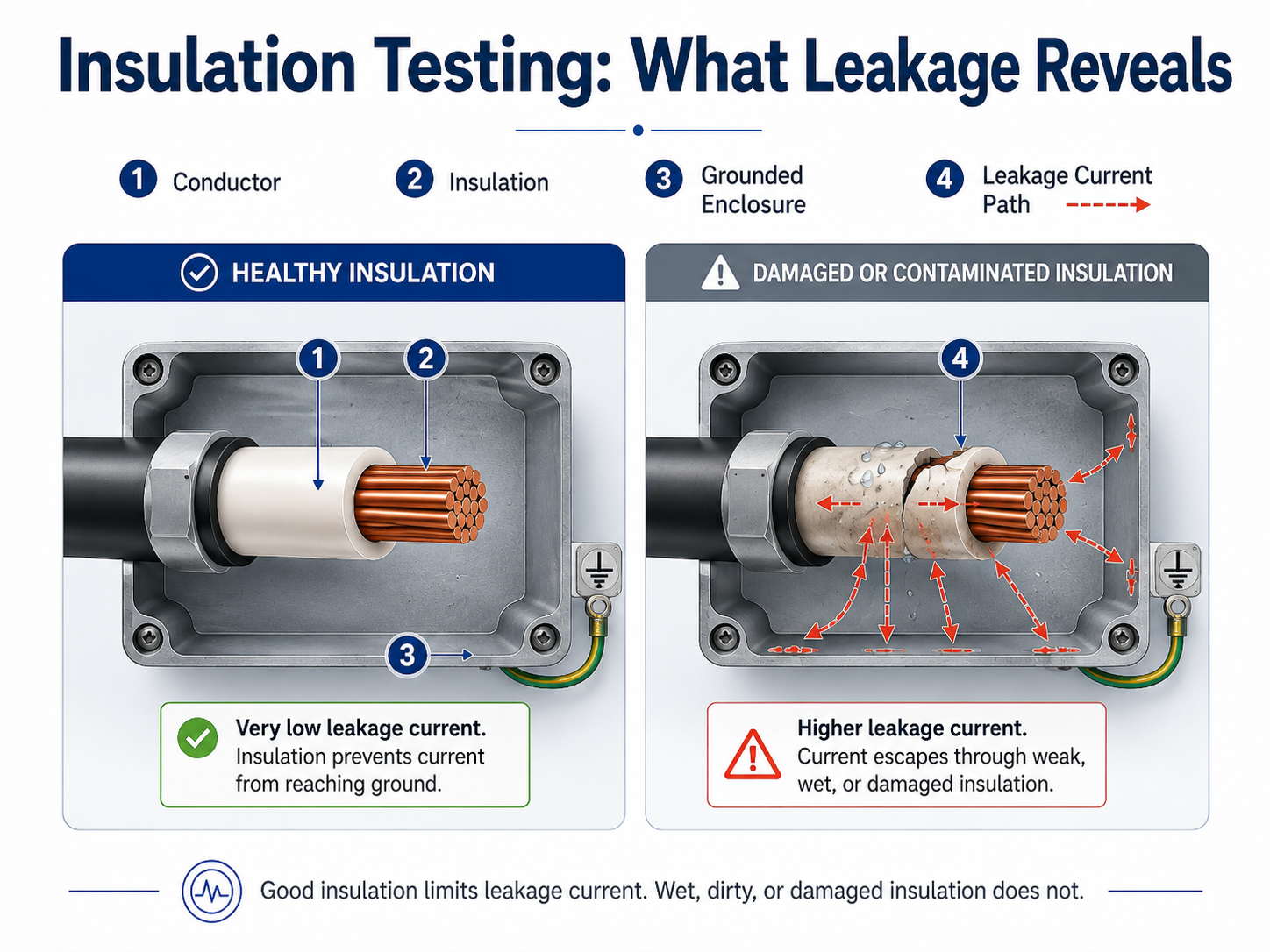

6. What insulation testing is really checking
Insulation is the material that keeps energized conductors from touching other conductors, grounded metal, or people. Good insulation leaks very little. Wet, dirty, cracked, carbonized, overheated, or aged insulation leaks more.
Imagine a water pipe. The conductor is the pipe carrying water. The insulation is the pipe wall. Electrical insulation testing is looking for the electrical version of seepage before it becomes a burst.
The electrical model
Insulation behaves like a very large resistor in parallel with a capacitor. When test voltage is applied, the insulation charges like a capacitor and a small leakage current flows through or across the insulation.
Insulation resistance testing
Apply DC voltage between a conductor and ground, or between conductors, and measure how much leakage current flows. High resistance usually suggests dry, clean, intact insulation. Low resistance may suggest moisture, contamination, damage, improper terminations, or connected equipment that should have been isolated.
But insulation resistance is not magic. Temperature, humidity, cable length, equipment size, surface contamination, test duration, and isolation condition all matter.
Polarization index and dielectric absorption
Some insulation tests look at how resistance changes over time. Healthy insulation often shows increasing resistance over time as charging current decays. Wet or contaminated insulation may not show the same improvement.
Dielectric withstand, power factor, and tan delta
A dielectric withstand test asks whether the insulation can survive a specified voltage stress without breaking down. Power factor and tan delta testing ask whether the insulation is becoming more lossy — more like a sticky shock absorber than a clean spring.

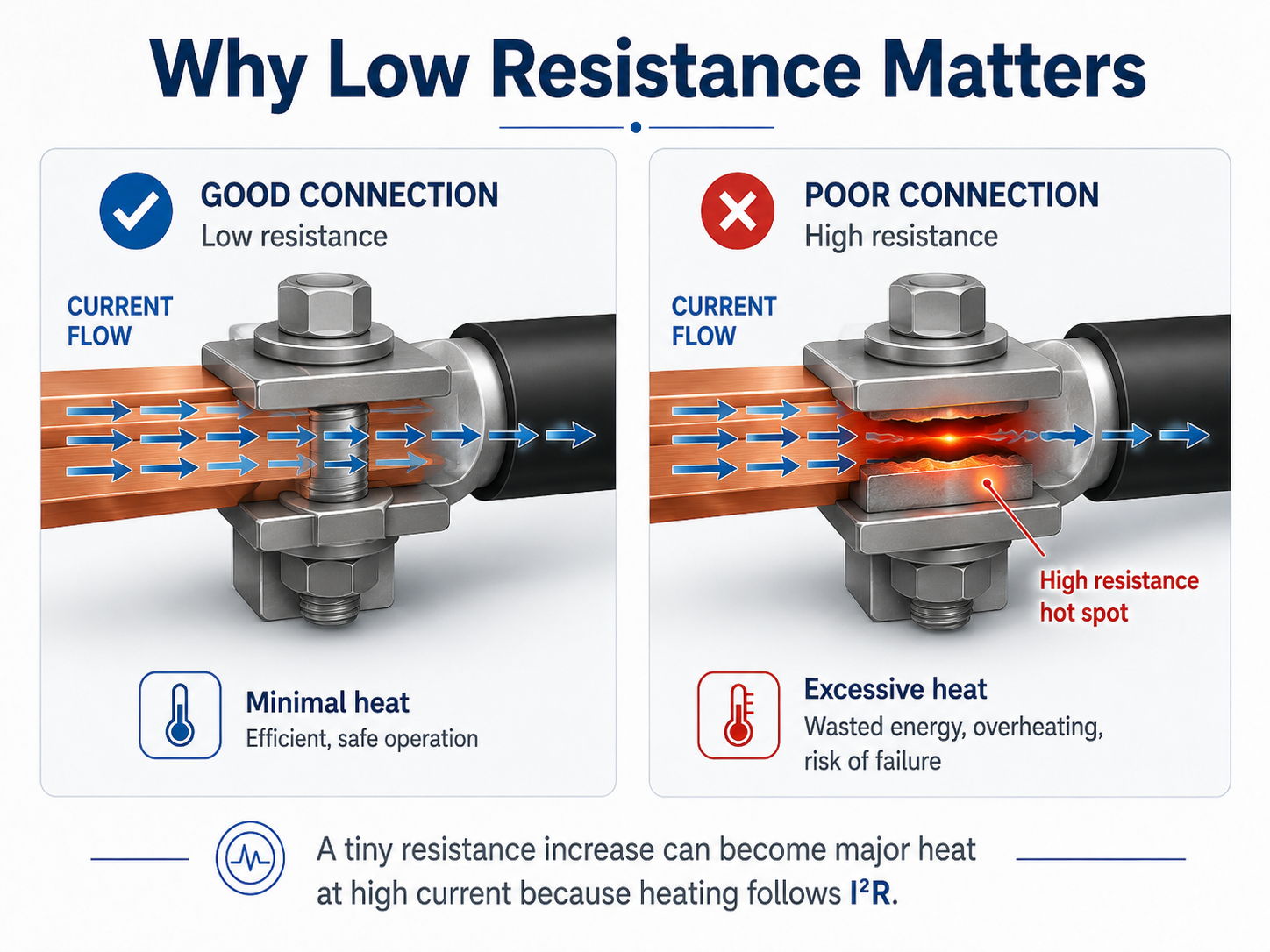

7. What low-resistance testing is really checking
Power circuits are supposed to have very low resistance where current is meant to flow.
- Cable terminations
- Bolted bus joints
- Breaker contacts
- Switch contacts
- Fuse clips and disconnect blades
- Ground bonds and transformer winding connections
A small amount of unwanted resistance can create a large amount of heat.
Heat produced by resistance = I²RThat square on current is the killer. If current doubles, heating increases by four times. If current increases by ten times, heating increases by one hundred times.
This is why NETA-style testing often includes low-resistance measurements using instruments capable of measuring micro-ohms. A normal handheld multimeter may not be sensitive enough to distinguish a good high-current joint from a bad one.
Why torque alone is not enough
Torque verifies mechanical clamping force. Low-resistance testing verifies electrical continuity under the test condition. Both matter.
8. What protective device testing is really checking
Protective devices are the nervous system of a power system.
A protective system has three basic jobs:
- Sense the problem.
- Decide what to do.
- Trip the correct device.
In real equipment, that chain may include CTs, PTs or VTs, protective relays, trip units, control power transformers, DC station batteries, trip coils, lockout relays, auxiliary contacts, breaker mechanisms, communication links, and interlocks.
Relay testing
Relay testing verifies correct model, settings, CT/VT ratios, wiring, logic, time delay, targets, outputs, and trip path.
Primary injection and secondary injection
Secondary injection tests the “brain.” Primary injection tests more of the “body and nerves.” Both have value depending on the test objective.
Breaker trip testing
A breaker is not just a switch. It is a mechanical device that must open under fault conditions, often after sitting still for months or years.
9. What transformer testing is really checking
Transformer testing asks several different questions.
Are the windings connected correctly?
A turns ratio test compares the voltage ratio between primary and secondary windings.
Are the windings electrically continuous and balanced?
Winding resistance testing looks for loose internal connections, tap changer issues, open strands, and imbalance between phases.
Is the insulation healthy?
Tests may include insulation resistance, power factor, excitation current, oil dielectric, dissolved gas analysis, and bushing tests.
Does the transformer match the system?
Testing also verifies kVA rating, voltage, phase, vector group, impedance, tap setting, grounding, and cooling devices.

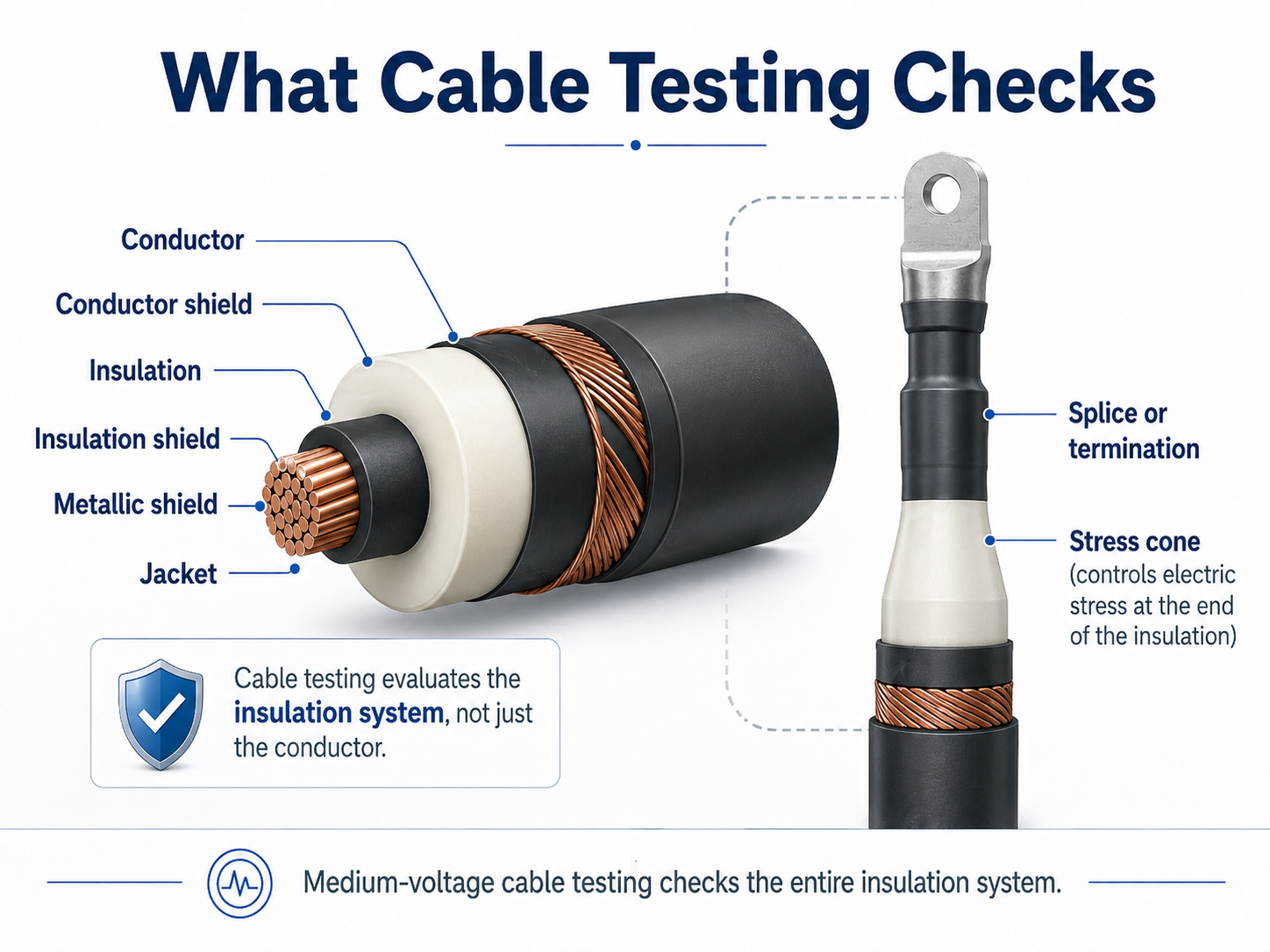

10. What cable testing is really checking
Cable testing asks whether the cable can withstand voltage stress and whether its insulation, shields, splices, and terminations are behaving correctly.
Low-voltage cable checks
Continuity, phasing, insulation resistance, and functional load checks confirm the cable was installed correctly and not damaged.
Medium-voltage cable checks
Insulation resistance, shield continuity, withstand tests, VLF, tan delta, offline partial discharge, and jacket tests each reveal different parts of the condition picture.
11. What grounding and bonding tests are really checking
Grounding connects a system to earth. Bonding connects conductive parts together so they remain at nearly the same voltage and provide an effective fault-current path.
Grounding and bonding tests ask whether grounds are continuous, bonding jumpers are installed, ground bus connections are tight, ground electrodes are connected, and neutral-ground bonds are located correctly.
12. What switchgear and switchboard testing is really checking
Switchgear and switchboards are organized systems that distribute power, isolate faults, and protect people working around equipment.
- Bus insulation and bus joint integrity
- Breaker or switch operation
- Protective device settings and control power
- CT/VT circuits, relays, interlocks, and racking mechanisms
- Grounding, labels, shutters, and enclosure condition
Functional testing asks whether the gear behaves as a system: does the breaker trip from the relay, do interlocks block unsafe operation, and does local/remote control match actual device status?
13. What motor control center testing is really checking
Motor control centers combine power distribution, motor starters, overload protection, control circuits, and sometimes VFDs. Testing verifies bus condition, starter bucket condition, stab engagement, overload settings, control transformer output, grounding, phase rotation, and interlocks.
14. What battery and control power testing is really checking
Protection systems often depend on control power. In substations and switchgear lineups, that may come from a DC battery system that must operate even when AC power is lost.

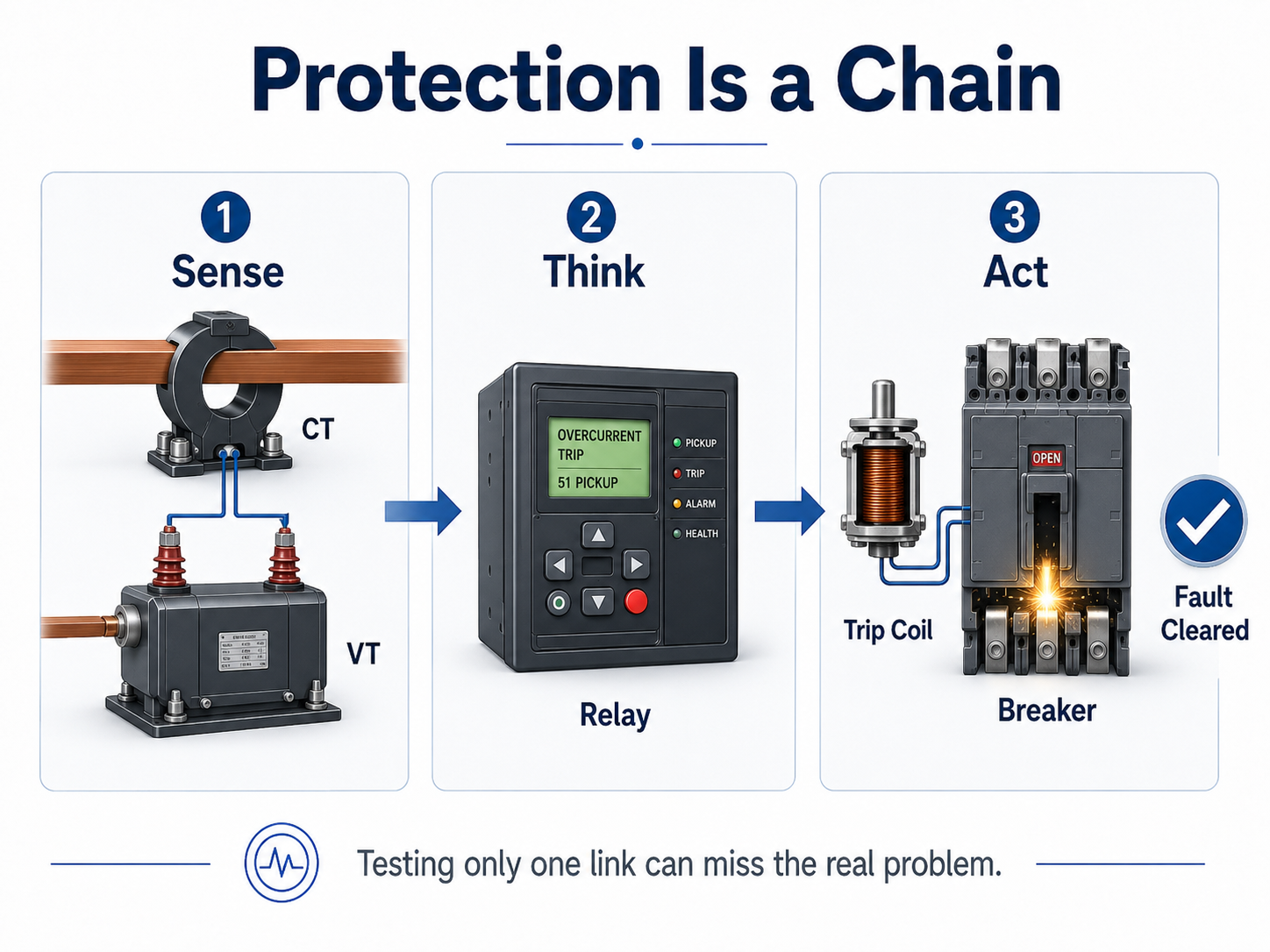

15. The “sense-think-act” model
A useful way to understand NETA testing is to divide a power system into three parts.
Sense
CT ratio and polarity, VT ratio and polarity, temperature sensors, pressure switches, and breaker position contacts.
Think
Protective relay settings, trip unit settings, PLC logic, transfer scheme logic, and alarm logic.
Act
Breakers trip, lockout relays operate, contactors drop out, transfer switches move, alarms sound, and SCADA points change state.
16. Common defects NETA testing finds
- Loose or high-resistance connections
- Damaged insulation
- Incorrect CT polarity
- Wrong relay settings
- Breaker mechanism problems
- Transformer tap errors
- Missing or poor bonding
- Control circuit mistakes
17. What a passing test does and does not mean
A passing NETA test means the equipment met the acceptance criteria used for that test at the time of testing.
It does not mean the equipment can never fail, the design is perfect, every code requirement is satisfied, or future testing can be skipped.
Testing reduces uncertainty. It does not eliminate it.

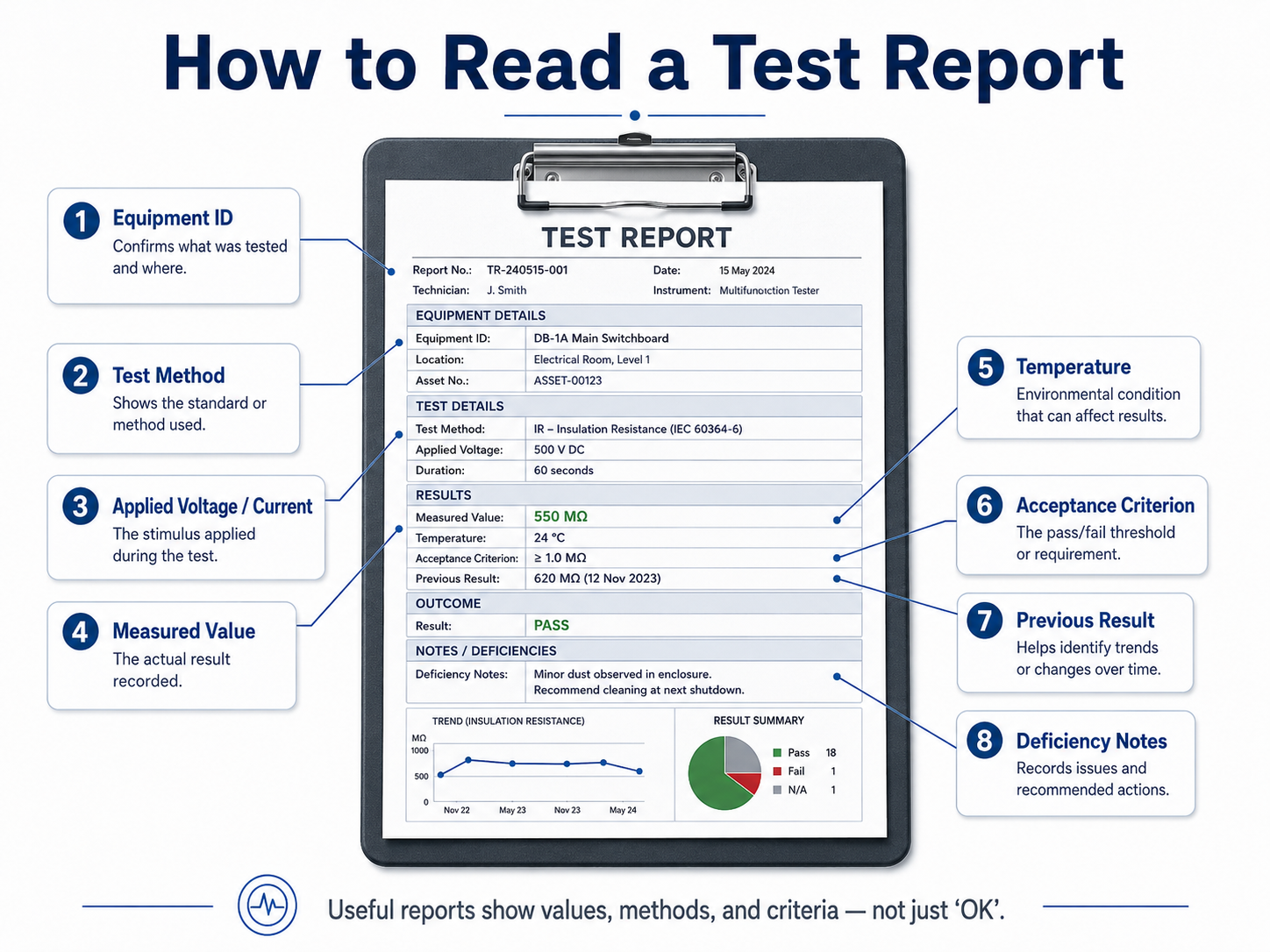

18. How to read a NETA-style test report
A useful report should tell a story.
At minimum, look for:
- Equipment identification and location
- Nameplate data
- Test date and technician or company
- Test instrument model, serial number, and calibration information
- Environmental conditions, where relevant
- Test method and connections
- Applied voltage or current
- Measured and corrected values
- Acceptance criteria and previous results
- Deficiencies, recommended actions, and retest results after repair
19. Beginner-to-advanced examples
Loose bus joint
Beginner view: it can spark or heat up. Intermediate view: contact resistance rises and heating follows I²R. Advanced view: thermal cycling, oxidation, trend, and load context all matter.
Cable insulation damage
Beginner view: the covering has to keep electricity from leaking out. Advanced view: different cable diagnostics reveal different aging modes and should not be treated as interchangeable.
Relay trips the wrong breaker
Settings review alone may not catch wiring or logic errors. Functional testing is necessary.
Transformer ratio mismatch
Ratio deviation can point to wrong tap position, shorted turns, winding damage, incorrect connections, or drawing mismatch.
20. A practical equipment-by-equipment map
Switchgear and switchboards
Ratings, physical condition, insulation, bus integrity, settings, interlocks, trip paths, alarms.
Circuit breakers
Insulation integrity, contact resistance, trip unit operation, timing, coils, auxiliary contacts.
Transformers
Turns ratio, tap position, winding resistance, insulation, oil condition, bushings, alarms.
Cables
Continuity, phase identification, insulation condition, shield continuity, termination quality, aging indicators.
Protective relays and trip units
Settings, pickup values, timing, inputs, outputs, logic, communication schemes.
Grounding systems
Continuity of bonding paths, ground electrode connections, ground resistance, neutral-ground bond correctness.
Motors and motor control
Winding insulation, starter operation, overload settings, grounding, VFD wiring and settings.
21. The baseline concept
One of the most valuable products of acceptance testing is the baseline — the birth certificate of the equipment in its installed condition.
Later maintenance testing asks whether insulation resistance decreased, contact resistance increased, breaker timing slowed, battery impedance increased, or relay timing drifted.
22. The most important mental model: normal current versus fault current
Electrical equipment has to survive two very different worlds: normal current and fault current.
Normal current
Testing asks whether conductors are sized correctly, joints are low resistance, cooling systems work, and loads are balanced.
Fault current
Testing asks whether protective devices will detect the fault, trip fast enough, trip the correct device, and interrupt or withstand the available fault current.
23. Why “installed correctly” is a testable claim
Installation quality can be tested. Cable damage, poor lugs, backward CTs, wrong phase rotation, and breaker seating problems all leave measurable evidence.
24. What NETA testing does not replace
It does not replace engineering design, code compliance, manufacturer instructions, arc-flash studies, short-circuit studies, coordination studies, qualified safety procedures, lockout/tagout, preventive maintenance, or operator training.
25. Field note: the three ways equipment fails
1. Insulation failure
Current goes somewhere it should not go.
2. Conduction failure
Current cannot flow properly where it should flow.
3. Control/protection failure
The system does not respond correctly.
Insulation: current stays where it should. Conduction: current flows where it should. Protection: current stops when it must.
27. Lab connections
Lab 1: Contact resistance and heat
Use a low-voltage supply, a load, and a deliberately poor connection to observe voltage drop, brightness change, and heating at a bad joint.
Lab 2: Insulation leakage model
Use large-value resistors to model leakage paths and show how lower insulation resistance increases leakage current.
Lab 3: Protection chain demonstration
Use a low-voltage sensor, relay module, and indicator to show that sensing, logic, and output all have to work together.
Lab 4: Transformer ratio with a small control transformer
Measure primary and secondary voltage to connect turns ratio with voltage ratio and tap changes.
Lab 5: Ground bond voltage drop
Compare a solid jumper return path with an intentionally resistive path to demonstrate why bonding must be low impedance.
Lab 6: Phase rotation visualization
Use a simulator or LED sequence to show how reversing two phases reverses rotation direction.
Lab 7: Reading a test report
Compare a vague OK-only report against detailed trendable reports to see which one supports decisions.
28. Glossary
Acceptance testing
Testing performed before new, modified, or repaired equipment is placed into service or finally accepted.
Maintenance testing
Testing performed on equipment already in service to verify continued suitability and identify deterioration.
Commissioning
A broader process that verifies systems are installed, tested, documented, and functioning according to design intent.
Insulation resistance
A measurement of how strongly insulation resists leakage current.
Hipot test
A high-potential dielectric withstand test that applies elevated voltage.
Tan delta
A dielectric diagnostic test that measures insulation losses.
Contact resistance
The resistance across a closed contact, joint, or connection.
Primary injection
A test method where current is injected through the primary current path.
Secondary injection
A test method where simulated current or voltage is injected into relay inputs.
CT
Current transformer.
PT or VT
Potential transformer or voltage transformer.
Polarity
The directional relationship between input and output terminals.
Phase rotation
The order in which three-phase voltages reach their peaks.
Grounding
Connecting a system or equipment to earth.
Bonding
Connecting conductive parts together to maintain equal potential and provide a fault-current path.
Baseline
The original set of test results used for future comparison.
NETA testing is how electrical professionals turn “it should work” into measured proof.
NETA testing verifies that electrical equipment is not merely installed, but ready, correct, safe, functional, and documented. Acceptance testing looks for problems before the first energization or final acceptance. Maintenance testing looks for deterioration after the equipment has lived in the real world.
Insulation should block current. Conductors and contacts should carry current. Grounding and bonding should control fault current. Protective devices should detect trouble and trip the right equipment. The report should preserve the evidence.
