Grounding & Bonding Visualized

Grounding: connecting the electrical system to earth.

Bonding: connecting metal parts together so they are at the same electrical potential and can carry fault current safely.

Or even shorter:

Grounding is about reference. Bonding is about continuity.

Grounding says, “This system has a relationship to earth.”

Bonding says, “These metal parts are intentionally connected together.”

A grounded system can still be dangerous if the bonding path is broken.

A bonded metal system can still need a grounding electrode system to stabilize voltage to earth.

They work together like two halves of one safety strategy.

The word ground gets used casually for several different things:

So when someone says, “Run a ground,” the first question should be:

Which ground-related function are we talking about?

Are we connecting to earth?

Are we bonding metal parts?

Are we providing an equipment grounding conductor?

Are we connecting the neutral to the grounding system at the service?

Are we bonding around a nonconductive fitting?

Same word. Different job.

Think of an electrical system as having three separate but related layers.

Layer 1: The power conductors

These carry normal load current.

For a typical 120/240 V single-phase system, that means:

The hot conductors deliver energy.

The neutral carries normal return current for line-to-neutral loads.

The neutral is called the grounded conductor because it is intentionally connected to the grounding system at the correct point.

That does not make it the same as the equipment grounding conductor.

Layer 2: The bonding and equipment grounding path

This is the safety metal network.

It includes things like:

• equipment grounding conductors
• metal raceways
• panel enclosures
• equipment frames
• bonding jumpers
• metal boxes
• motor frames
• disconnect enclosures

This path is normally not supposed to carry load current.

Its job is to carry current during abnormal conditions, especially ground faults.

If a hot wire touches a metal enclosure, this path should carry enough current back to the source to open the breaker or fuse.

Layer 3: The grounding electrode system

This connects the electrical system to earth.

It may include:

• ground rods
• concrete-encased electrodes
• metal underground water piping, where permitted and present
• building steel, where qualified
• ground rings
• plates
• other code-recognized electrodes

The conductor that connects the service or separately derived system to this electrode system is the grounding electrode conductor, often abbreviated GEC.

The grounding electrode system helps stabilize voltage to earth and limit imposed voltages from lightning, surges, or accidental contact with higher-voltage systems. OSHA describes grounding as intentionally creating a low-resistance path to earth and distinguishes system/service grounding from equipment grounding.

The earth is not the normal breaker-tripping path.

This is the part that makes grounding and bonding click.

Many beginners imagine a ground fault like this:

hot wire touches metal case
        ↓
current goes into ground rod
        ↓
current disappears into dirt
        ↓
breaker trips

That is not the safety model you should rely on.

A breaker trips because current returns to the source, not because current simply goes into the earth.

Current wants a complete circuit. For a utility-fed system, the source is the transformer winding. For a generator-fed system, the source is the generator winding. For a separately derived transformer, the source is the transformer secondary.

The fault-clearing path must get back to that source.

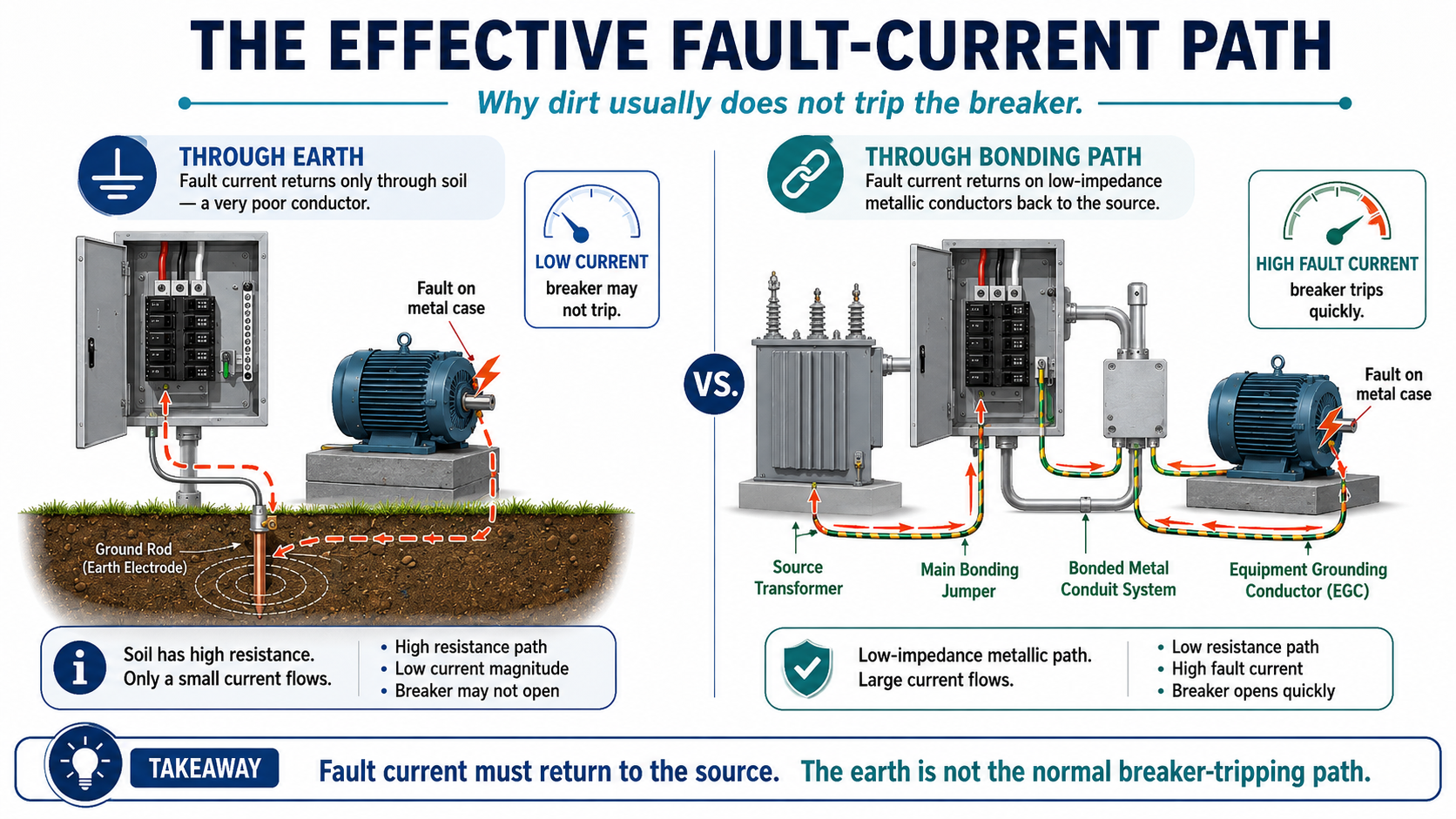

The effective path looks more like this:

hot conductor
   ↓
metal faulted enclosure
   ↓
equipment grounding conductor / metal raceway / bonding path
   ↓
panel equipment grounding bar
   ↓
main bonding jumper
   ↓
grounded service conductor / neutral path
   ↓
utility transformer winding
   ↓
back to hot conductor

That loop allows high fault current.

High fault current opens the overcurrent protective device.

That is why bonding matters.

The NEC concept is the effective ground-fault current path: an intentionally constructed, low-impedance conductive path that carries fault current back to the source and helps operate overcurrent or ground-fault protective devices. Electrical Contractor Magazine’s explanation of NEC 250.4 highlights the key point that the earth itself is not considered an effective ground-fault current path.

A ground rod may have 25 ohms of resistance to earth and still be part of a code-recognized grounding electrode arrangement, depending on the installation and rules being applied. OSHA’s construction grounding summary notes that a single electrode above 25 ohms must be supplemented by an additional electrode installed at least 6 feet away.

Now do the beginner math.

A 15 A breaker will not reliably trip at 4.8 A.

A 20 A breaker will not reliably trip at 4.8 A.

So if the only return path were through the soil, a metal enclosure could remain energized.

Now compare that to a low-impedance bonding path.

That is the kind of current that can open a breaker very quickly.

The exact value in the real world depends on transformer impedance, conductor size, conductor length, connections, temperature, raceway impedance, and available fault current. But the concept is the same:

A low-impedance metal path clears faults. Dirt usually does not.

After saying “dirt is a poor wire,” it is tempting to think ground rods do not matter.

They do matter.

They are just not doing the job many people think they are doing.

A grounding electrode system helps with:

stabilizing the system voltage relative to earth; limiting voltage from lightning, line surges, and accidental high-voltage contact; giving surge protective devices a reference to the grounding system; reducing dangerous voltage differences between the electrical system and nearby earth-referenced conductive objects; creating a reference point for grounded systems.

Think of the grounding electrode system like tying the electrical system to “sea level.”

It tells the system, “This is your earth reference.”

But when a hot conductor touches a metal cabinet, you do not want the fault current wandering through soil trying to find its way home.

You want it on copper, aluminum, steel raceway, listed bonding fittings, or other code-recognized conductive paths designed to carry fault current.

The equipment grounding conductor is often green or bare.

That color makes people think its job is to send electricity into the earth.

A better name for the green wire, mentally, is:

the emergency return path.

During normal operation, it should carry little to no current.

During a fault, it should carry enough current to make the protective device operate.

So the equipment grounding conductor is not mainly a “dirt wire.”

It is a source-return fault-clearing conductor.

It bonds metal parts together and connects them back to the source through the service or system bonding point.

The two conductors most often confused are:

1. Grounding electrode conductor, or GEC

This conductor connects the electrical system to the grounding electrode system.

Example:

main service equipment
        ↓
grounding electrode conductor
        ↓
ground rod / Ufer / water pipe electrode / building steel
        ↓
earth

Main job:

earth reference and voltage stabilization

It is part of grounding.

2. Equipment grounding conductor, or EGC

This conductor connects non-current-carrying metal parts of equipment together and back to the source bonding point.

Example:

metal motor frame
        ↓
equipment grounding conductor
        ↓
panel ground bar
        ↓
main bonding jumper or system bonding jumper
        ↓
source grounded conductor / transformer winding path

Main job:

fault-current return path and equipment bonding

It is part of bonding and equipment grounding.

The GEC connects the system to earth.

The EGC connects exposed metal equipment back to the source so protection can operate.

That one distinction solves a huge amount of confusion.

This is another common trap.

In many grounded AC systems, the neutral and equipment grounding system are intentionally connected at one main bonding point.

That does not mean neutral and ground are interchangeable.

The neutral is a current-carrying conductor.

The equipment grounding conductor is a normally non-current-carrying safety conductor.

A neutral carries normal load imbalance current.

An equipment grounding conductor carries fault current only during abnormal conditions.

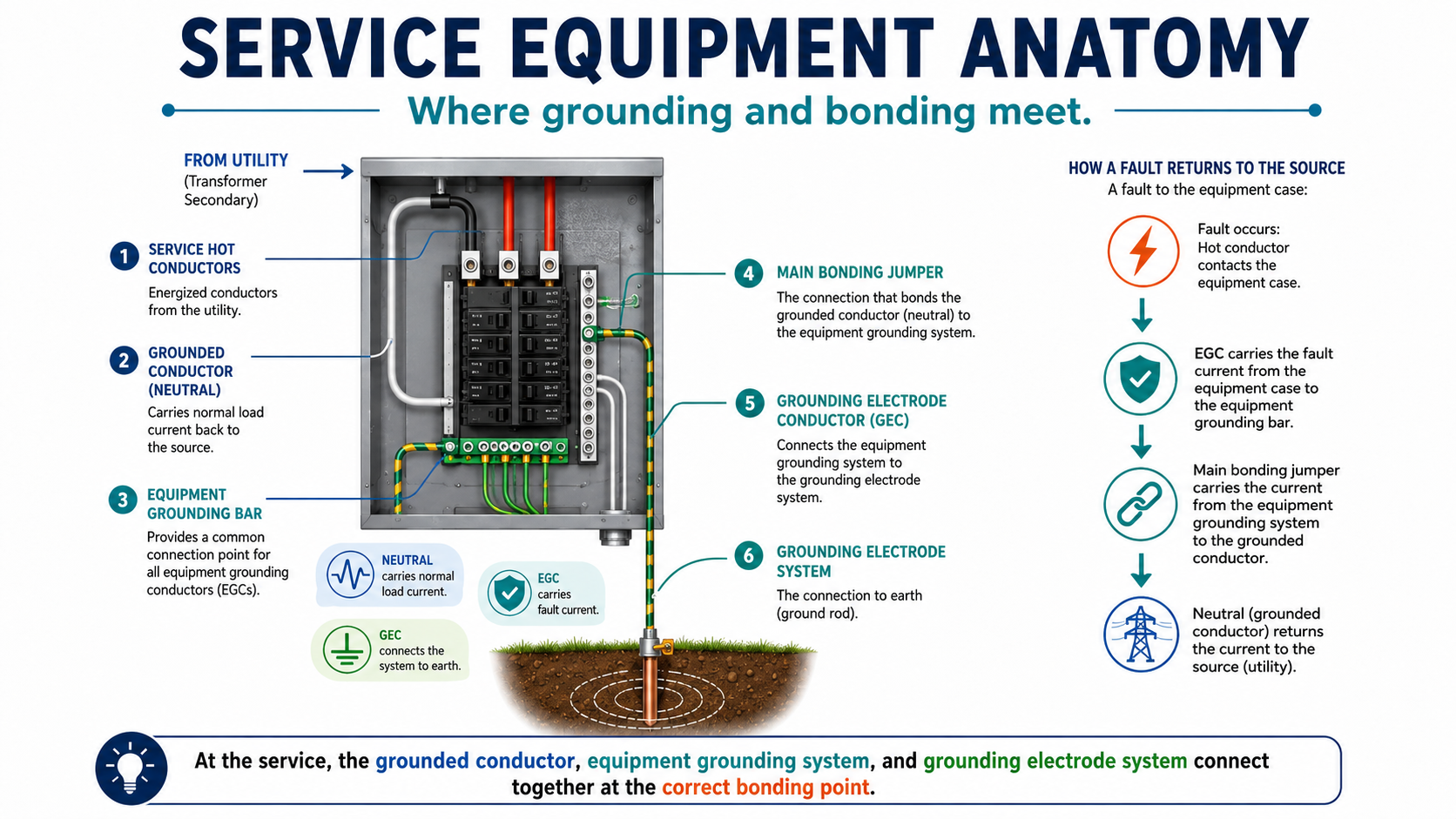

The service equipment is where the grounded conductor, equipment grounding conductors, service enclosure, and grounding electrode conductor are tied together through the proper bonding arrangement. Downstream of the service disconnect, the grounded conductor is generally not bonded again except where specifically permitted, because additional neutral-ground bonds create parallel paths for normal neutral current. NEC-based summaries of service grounding rules describe the load-side prohibition and the role of the main bonding jumper at service equipment.

The main bonding jumper is the connection between the grounded conductor and the equipment grounding system at the service.

In a simple service panel, it may be:

a green bonding screw; a bonding strap; a busbar connection; a wire-type jumper; a factory-installed bonding assembly.

Its job is not decorative.

It is the bridge that lets a ground fault on metal equipment return to the source.

Without that connection, the fault path may be incomplete.

Visualize it like this:

UTILITY TRANSFORMER
        |
        | service conductors
        |
MAIN SERVICE EQUIPMENT
        |
        |-- neutral bar
        |       |
        |       | main bonding jumper
        |       |
        |-- equipment grounding bar / enclosure
        |
        |-- grounding electrode conductor
                |
                grounding electrode system

During a fault:

hot → metal case → EGC → service enclosure/ground bar → main bonding jumper → neutral/service grounded conductor → transformer

That is why the main bonding jumper is so important.

It connects the equipment bonding network to the source return point.

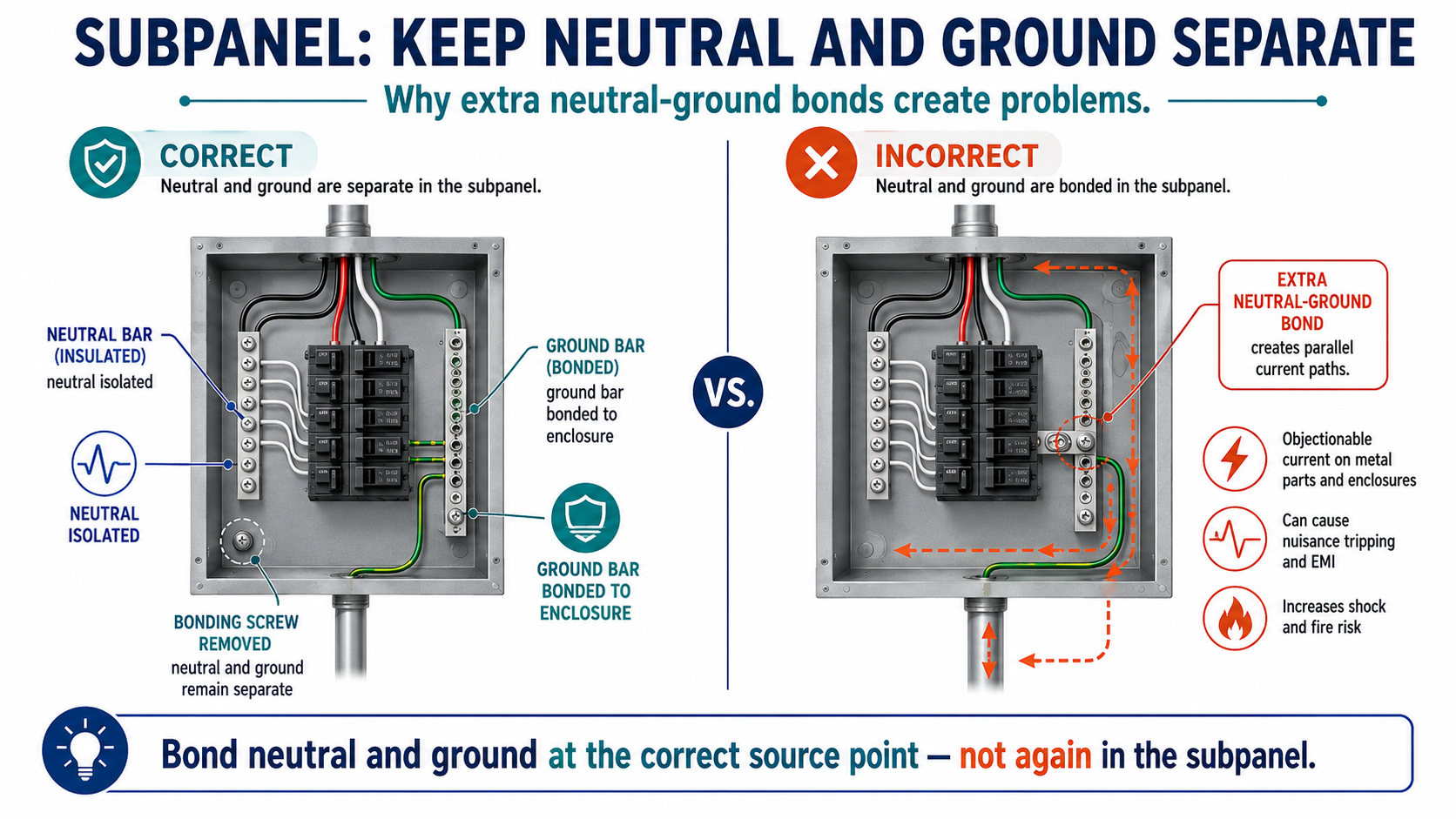

In a downstream panel, the neutral and equipment grounding conductors are usually isolated from each other.

That means:

• neutral bar: insulated from panel cabinet
• ground bar: bonded to panel cabinet
• bonding screw: removed or not installed

Why?

Because if you bond neutral and ground again downstream, normal neutral current can divide onto metal raceways, equipment grounding conductors, panel cabinets, cable armor, piping, and structural steel.

That creates several problems:

metal parts may carry normal load current; shock voltage can appear where it does not belong; sensitive equipment may experience noise; ground-fault protection may not work as intended; current may flow on paths never intended to carry continuous current; objectionable current can appear on grounding and bonding paths.

A useful phrase:

Bond neutral to ground at the correct source point, not everywhere.

There are exceptions and special cases: separately derived systems, generators, transfer switches, service disconnect configurations, and certain existing installations. But the principle is the same:

One intentional bonding point for a given grounded system prevents normal current from using the equipment grounding network.

Consider a simple 120 V load.

NORMAL OPERATION

hot conductor
        ↓
      load
        ↓
    neutral conductor
        ↓
   source winding

The equipment grounding conductor is present, but it is not carrying normal load current.

metal case
          |
          |
 equipment grounding conductor
          |
      panel ground bar

In normal operation, the green/bare conductor is quiet.

It is standing by.

It is like a fire sprinkler pipe: not doing much when everything is normal, but extremely important when something goes wrong.

Now a hot wire rubs through its insulation and touches the metal case.

FAULT CONDITION

hot conductor
        ↓
    metal case
        ↓
 equipment grounding conductor
        ↓
 main bonding jumper
        ↓
 grounded conductor / source return
        ↓
 transformer winding

Because this path is low impedance, fault current rises quickly.

The breaker or fuse sees the high current and opens.

That is the safety sequence:

fault happens
    ↓
bonded metal path carries fault current
    ↓
protective device opens
    ↓
metal case is de-energized

If the equipment grounding path is missing, loose, painted over, corroded, improperly spliced, or not bonded through, the metal case may remain energized.

That is why bonding is not just a paperwork requirement.

It is the physical path that makes automatic disconnection possible.

A beginner often thinks the goal is to keep every metal part at exactly zero volts.

That is not always what happens.

During a large fault or lightning event, an entire grounding and bonding system may rise above remote earth potential.

For example, a substation ground grid may rise thousands of volts above remote earth during a major fault.

That sounds terrifying, but the key question is:

What voltage difference exists across a person or piece of equipment?

If all nearby conductive objects rise together, the voltage between them can remain small.

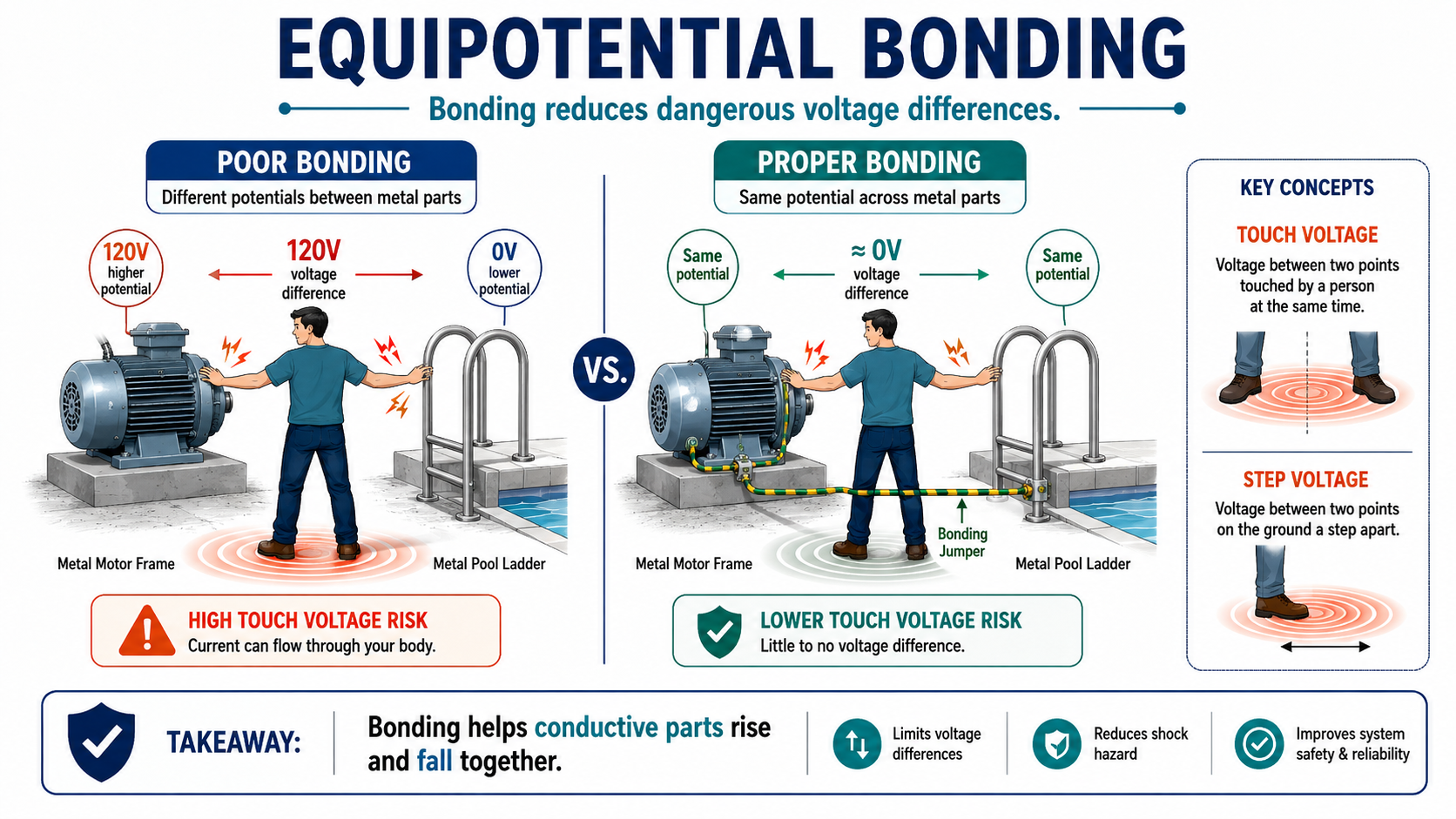

That is the idea behind equipotential bonding.

Equipotential means “same potential.”

In plain language:

Bonding makes nearby metal parts rise and fall together.

This matters in:

substations; swimming pools; marinas; industrial plants; dairies and livestock facilities; data centers; telecom sites; hospitals; lightning protection systems; large motor installations; process plants with extensive piping.

A person is injured by voltage across their body, not by a number printed on a theoretical reference point far away.

Bonding tries to reduce the difference between the things a person can touch at the same time.

Two dangerous ideas show up whenever grounding and bonding are discussed:

Touch voltage

Touch voltage is the voltage between a person’s hand and feet, or between two points a person can touch at the same time.

Example:

• one hand on energized equipment frame
• feet on earth or concrete

If the equipment frame is poorly bonded, the person may become the return path.

Bonding lowers touch voltage by giving fault current a better path than the human body.

Step voltage

Step voltage is the voltage between a person’s feet.

This matters when current enters the earth, such as during lightning or a high-current ground fault.

Soil is not a perfect conductor. Voltage gradients form across the ground surface.

One foot can be at a different voltage than the other foot.

That is why substations use ground grids, crushed rock layers, bonding, fencing practices, and careful step-and-touch voltage design.

For beginners, remember:

The earth is not one magic zero-volt point.

Soil has resistance.

Soil has voltage gradients.

Remote earth may not be at the same potential as the dirt under your boots.

The phrase “ground is zero volts” is a teaching shortcut, not a universal truth.

Ground is often used as a reference point.

But references can move.

A grounded conductor can have voltage drop.

A grounding electrode system can rise above remote earth.

An equipment grounding conductor can have voltage on it during a fault.

A long bonding conductor can have inductive voltage during lightning or high-frequency events.

A building steel system can be at a different potential than remote soil during an event.

So the better statement is:

Ground is the chosen reference point for the system, not a guarantee that every grounded object is always at zero volts under every condition.

That distinction matters more as systems get larger, faster, noisier, or more fault-current-rich.

Bonding is not just “wire touching metal.”

Bonding must survive real conditions:

fault current; vibration; corrosion; paint; oxidation; thermal cycling; loose locknuts; expansion and contraction; mechanical abuse; improper fittings; concentric and eccentric knockouts; flexible raceways; high-frequency currents; maintenance work; future modifications.

A bonding path is only as good as its weakest connection.

A beautiful copper equipment grounding conductor does not help if it terminates under a loose screw.

A metal conduit does not help if fittings are loose or separated.

A junction box does not help if paint prevents contact where a bonding bushing or listed fitting is needed.

A transformer enclosure does not help if the system bonding jumper is missing.

Bonding is physical.

It must be intentional, continuous, and capable of carrying the current likely to appear during a fault. OSHA summarizes this idea by requiring grounding paths from circuits, equipment, and enclosures to be permanent and continuous, and by noting that grounding and bonding conductors must be able to safely carry fault current imposed on them.

The grounding electrode system is often the most visible part of grounding because people can see the ground rod.

That visibility makes it seem like the ground rod is the star of the show.

It is not.

The grounding electrode system is more like the system’s connection to the planet.

Its jobs include:

1. Stabilizing voltage to earth

A grounded system has one conductor intentionally referenced to earth.

In many AC systems, this is the neutral.

That keeps line-to-ground voltages predictable.

Example:

120/240 V single-phase system

Without a stable reference, voltages to earth can float unpredictably.

2. Limiting lightning and surge voltage

Lightning and switching surges involve fast, high-energy events.

The grounding electrode system helps establish a reference and a path for surge protective devices to operate.

But lightning is not normal 60 Hz fault current.

At lightning frequencies, inductance matters. A long, coiled conductor can have a large voltage across it during a fast transient even if its DC resistance is low.

That is why grounding and bonding conductors for surge and lightning applications are kept as short and straight as practical.

For advanced readers:

A lightning current has a very high di/dt, meaning the current changes extremely quickly.

Even small inductance can create a large voltage.

So at high frequency, conductor shape, routing, bends, and bonding geometry matter.

3. Reducing differences between building systems

A building may have several conductive systems:

electrical service; structural steel; metal water piping; gas piping, where bonding is required by applicable rules; HVAC ductwork; lightning protection; communications systems; cable TV; antenna systems; fire alarm; process piping; instrumentation references.

Bonding these systems correctly helps prevent dangerous potential differences.

The goal is not to make every object magically zero volts.

The goal is to prevent one metal system from being at a dangerous voltage compared with another metal system nearby.

At service equipment, several things come together:

• grounded service conductor
• equipment grounding conductors
• service enclosure
• main bonding jumper
• grounding electrode conductor
• grounding electrode system

That point is special because it connects:

the system grounded conductor; the equipment bonding network; the grounding electrode system; the service equipment enclosure.

That connection makes the whole safety system work.

Visual:

grounding electrode system
                         ↑
                         |
              grounding electrode conductor
                         |
UTILITY ---- SERVICE EQUIPMENT ---- BRANCH CIRCUITS
SOURCE          |       |
                |       |
          neutral bar   equipment grounding bar
                |_______|
             main bonding jumper

The main bonding jumper ties the grounded conductor to the equipment grounding system.

The grounding electrode conductor ties that system to earth.

The branch-circuit equipment grounding conductors tie metal equipment back to that point.

This is the “hub” of the grounded electrical system.

A separately derived system is a system whose supply is derived from a source with no direct electrical connection to conductors of another system, except through grounding and bonding connections.

Common examples include:

transformer secondaries; certain generators; some UPS outputs; some inverter systems.

When you add a separately derived transformer, you have created a new source.

That means the fault-current return path must return to that new source.

A common mistake is to install the transformer but forget that the secondary needs its own proper system bonding arrangement.

For a transformer secondary, a fault path may look like this:

secondary hot
    ↓
faulted metal enclosure
    ↓
equipment grounding conductor
    ↓
system bonding jumper
    ↓
secondary grounded conductor
    ↓
transformer secondary winding

The key idea:

Fault current returns to its source, not necessarily to the utility transformer.

Every time the source changes, the grounding and bonding question must be asked again.

Where is the system bonding jumper?

Where is the grounding electrode conductor connection?

Where is the effective ground-fault current path?

How will the protective device operate?

Portable and standby generators create many grounding and bonding questions.

One of the most important is whether the generator neutral is bonded to the generator frame.

The correct answer depends on the generator design, transfer equipment, whether the neutral is switched, applicable codes, and the intended use.

The concept is easier than the rules:

If the generator is treated as a separately derived system, it may need its own neutral-to-ground bond at the generator or first disconnecting means. If the generator neutral remains solidly connected to the service neutral, an additional neutral-to-ground bond at the generator may create parallel neutral current paths. If the neutral is switched, the bonding arrangement changes. If the neutral is not switched, the bonding arrangement changes.

The danger is having either:

no effective bonding point

or

too many bonding points

No effective bonding point can prevent fault current from returning to the source.

Too many bonding points can put normal neutral current on equipment grounding conductors, frames, raceways, and other metal parts.

The beginner takeaway:

Generator grounding is not solved by simply driving a rod. You must know where the neutral is bonded and how fault current gets back to the generator winding.

An isolated ground receptacle is often misunderstood.

An isolated ground is not a magic clean earth connection.

It is not a separate safety universe.

It is still an equipment grounding conductor.

The difference is that the grounding contact of the receptacle is isolated from certain metal mounting parts and connected by an insulated equipment grounding conductor back to the grounding point.

The purpose is usually noise reduction for sensitive equipment, not basic shock protection.

Important:

• isolated ground ≠ no ground
• isolated ground ≠ separate earth only
• isolated ground ≠ permission to skip bonding

An isolated grounding conductor must still be part of the equipment grounding system and must still provide an effective fault-current path.

If it cannot clear a fault, it is not doing the safety job.

A bootleg ground is when someone connects the neutral terminal to the grounding terminal at a receptacle to make a tester show “ground present.”

This is dangerous.

It can energize metal parts.

It can hide open equipment grounding conductors.

It can place neutral current on equipment grounding contacts.

It can fool simple plug-in testers.

It can create shock hazards when the neutral opens.

Example:

neutral opens upstream
        ↓
load still connected
        ↓
bootleg ground ties equipment frame to neutral side
        ↓
metal case can become energized

The outlet tester may look happy.

The installation is not safe.

A real equipment grounding conductor must provide a reliable fault path back to the source bonding point.

A jumper from neutral to ground at a receptacle is not an acceptable substitute.

Mistake 1: “The ground rod trips the breaker.”

Usually false.

The breaker trips because fault current returns to the source through a low-impedance conductive path.

The ground rod stabilizes the system to earth and helps with abnormal voltage events, but soil is usually too resistive to be the primary breaker-tripping path.

Mistake 2: “Neutral and ground are the same because they connect in the main panel.”

They connect at the correct bonding point.

They are not the same conductor.

Neutral carries normal return current.

Equipment ground carries fault current.

One is part of the normal circuit.

The other is part of the safety system.

Mistake 3: “More neutral-ground bonds must be safer.”

Not usually.

Extra neutral-ground bonds can create parallel return paths and put normal neutral current on metal parts.

The correct system has the right bond in the right place.

Safety is not “bond everything to neutral everywhere.”

Safety is intentional bonding based on source and system design.

Mistake 4: “A wire has continuity, so it is a good fault path.”

Not necessarily.

A multimeter continuity beep uses a tiny current.

A fault may involve hundreds or thousands of amps.

A poor connection may beep during testing but fail under fault current.

The path must be low impedance and able to carry fault current until the protective device operates.

Mistake 5: “Ground resistance and fault-loop impedance are the same thing.”

They are not.

Ground resistance usually refers to resistance between an electrode and earth.

Fault-loop impedance refers to the total impedance of the return path from the fault point back to the source.

For clearing faults, loop impedance is usually the more important concept.

A ground rod can test reasonably well and still not provide a low enough current path to trip a breaker.

Mistake 6: “A metal raceway is always a good equipment grounding path.”

Sometimes it is, when installed with proper fittings and continuity.

But loose fittings, corrosion, paint, concentric knockouts, missing bonding bushings, flexible sections, vibration, or poor workmanship can compromise the path.

Metal raceway can be part of the equipment grounding conductor system only when installed in a way that maintains reliable electrical continuity.

Mistake 7: “A separately derived transformer is automatically safe because the primary is grounded.”

The secondary is a new source.

Fault current on the secondary must return to the secondary winding.

That requires the correct secondary bonding and grounding arrangement.

The primary grounding system does not automatically clear secondary ground faults.

Use this three-question test:

Question 1: What is the source?

Utility transformer?

Generator?

Transformer secondary?

UPS?

Inverter?

Fault current must return to its source.

Question 2: Where is the bonding point?

At the service?

At the separately derived transformer?

At the generator?

At the first disconnect?

There should be a correct, intentional connection between the grounded conductor and the equipment grounding system.

Question 3: What path will fault current take?

Do not answer “ground.”

Trace the metal path.

fault point → equipment grounding path → bonding jumper → source winding

If you cannot trace that loop, the protective device may not operate.

For advanced electrical engineers, grounding and bonding can be understood through four overlapping goals.

Goal 1: Reference

A system needs a stable reference to earth or to a defined conductor.

This affects insulation stress, surge behavior, line-to-ground voltage, ground detectors, and power quality.

Goal 2: Fault clearing

A ground fault must produce enough current, or enough detectable imbalance, to cause protective action.

This may involve:

overcurrent protective devices; ground-fault circuit interrupters; ground-fault protection of equipment; relays; residual current devices; ground detectors; high-resistance grounding alarms.

The design question is:

• Will the fault be detected and cleared or alarmed as intended?
• Goal 3: Equipotential bonding

Conductive parts that can be touched simultaneously should not sit at dangerously different potentials.

This matters in low-voltage premises wiring, but it becomes especially important in substations, pools, process plants, and lightning-prone installations.

Goal 4: Transient and noise control

At high frequency, a grounding and bonding system is not just resistance.

It is impedance:

That means conductor routing, length, shape, surface area, loops, parallel paths, terminations, and bonding geometry matter.

For drives, instrumentation, RF, data centers, and lightning, a long skinny conductor may be acceptable for low-frequency safety but poor for high-frequency noise or transient performance.

Safety grounding and signal reference design overlap, but they are not the same design problem.

Not every system is grounded in the same way.

Solidly grounded systems

A system conductor is intentionally connected to ground without intentional impedance.

Many common building systems are solidly grounded.

Benefits:

predictable line-to-ground voltage; high ground-fault current; fast operation of overcurrent devices; simple detection.

Tradeoff:

ground faults can be high energy; arc-flash exposure can be significant; first ground fault usually causes immediate clearing. Ungrounded systems

No system conductor is intentionally grounded.

However, equipment still must be bonded.

A first ground fault may not produce high current because there is no solid return path through a grounded conductor.

Benefits:

continuity of operation after first ground fault in some industrial processes; reduced first-fault current.

Tradeoff:

ground detectors are required in many applications; a second ground fault can be severe; transient overvoltages can occur; troubleshooting can be difficult.

Important:

Ungrounded does not mean unbonded.

Metal enclosures still need an equipment grounding and bonding system.

High-resistance grounded systems

A neutral or derived point is connected to ground through a resistor.

This intentionally limits ground-fault current.

Benefits:

reduced arc-flash energy for ground faults; process continuity; easier fault detection than fully ungrounded systems; reduced equipment damage.

Tradeoff:

requires monitoring; first fault must be located and corrected; not suitable for all loads; protective scheme must be designed around the limited current.

In these systems, bonding still matters because exposed metal parts must remain at controlled potential and fault current or detection current must have an intentional path.

Grounding and bonding are not only about shock protection.

They also affect noise, transients, and equipment behavior.

Poor bonding can cause:

communication errors; nuisance trips; VFD noise problems; PLC reference issues; analog signal drift; shield current problems; circulating currents; data corruption; improper surge protective device performance.

But this is where beginners get into trouble.

You should not “fix noise” by defeating the equipment grounding conductor.

You should not lift the safety ground to stop hum.

You should not remove a bonding jumper because a meter shows current on it.

Power quality fixes must preserve the safety grounding and bonding system.

A good rule:

Safety first, signal reference second.

Then solve noise with proper shielding, routing, filtering, isolation, bonding strategy, surge protection, and equipment layout.

A refrigerator has a metal case.

Inside, a hot conductor rubs against sharp metal and energizes the case.

With proper bonding
hot touches case
    ↓
fault current flows on equipment grounding conductor
    ↓
breaker trips
    ↓
case de-energized

A person touching the case may never know the fault happened.

Without proper bonding
hot touches case
    ↓
case sits energized
    ↓
person touches case and grounded object
    ↓
person becomes part of return path

The breaker may not trip because the current through a human body may be far below the breaker rating.

A breaker protects conductors and equipment from overcurrent.

It does not guarantee protection from all shock current.

That is why equipment grounding, bonding, GFCI protection, insulation, enclosures, and correct installation all work together.

A motor frame is supplied by a branch circuit.

A winding fault energizes the motor frame.

If the motor frame is bonded, fault current returns through the equipment grounding path.

If the motor frame is not bonded, the frame may remain energized relative to the floor, piping, or nearby steel.

Now a mechanic touches the motor with one hand and a bonded pipe with the other.

That person may become the bonding jumper.

The electrical system should never depend on a human body to complete the fault path.

A detached garage or outbuilding often has both:

an equipment grounding conductor run with the feeder; a grounding electrode system at the detached structure, where required.

The grounding electrode system at the detached building does not replace the equipment grounding conductor.

Why?

Because the feeder fault current still needs a low-impedance path back to the source.

A rod at the detached building connects the building grounding system to earth.

The equipment grounding conductor connects the building equipment back to the source bonding point.

Different jobs.

Same safety ecosystem.

A swimming pool is one of the best examples of bonding as “same voltage,” not just “trip the breaker.”

Around a pool, people are wet, barefoot, and in contact with conductive surfaces.

Even small voltage differences can be dangerous.

Pool bonding connects conductive parts together so a person is not bridging two different potentials.

This can include certain metal parts, reinforcing steel, equipment, ladders, rails, and other conductive components depending on the installation.

The main idea:

Do not let a swimmer become the wire between two different voltages.

In a data center, grounding and bonding have both safety and performance roles.

Safety role:

clear faults and keep exposed metal at safe potential

Performance role:

control noise, transients, and reference differences

A data center may use bonding grids, signal reference grids, cable tray bonding, rack bonding, surge protection, and carefully routed equipment grounding conductors.

But even in advanced environments, the principle remains:

Noise control cannot defeat the safety fault path.

An isolated or dedicated grounding conductor may help reduce noise, but it must still be an effective equipment grounding conductor.

Let’s model a ground fault.

• 120 V source
• fault loop impedance = 0.15 Ω

Fault current:

That current may last only a fraction of a second if the breaker opens quickly.

The equipment grounding conductor and bonding path must carry it long enough for the protective device to operate.

Now increase the impedance:

A 20 A breaker may not trip.

The metal enclosure may stay energized.

This is why loose connections, undersized paths, corroded fittings, or relying on soil can be dangerous.

The problem is not only whether a path exists.

The problem is whether the path has low enough impedance to make the protective device operate.

At DC, we often talk about resistance.

At AC, especially during faults and transients, we care about impedance.

Impedance includes:

resistance; inductive reactance; capacitive effects; source impedance; conductor geometry; frequency; magnetic effects; connection quality.

For 60 Hz branch-circuit faults, resistance and inductive reactance both matter.

For lightning and high-frequency noise, inductance can dominate.

That is why a conductor can look fine on a DC continuity test but perform poorly during a fast transient.

A long coiled bonding conductor may have low DC resistance but high transient impedance.

Advanced grounding and bonding design is not just “make the ohms low.”

It is also:

make the path short, make it direct, avoid unnecessary loops, bond parallel conductive paths correctly, manage high-frequency current paths, and coordinate with protective devices.

A breaker does not know that a human is being shocked.

A standard breaker responds to current.

If the fault current is high enough for long enough, it trips.

If the fault current is too low, it may not.

Bonding helps convert a dangerous enclosure fault into a high-current event that the breaker can see.

That sounds backwards at first.

Why would we want more current?

Because a large fault current for a short time is often safer than a small shock current for a long time.

The bonding system says:

Do not let the person be the return path. Give the fault a better path. Make the breaker notice. Shut the circuit off.

A GFCI does not need huge fault current to operate.

It compares current leaving on the hot conductor with current returning on the neutral.

If enough current is missing, the GFCI opens.

That missing current may be leaking through water, a person, a grounded surface, or another unintended path.

A GFCI is extremely valuable, but it does not make bonding irrelevant.

Bonding still:

keeps metal parts at similar potential; provides a fault path; supports proper operation of other protective devices; reduces touch voltage; maintains the equipment safety system.

Think of GFCI protection as another layer, not a replacement for grounding and bonding.

A ground fault does not always mean current is literally flowing into dirt.

A ground fault means an ungrounded conductor has made unintended contact with grounded metal, equipment grounding conductors, raceways, enclosures, or earth-referenced conductive parts.

In a properly bonded system, most of that current may flow through metal paths, not soil.

So “ground fault” often really means:

line-to-bonded-metal fault

or

line-to-equipment-grounding-path fault

The name stuck because the metal system is grounded.

But the clearing path is normally metallic.

Ground

The earth.

Not a wire.

Not a magic sink.

Not always exactly zero volts everywhere.

Grounded conductor

A system or circuit conductor intentionally connected to ground.

In many common AC systems, this is the neutral.

It carries normal load current.

Color is typically white or gray in many NEC-style systems.

Ungrounded conductor

A conductor not intentionally grounded.

Usually called a hot or phase conductor.

It carries load current and has voltage to ground.

Equipment grounding conductor

The conductive path that connects normally non-current-carrying metal parts together and back to the source bonding point.

It carries fault current, not normal load current.

Often green, green/yellow, or bare depending on system and jurisdiction.

Grounding electrode

A conductive object that connects the electrical system to earth.

Examples include ground rods, concrete-encased electrodes, and other recognized electrodes.

Grounding electrode conductor

The conductor connecting the service equipment, source, or system to the grounding electrode system.

Its primary job is earth reference, not branch-circuit fault clearing.

Bonding jumper

A conductor or connection used to ensure electrical continuity between metal parts.

It may be wire, bus, screw, strap, fitting, or other listed means.

Main bonding jumper

The connection at service equipment between the grounded conductor and the equipment grounding system.

This is one of the most important links in the fault-current return path.

System bonding jumper

The connection between the grounded conductor and equipment grounding system for a separately derived system.

Think transformer secondary or certain generator configurations.

Supply-side bonding jumper

A bonding jumper installed on the supply side of service equipment or between service equipment and the source under specific rules.

Ground-fault current path

The path fault current takes from the fault point back to the source.

Effective ground-fault current path

A deliberately constructed, low-impedance path that can carry fault current and help operate protective devices.

This is the path you should be able to trace with your finger on a diagram.

Use this comparison:

Grounding is like tying a boat to the shoreline

The boat now has a reference to land.

It will not drift indefinitely.

That is like connecting an electrical system to earth.

Bonding is like bolting all the metal parts of the boat together

If one metal part becomes energized, the other metal parts are not floating at random voltages.

There is a continuous conductive structure.

That is bonding.

The fault-current path is like an emergency lane back to the source

If something goes wrong, current has a clear path back that causes the protection to operate.

That is the equipment grounding and bonding system.

Imagine a water system.

Grounding is like referencing the pressure gauge to atmosphere.

Bonding is like making sure all metal pipe sections are connected together.

The breaker-tripping fault path is like a relief pipe that sends dangerous pressure back to a place where a valve can detect it and shut down.

The dirt around the pipe may be wet, but you would never design the emergency relief path by saying, “Just let the water leak into the soil.”

Electrical faults are similar.

You do not rely on dirt as the engineered return path.

Imagine current as a train.

The source is the station.

The hot conductor sends the train out.

The normal neutral brings the train back during normal operation.

The equipment grounding path is an emergency return track.

The grounding electrode is a connection to the earth reference.

If the train derails onto a metal frame, the emergency track must guide it back to the station fast enough to trigger the shutdown.

A ground rod stuck in the dirt is not a high-speed rail line back to the station.

Use low voltage only. Do not perform this experiment on building wiring or mains voltage.

Goal

Show that a metallic bonding path carries much more current than a soil path.

Materials 12 V current-limited DC supply or battery pack; small automotive lamp or power resistor; inline fuse or resettable current limiter; multimeter; two short copper wires; two long wires; two metal rods, nails, or probes; container of soil; water for dampening soil; switch or clip lead. Setup A: Metallic path

Create this circuit:

+12 V → lamp/resistor → copper wire path → supply negative

Observe the lamp brightness or measure current.

The copper path has low resistance.

Current flows easily.

Setup B: Soil path

Now replace part of the copper return path with two metal probes stuck in soil:

+12 V → lamp/resistor → probe → soil → probe → supply negative

Move the probes farther apart.

Try dry soil.

Try damp soil.

Measure current.

You should see that soil is a much poorer conductor than copper.

Lesson

Soil may conduct some current, especially when damp and mineral-rich, but it is not comparable to an intentional metallic fault path.

This is why an equipment grounding conductor is not optional just because a ground rod exists.

Use low voltage only.

Goal

Show how bonding two metal parts together reduces voltage difference between them.

Materials 12 V supply; two small metal plates or metal project boxes; resistor, such as 100 Ω to 1 kΩ; jumper wire; multimeter. Setup

Create a small voltage difference between two metal plates using a resistor network.

Measure voltage between Plate A and Plate B.

Now bond Plate A and Plate B together with a jumper wire.

Measure again.

Expected result

The voltage difference between the plates should collapse toward zero.

Lesson

Bonding does not necessarily make everything zero volts relative to the universe.

It makes bonded things close to the same voltage relative to each other.

That is the heart of equipotential bonding.

Use only a low-voltage training circuit. Do not modify real building wiring.

Goal

Show how current divides onto parallel paths when neutral and ground are bonded in more than one place.

Materials 12 V AC or DC supply; two resistive loads; one conductor labeled “neutral”; one conductor labeled “equipment ground”; two jumper wires; clamp meter capable of low current, or series ammeter; training board. Setup

Create a circuit with a load current returning on the neutral.

Then add a second neutral-to-ground jumper downstream, creating a parallel return path.

Measure current on both the neutral and the “equipment ground” conductor.

Lesson

When neutral and ground are bonded in multiple places, normal return current can divide onto grounding and bonding paths.

That is why the location of the neutral-ground bond matters.

Grounding and bonding problems can show up as:

nuisance GFCI trips; tingling when touching equipment; voltage between neutral and ground; current on grounding conductors; communication errors; VFD noise; analog signal instability; lights flickering when large loads start; intermittent breaker trips; unexplained equipment damage after storms; elevated touch voltage; corroded bonding connections; failed continuity tests; open ground readings; objectionable neutral current on raceways or piping.

But be careful.

A voltage reading alone does not always tell the full story.

A high-impedance digital meter may detect phantom voltage.

A clamp meter may show current caused by parallel neutral paths.

A continuity tester may miss high-current failure modes.

A ground resistance test may not reveal fault-loop impedance.

Good troubleshooting separates:

• reference problem
• bonding problem
• fault path problem
• neutral problem
• surge problem
• noise problem
• measurement artifact

Continuity test

Tells you whether a conductive path exists.

Limitation:

A tiny test current does not prove the path can carry fault current.

Ground resistance test

Tells you resistance between grounding electrode system and earth.

Limitation:

Does not prove the branch-circuit equipment grounding path can trip a breaker.

Fault-loop impedance test

Estimates whether enough current can flow to operate protective devices.

Limitation:

Must be done with proper instruments and procedures.

Clamp current measurement

Shows current flowing on conductors, including grounding and bonding paths.

Limitation:

You must know whether the current is normal, fault, leakage, induced, harmonic, or objectionable neutral current.

Neutral-to-ground voltage measurement

Can reveal voltage drop or improper bonding.

Limitation:

Some voltage can be normal under load; interpretation depends on system design, load current, conductor length, and measurement location.

Grounding and bonding support protection.

They are not replacements for:

correct breaker sizing; conductor ampacity; short-circuit current ratings; selective coordination; GFCI protection where required; ground-fault protection of equipment where required; arc-flash analysis; insulation; barriers; proper enclosures; working clearances; lockout/tagout; inspection and testing.

A grounded system can still kill.

A bonded system can still be miswired.

A breaker can still fail to trip if the fault path impedance is too high.

The safety system works only when all pieces are correct.

Grounding and bonding are often drawn together, installed together, and discussed together.

But they answer different questions.

Grounding asks: How is this electrical system referenced to earth? Bonding asks: Are all conductive parts intentionally connected together? Fault-clearing asks: If a hot conductor touches metal, will enough current return to the source to operate protection?

Those are three related but different questions.

A ground rod answers the first question.

A bonding jumper answers the second.

An equipment grounding path answers the third.

When people mix those up, they start believing dangerous things, like:

The dirt will trip the breaker. Neutral and ground are interchangeable. A subpanel bonding screw is always good. A ground rod replaces an equipment grounding conductor. A continuity beep proves a safe fault path.

Better mental model:

Grounding gives the system an earth reference. Bonding keeps metal parts together. The equipment grounding path carries fault current back to the source. The breaker opens because current returns to the source, not because current disappears into dirt.

Grounding references. Bonding connects.

The green wire is an emergency return path, not a dirt drain.

Fault current returns to the source.

The earth is not the breaker’s trip coil.

Neutral carries normal current. Equipment ground carries fault current.

One correct bond is safer than many random bonds.

A ground rod does not replace an equipment grounding conductor.

Bonding makes metal parts rise and fall together.

A meter beep is not a fault-current test.

Trace the loop: fault point to source.

Grounding and bonding are not mysterious once you separate the jobs.

The grounding electrode system connects the electrical system to earth.

The bonding system connects conductive parts together.

The equipment grounding path gives fault current a low-impedance route back to the source.

The neutral carries normal return current.

The main bonding jumper connects the grounded conductor and equipment grounding system at the correct location so faults can clear.

The earth helps stabilize voltage, but the earth is not the normal breaker-tripping path.

So when you see a green wire, a ground rod, a neutral bar, a bonding screw, and a metal panel cabinet, do not call them all “ground” and stop thinking.

Ask what each part is doing.

• Is this for reference?
• Is this for bonding?
• Is this for normal current?
• Is this for fault current?
• Is this connected at the correct point?
• Can the fault get back to the source?

That is the difference between memorizing grounding rules and actually understanding grounding and bonding.
