Protection Zone & Relay Scheme Explorer
Explore protection zones, relay responsibility areas, and scheme behavior across four system topologies — then drive fault scenarios including feeder faults, bus faults, transformer internal faults, backup operation, and breaker failure.
Overview

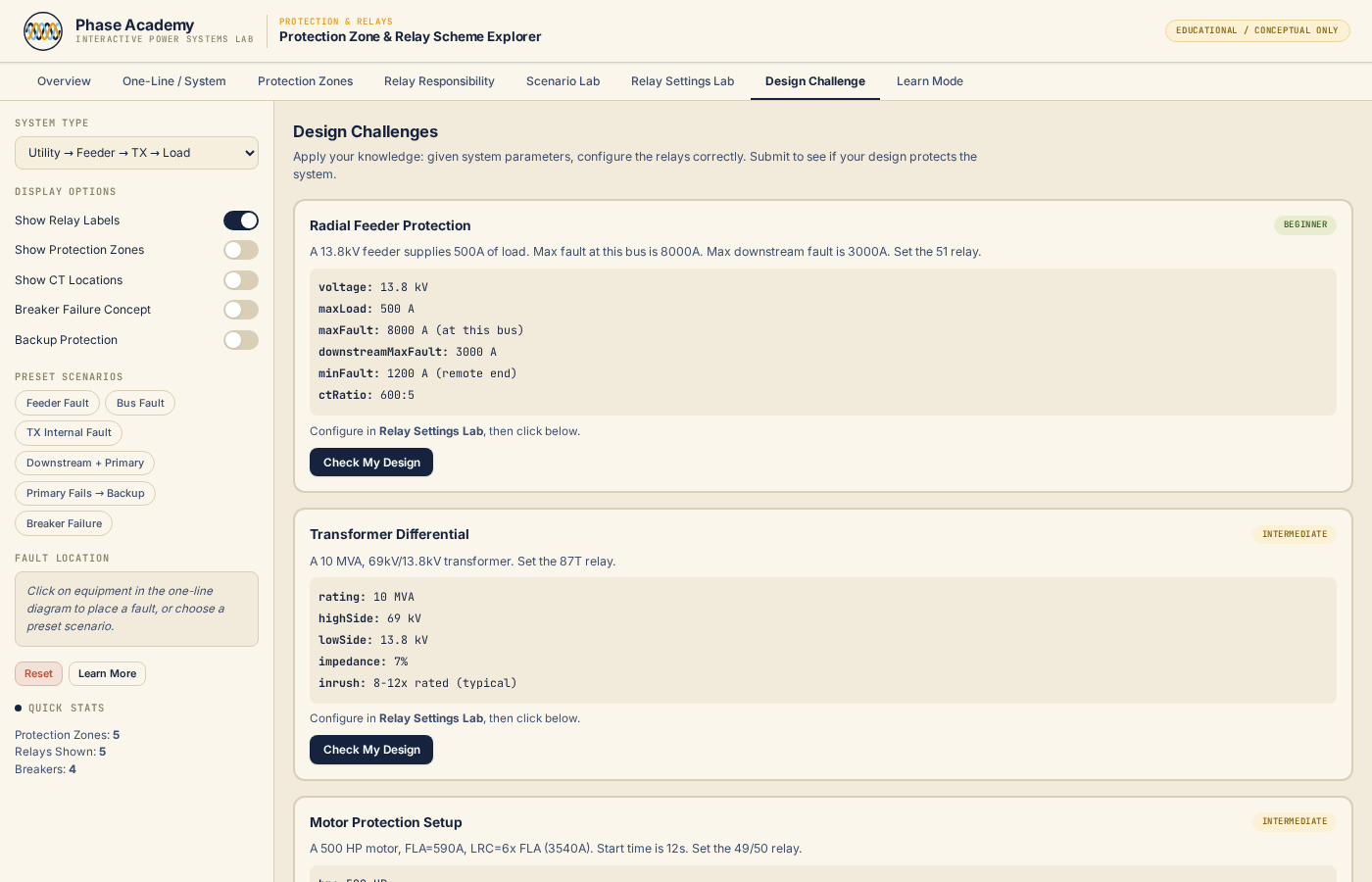

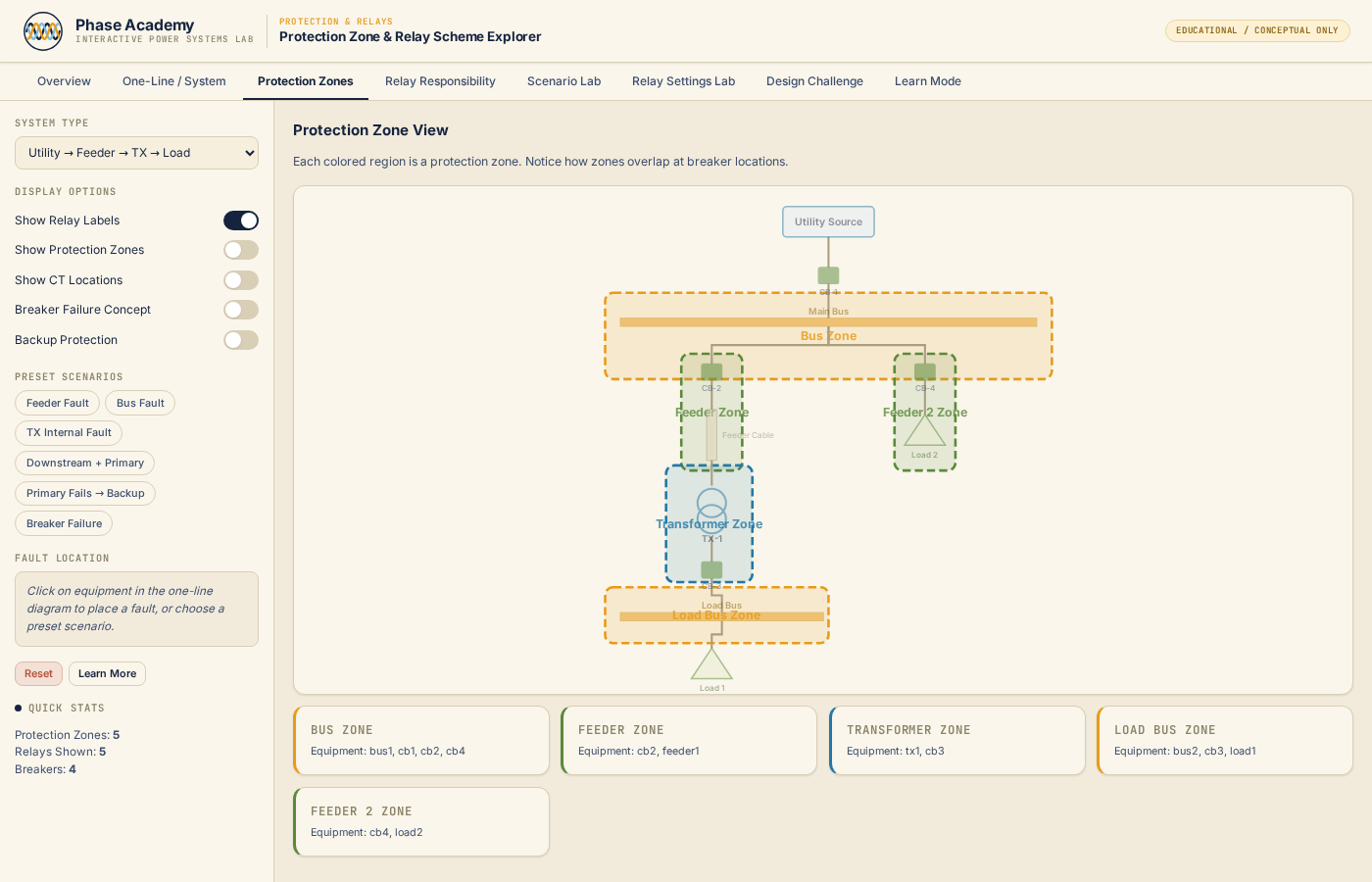

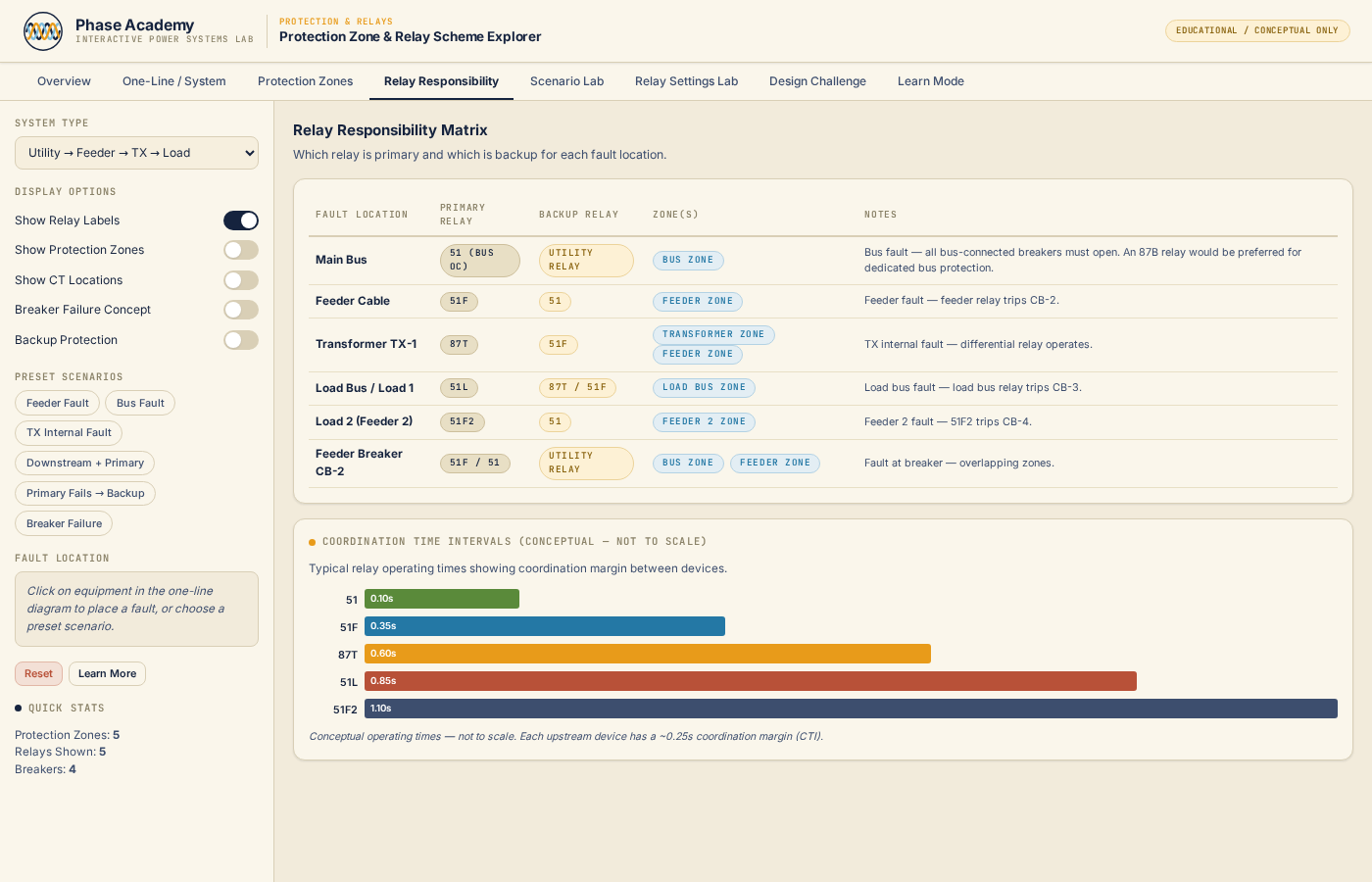

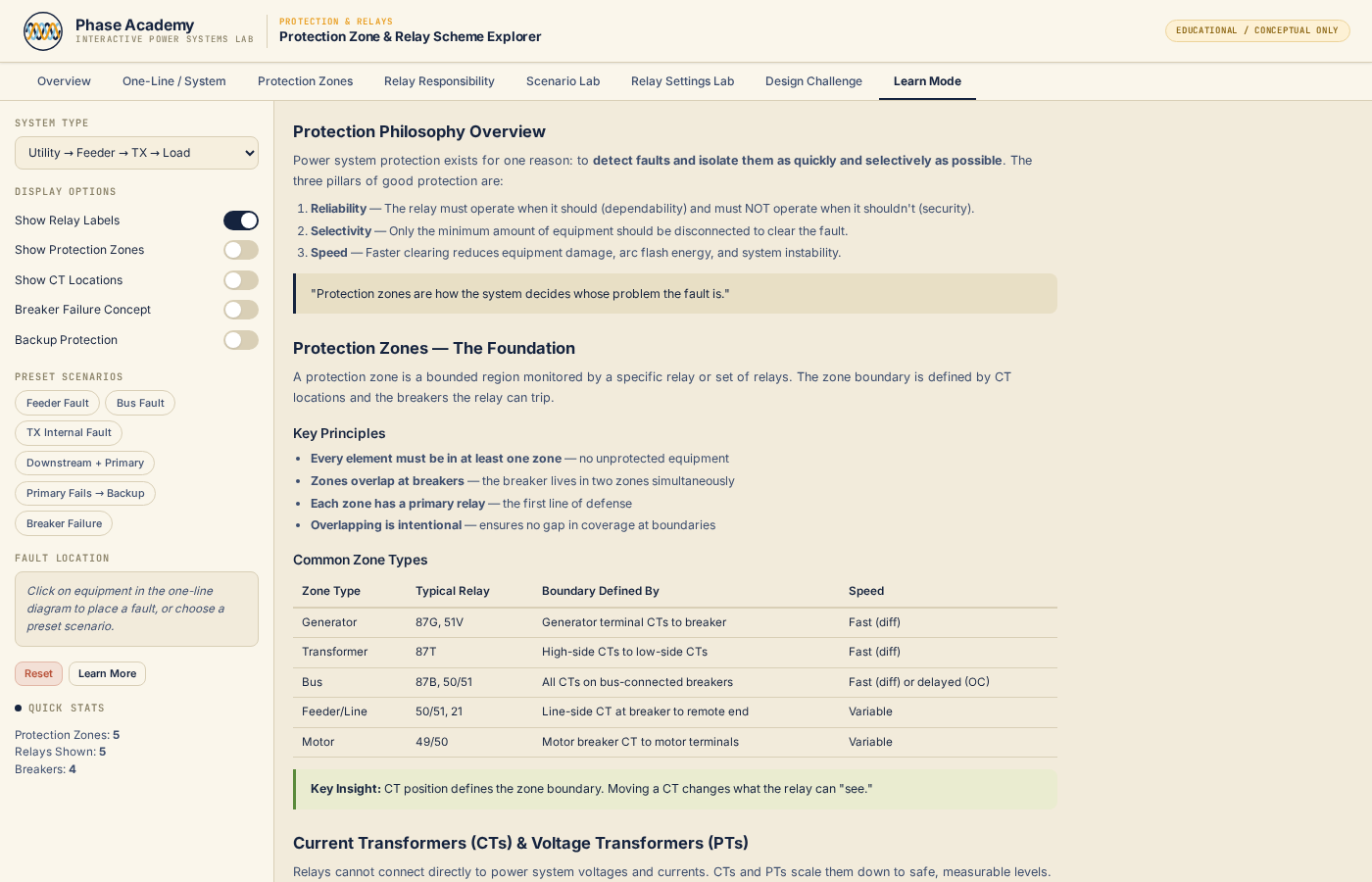

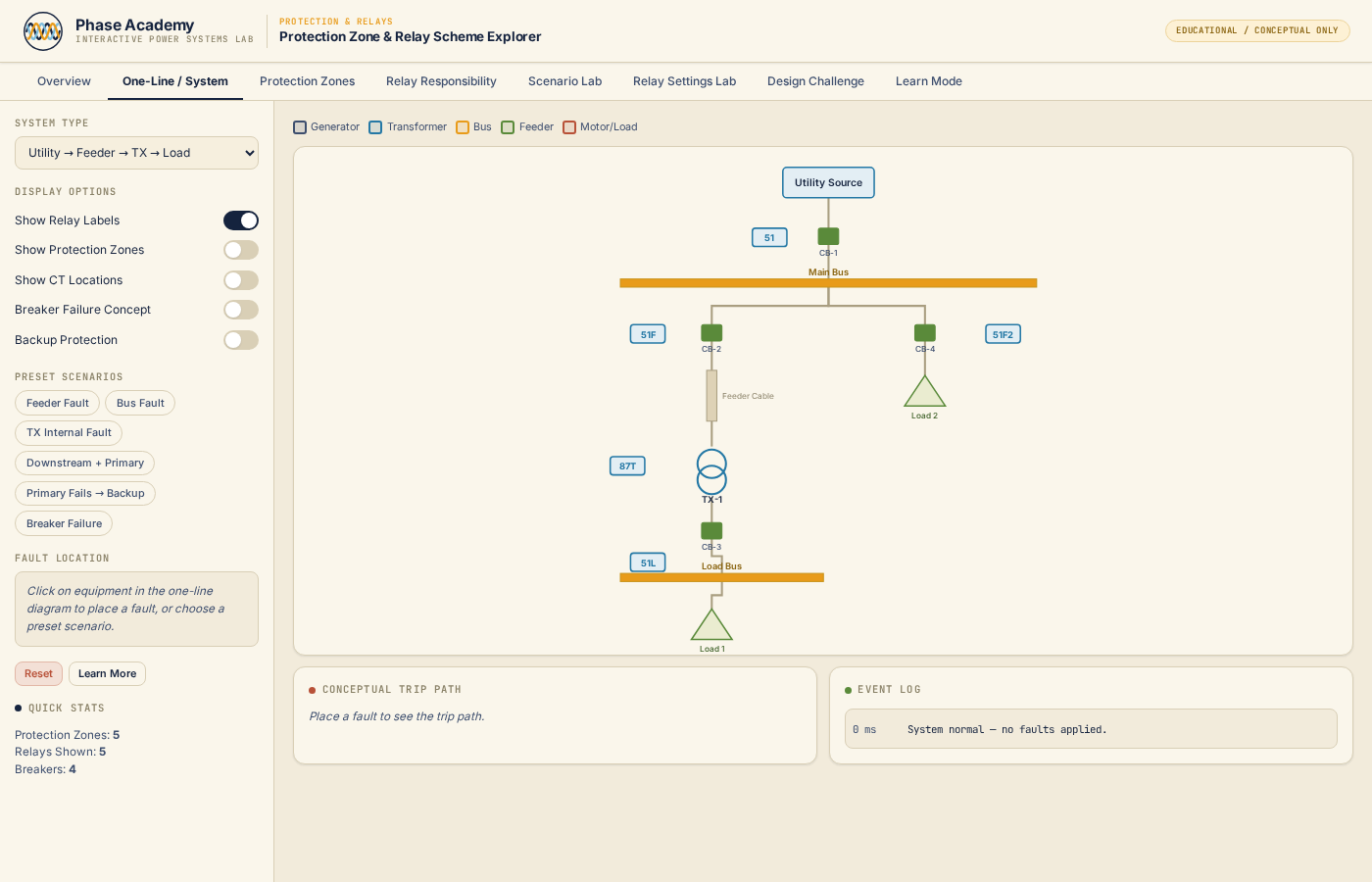

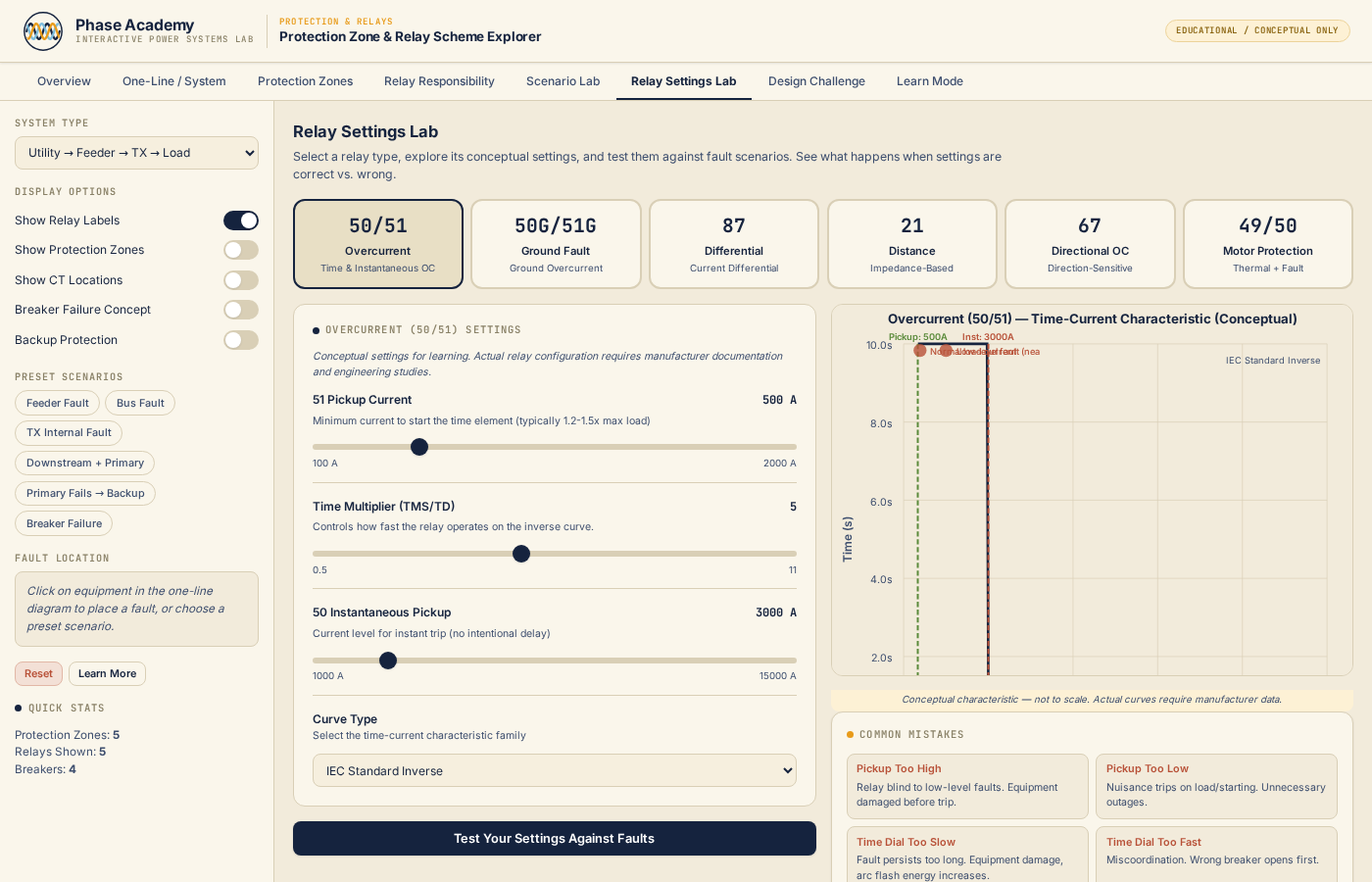

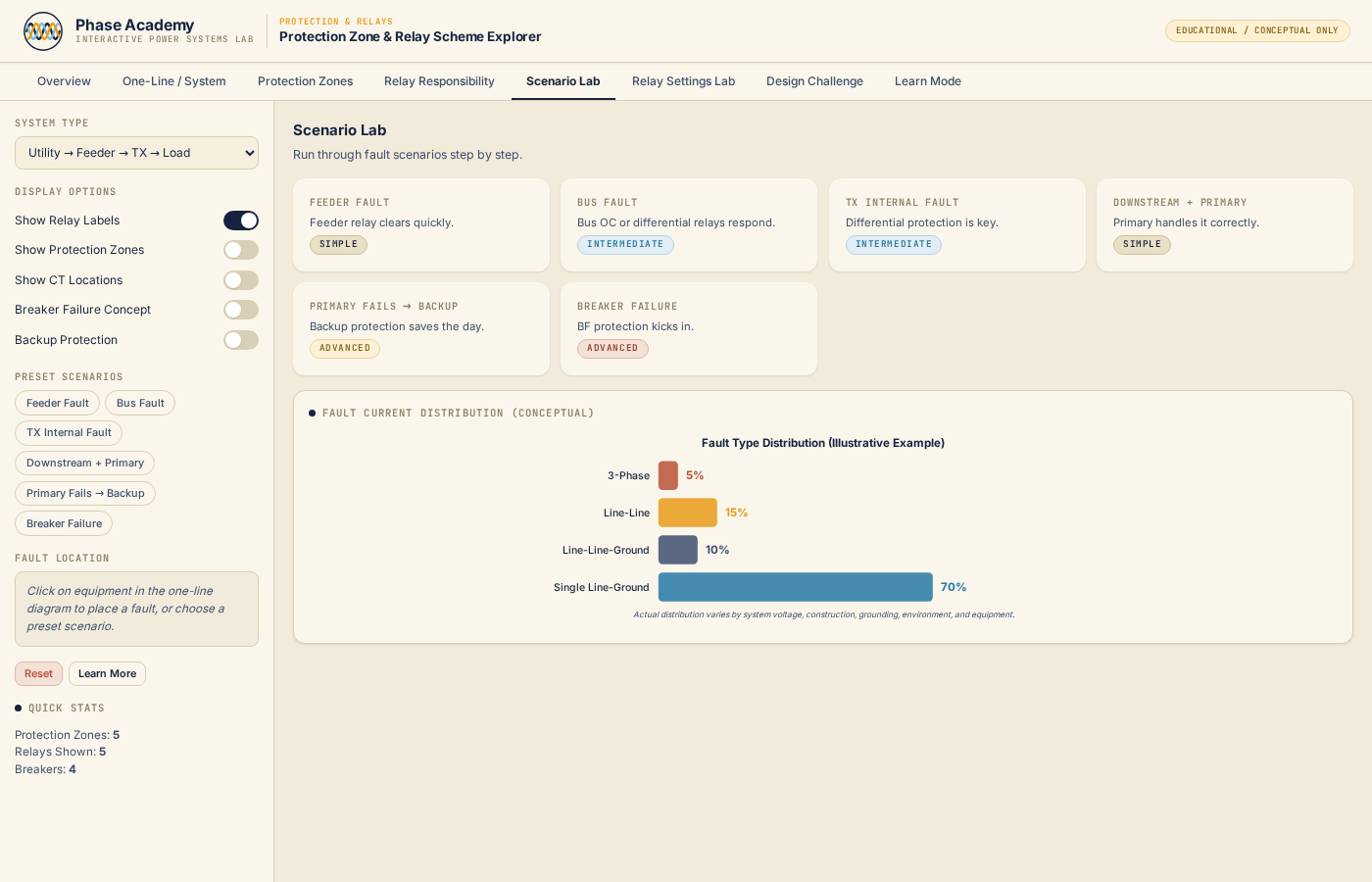

Protection engineering is one of the most consequential disciplines in power systems, and understanding which relay trips for which fault — and which backup trips if the primary fails — requires a mental map of zone overlap, relay reach, and coordination hierarchy that is difficult to build from textbook reading alone. This explorer builds that map visually. Choose a system topology (Utility→Feeder→Transformer→Load, Main-Tie-Main Lineup, Simple Substation, or Feeder with Motor Load), then explore the protection zone diagram showing every relay's coverage area and responsibility boundary. The Settings Lab tab lets you adjust relay settings and see how pickup and time-dial changes affect coordination. The Scenario tab injects six guided fault events — Feeder Fault, Bus Fault, Transformer Internal Fault, Downstream + Primary, Primary Fails → Backup, and Breaker Failure — and shows which relays operate, which are restrained, and what the sequence of events looks like. The Challenge tab presents protection design problems with graded results. The Responsibility tab maps each relay ANSI function to the equipment it protects.
App preview

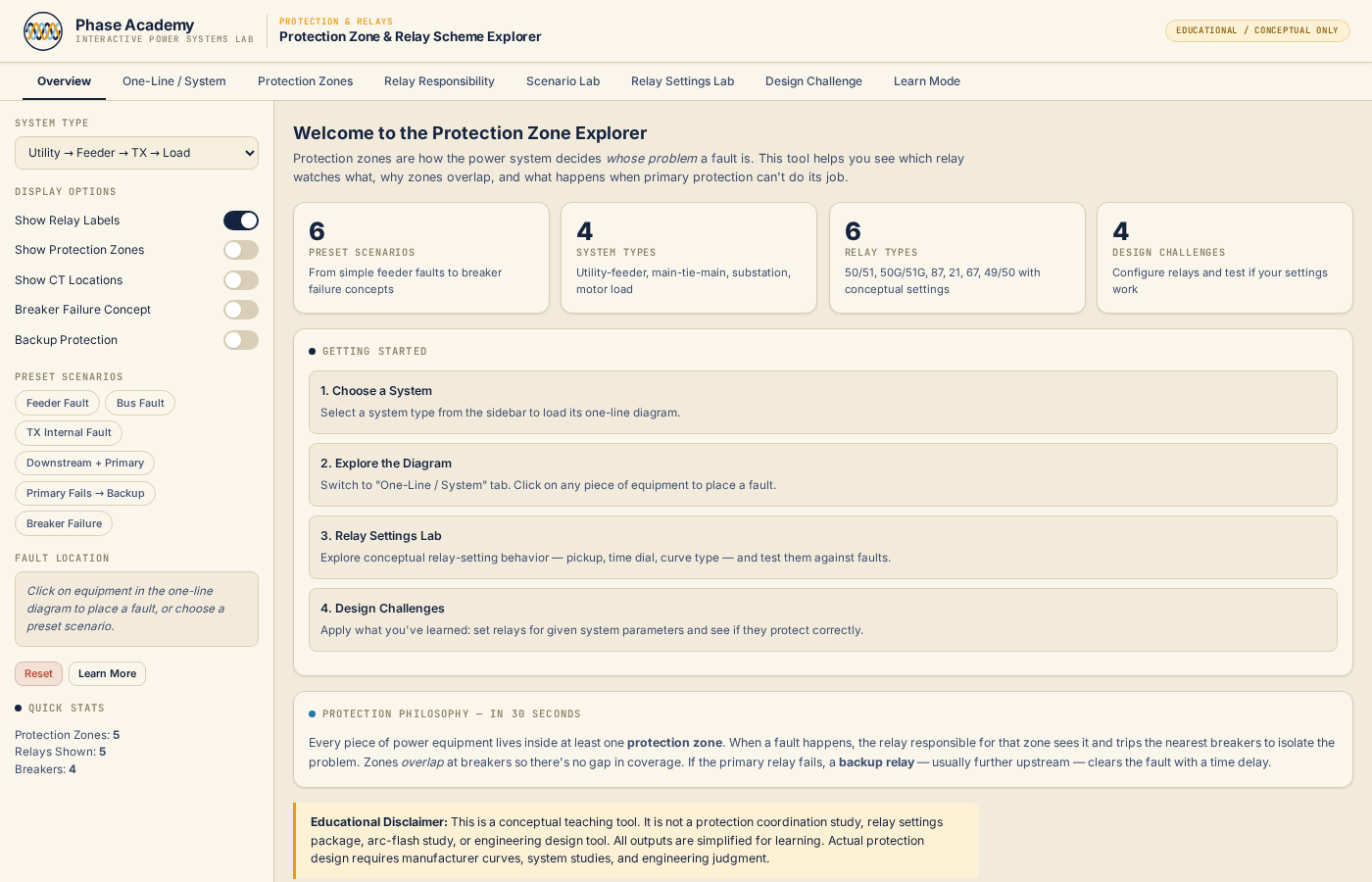

A live look at the app you'll launch — every control on the left drives the visualizations on the right in real time.
Inside the lab
Example data — not a real field report
What you'll do
- 01Draw and describe the protection zone boundaries for feeder, transformer, and bus protection in a simple substation
- 02Explain why adjacent protection zones intentionally overlap and how overlap prevents unprotected gaps
- 03Trace the sequence of relay operations for a feeder fault, bus fault, and transformer internal fault
- 04Describe the breaker failure scenario and identify which backup protection operates if a primary breaker fails to clear
- 05Adjust relay pickup and time-dial settings in the Settings Lab and predict the effect on coordination margin
- 06Identify which ANSI relay functions are assigned to each protection zone in a Main-Tie-Main lineup
Try a guided scenario
Change pickup and time dial and observe operating behaviour.
Relay fundamentals · Protection & Relay CoordinationNo sign-in required. Progress is saved on this device.
What this lab is not
- Not a design document, stamped calculation, or approval record.
- Not a substitute for engineering analysis by a licensed professional.
- Not a relay setting file and not a coordination study of record.
- Not connected to live equipment and not a safety device.
Calculation basis
References IEEE. Results are computed from the entered inputs and cited back to the referencing clause or table number — no code text or table is reproduced verbatim.
Simplifying assumptions are stated in the lab itself; where a model is intentionally conceptual, the lab says so rather than implying study-grade accuracy.
Standards basis: Standards-aware. Validation state: Automated checks only (last checked 2026-08-15).
Who it's for
Tags
- CATEGORY
- Protection & Relays
- DIFFICULTY
- Advanced
- AVAILABILITY
- Available
- VALIDATION
- Automated checks only
- STANDARDS BASIS
- Standards-aware
- VERSION
- v2.0
- LAST CHECKED
- 2026-08-15
- REVIEWER OF RECORD
- Unassigned — pending licensed PE technical review
- EST. TIME
- 25–45 min
