Why Relay Coordination Matters

A protection system does not just trip equipment. It decides what should trip, what should wait, and how much of the system can safely stay online. A protection system is not just a collection of breakers, fuses, relays, current transformers, and trip coils — it is a decision-making system. When something goes wrong, it has to answer three questions very quickly: Where is the problem? How severe is the problem? What is the smallest part of the system we can disconnect to make it safe?

Relay coordination is the discipline of making sure those answers happen in the right order. The simple version: the protective device closest to the fault should clear the fault first, while upstream devices wait long enough to act only as backup. That idea is often called selectivity. It keeps a small electrical problem from becoming a large outage.

Enlarge

A well-coordinated system behaves like a building fire alarm response. If a small trash-can fire starts in one room, you want the sprinkler in that room to activate — not the entire building shut down. Protection coordination is the electrical version of localizing the response. Faults are violent events: fault current can damage cables, buswork, transformers, generators, motors, switchgear, and people. But unnecessary trips are also dangerous. NERC describes coordinated protection systems as a way to isolate faulted equipment, reduce the risk of instability or cascading, and leave the rest of the bulk electric system operating.

The plain-language idea

Imagine a row of dominoes. Each domino is a protective device:

Load breaker → Feeder relay → Transformer relay → Main relay → Utility relay

A fault occurs near the load. The load breaker should trip. The feeder, transformer, main, and utility relays should watch. They are not asleep — they are backup. If the load breaker fails, the feeder relay trips. If the feeder relay fails, the transformer relay trips, and so on. This is layered defense. The goal is not to prevent upstream devices from ever operating; it is to make sure they operate only when they are supposed to. That is coordination.

Coordination versus selectivity

These two words are often used together, but they are not exactly the same. Selectivity is the outcome: only the faulted part of the system is isolated. Coordination is the engineering process — selecting device types, pickups, delays, curves, logic, and communication schemes so that selectivity happens during real events.

Selectivity is the behavior you want. Coordination is how you design it.

The NEC uses selective coordination language for systems where continuity matters — emergency systems (NEC 700.32), legally required standby (701.32), and critical operations power systems (708.54). These OCPDs must be selectively coordinated with both supply-side and load-side OCPDs, with reevaluation required when devices are replaced or systems are modified.

Why relay coordination matters

Power systems are interconnected. A fault at one point can be seen by many devices. A short circuit on a motor feeder may produce current through the MCC main, the transformer secondary breaker, the transformer primary relay, the substation feeder relay, and sometimes remote sources, generators, or inverter-based resources. Every device in that path may detect abnormal current. Without coordination, multiple devices may decide, "That fault is mine." That is where the trouble begins.

• A local cable fault can trip an entire lineup.
• A single motor failure can take down a process bus.
• A downstream panel fault can trip a service main.
• A fault on one feeder can remove two feeders.
• A mis-set relay can cause an unnecessary generator trip.
• A backup element can operate before the primary element.

A simple example

Consider a small radial system. A fault occurs in the load cable downstream of a panel breaker. In a selective system, the panel breaker trips first. The feeder breaker sees the fault current but waits. The main breaker waits longer. The utility-side relay waits longest.

Utility → Main breaker → Transformer → Feeder breaker → Panel breaker → Load
                                                            ⚡ fault here

Now imagine the feeder breaker is set too fast. The same fault occurs, but the feeder breaker trips before the panel breaker clears. The fault may be small and local, but the outage becomes larger than necessary — instead of losing one load, you lose the whole feeder. Protection is not only about tripping. Protection is about tripping the right thing.

The three goals that fight each other

Protection engineers constantly balance three competing goals:

• Speed — clear faults quickly to reduce equipment damage, arc-flash energy, voltage depression, and instability.
• Selectivity — trip the smallest possible part of the system.
• Sensitivity — detect faults even when fault current is low, remote, or resistive.

Improving one can hurt another. Very fast trips lose selectivity. Adding delays for selectivity clears faults too slowly. Very sensitive relays trip for load, motor starting, or inrush. Less sensitive relays may miss real faults. Relay coordination is the art of finding the practical compromise.

Primary protection and backup protection

Every protective device has a zone of responsibility — a feeder relay for its feeder, a transformer differential for the transformer zone, a bus differential for the bus, a line distance relay for its transmission line. But power systems can never rely on one device. Breakers, trip coils, DC batteries, CT circuits, relay logic, and communication channels all fail. Settings can be wrong. So backup is required.

• Local backup — another device at or near the same location clears the fault if the primary device or breaker fails.
• Remote backup — an upstream or remote device clears the fault if local protection fails.

Backup protection is supposed to be slower or less preferred than primary protection. It is the safety net, not the first move. A major coordination mistake is accidentally making backup protection faster than primary.

The protection chain

A protection operation is not one thing. It is a chain:

1. The fault occurs.
2. Current and voltage change.
3. CTs and PTs/VTs transform those signals.
4. The relay measures the signals.
5. The relay decides whether the condition is inside its zone.
6. The relay times according to its curve or delay.
7. The relay output contact asserts.
8. The trip coil energizes.
9. The breaker mechanism opens.
10. The arc inside the breaker extinguishes.
11. Current actually stops.
12. Other relays reset or continue timing.

Time-current characteristic curves: the protection map

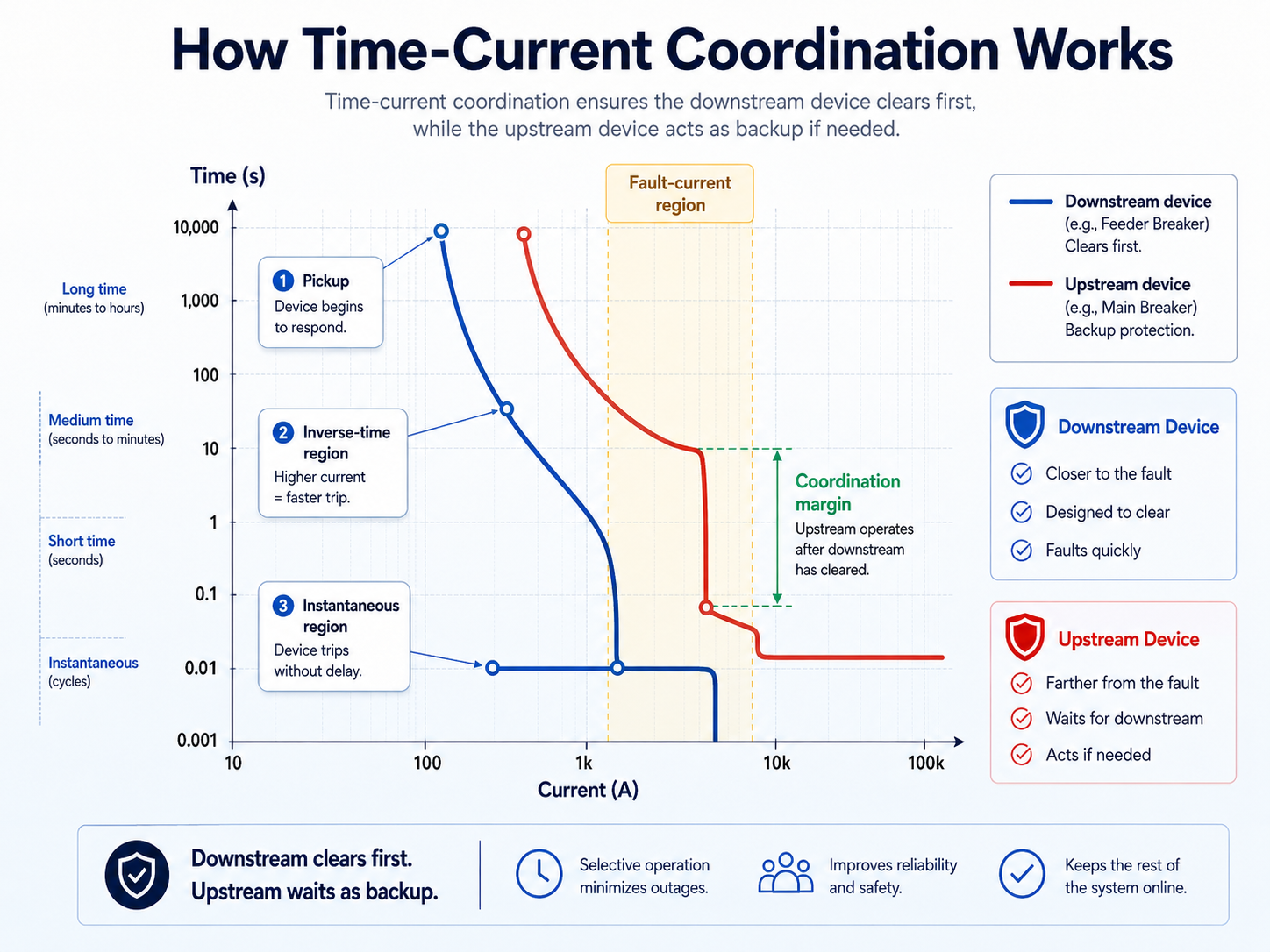

The classic way to visualize coordination is a time-current characteristic (TCC) curve. The horizontal axis is current; the vertical axis is time to operate. The farther right, the higher the current. The farther down, the faster the device operates. A downstream device curve should generally sit below and to the left of the upstream device curve. That vertical gap between the downstream clearing time and upstream operating time is the coordination margin.

Enlarge

Time
 ↑
 |            Upstream relay
 |             /
 |            /
 |           /
 |          /
 |     Downstream relay
 |       /
 |      /
 |_____/________________→ Current

Pickup: the threshold where the relay wakes up

Pickup is the value at which a protective element begins to operate. Below pickup, the relay does not time toward a trip. Above pickup, timing begins. Pickup must be high enough to avoid tripping for normal load, overloads, motor starting, and inrush — but low enough to detect real faults, including low-current faults at the far end of a feeder. Set pickup too low and the relay becomes too sensitive; set it too high and it may miss faults.

Time delay: the waiting period that creates selectivity

If every relay tripped instantly, every upstream relay would trip at the same time as the downstream relay. Time delay creates hierarchy. Too little delay causes miscoordination; too much delay increases damage and arc-flash energy. The correct delay depends on downstream clearing time, upstream timing accuracy, breaker interrupting time, relay reset behavior, CT performance, and site coordination criteria.

Inverse-time protection: bigger faults trip faster

Many overcurrent relays use inverse-time curves: higher current means shorter trip time. At 2× pickup it may take a long time; at 10× pickup it may trip much faster. This matches equipment thermal behavior — heating scales with current squared over time. Common curve families include standard inverse, very inverse, extremely inverse, long-time inverse, and moderately inverse. Extremely inverse curves often coordinate well with fuses, while very- or standard-inverse curves are common for feeder coordination.

Instantaneous protection: fast but dangerous to coordination

An instantaneous overcurrent element trips with little or no intentional delay once current exceeds its pickup. It is attractive because it is fast — fast clearing reduces equipment damage and incident energy. But it can destroy selectivity if set incorrectly. If a feeder relay's instantaneous pickup is 4,000 A and a downstream panel fault produces 5,000 A through that feeder relay, the feeder trips instantly even though the panel breaker should have cleared the fault. Instantaneous protection is not bad. It is powerful. Like any powerful tool, it must be aimed carefully.

What miscoordination looks like

Miscoordination means the protection system does not operate in the intended order. It can happen several ways:

• The upstream device trips before the downstream device — wider outage than necessary.
• Upstream and downstream trip at the same time — unnecessary outage area and hidden fault location.
• The intended device does not trip, so backup trips later — cleared, but slower than desired.
• A relay trips for a fault outside its zone (overreach or sympathetic tripping).
• A relay fails to trip for a fault inside its zone (pickup too high, wrong direction, short reach, CT saturation).
• A device trips for load rather than fault (motor starting, inrush, cold-load pickup).

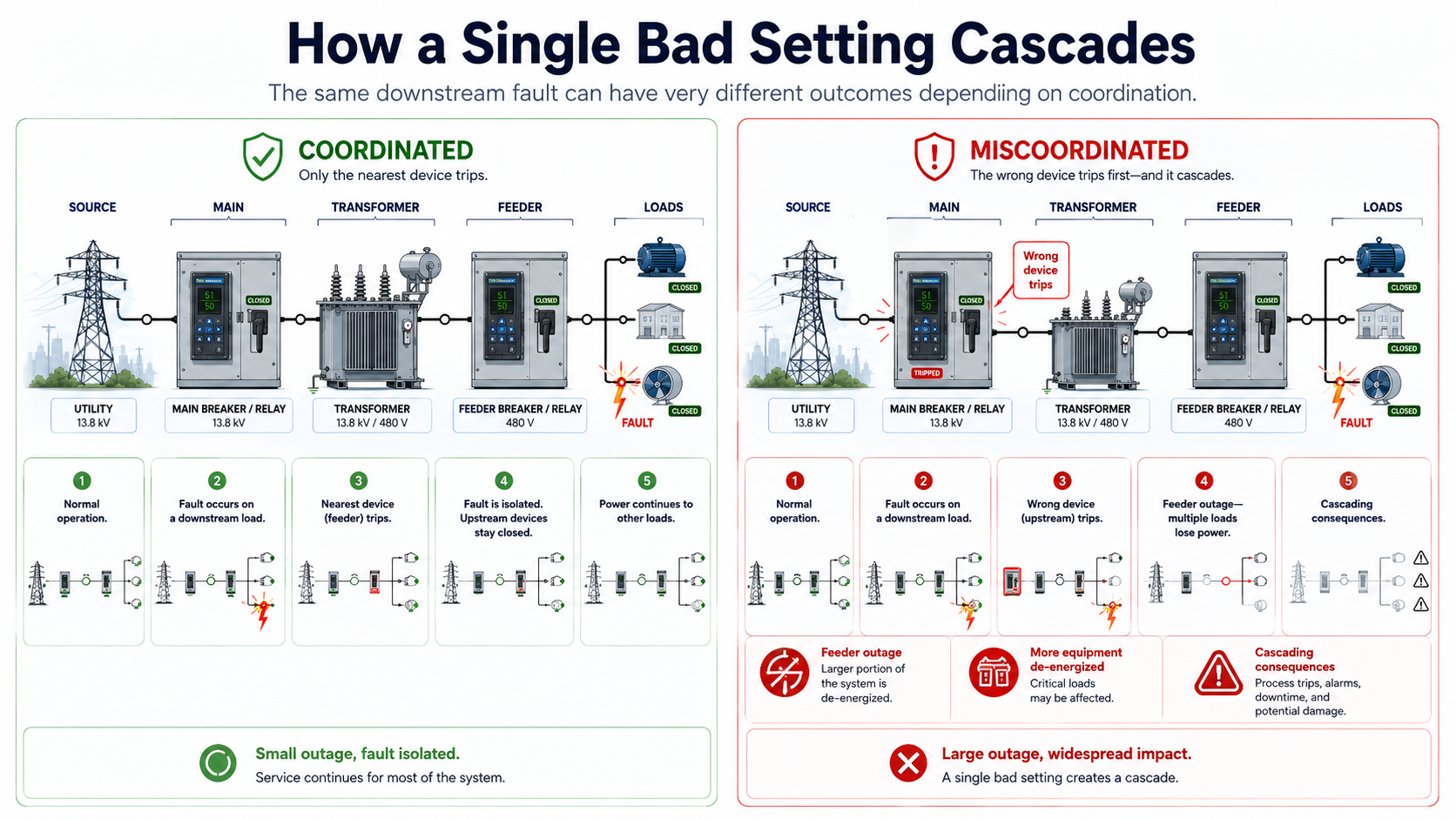

A single bad setting can cascade

A single relay setting may look small on paper. But in a power system, settings are connected. Change one pickup and you change sensitivity. Change one time dial and you change selectivity. Enable one instantaneous element and you may bypass the intended coordination margin. Change one CT ratio and every secondary current calculation changes. Change one transformer impedance in the model and fault-current calculations change.

Once the wrong device trips, power flows redistribute. Other lines load up. Voltages sag. Generators accelerate or decelerate. Motors stall. Inverter controls react. Backup elements may see abnormal current or impedance. What began as a local fault becomes a system event. NERC PRC-027-1 emphasizes that protection settings should operate in the intended sequence during faults, and that short-circuit model data must be reviewed and updated because fault-current calculations are the basis for relay settings and coordination studies.

Enlarge

The "small typo" problem

Relay settings are full of units, ratios, multipliers, curve names, and logic bits. A small error can be enormous:

• 0.5 seconds entered as 5 seconds.
• 5 cycles entered as 5 seconds.
• A primary amp value entered as secondary amps.
• A CT ratio of 600:5 used where the installed CT is 1200:5.
• A ground relay enabled on the wrong residual input.
• An instantaneous element accidentally enabled or left at default.

Common causes of miscoordination

Directional issues in multi-source systems

Loops, paralleled transformers, tie breakers, distributed generation, solar, BESS, industrial cogen, and transmission lines with sources at both ends all change the simple radial picture. Current can flow from more than one direction. A nondirectional relay in a multi-source system can trip for faults it should ignore. Directional overcurrent protection asks not just "How much current?" but also "Which way?"

Distance relay coordination

Distance relays estimate fault location by measuring apparent impedance (Z = V/I) and typically use zones — Zone 1 for most of the line with no intentional delay, Zone 2 reaching past the remote terminal with delay, Zone 3 for remote backup. The danger is overreach: a Zone 2 or 3 that reaches too far may operate for a fault on another line. Distance coordination must consider line and source impedance, mutual coupling, load encroachment, power swings, infeed, fault resistance, and remote terminal protection.

Differential protection: selective by zone

Differential protection compares current entering and leaving a defined zone. For external faults, current in ≈ current out. For internal faults, the difference is large. Transformer, bus, generator, and line differential relays can trip very fast because they are not relying only on time grading. But they must remain secure for CT saturation, transformer inrush, tap changers, phase shifts, zero-sequence current, and ratio mismatch — and they still need backup.

Ground fault coordination

Ground fault current can be very different from phase fault current — high in solidly grounded systems, intentionally limited in resistance-grounded systems, very low in high-resistance- or ungrounded systems. Ground relays are often more sensitive than phase relays, which creates coordination challenges. A phase overcurrent study alone does not prove ground fault coordination.

Transformer inrush, motor starting, and load encroachment

High current does not always mean fault. It can be inrush, motor starting (five to seven times FLC during acceleration), cold-load pickup, load restoration, or external fault contribution. Protection must distinguish among them using harmonic restraint, inrush blocking, careful pickup selection, and time coordination.

CTs, breakers, and human factors

Current transformers are the eyes of the relay. Wrong ratio, wrong polarity, saturation, open circuits, or mismatched CTs in differential schemes can all cause miscoordination that looks clean on paper. Breaker failure protection handles the case where a relay decides correctly but the breaker does not open. And many protection problems are simply process failures: copied settings, wrong file loaded into a device, missed drawing revision, temporary jumper left installed, or a setting group not restored after testing.

How a coordination study is usually done

A coordination study is more than plotting curves. It includes system modeling, short-circuit calculations, equipment ratings, relay setting calculations, peer review, field verification, and documentation. Good documentation answers what equipment is protected, what configurations were studied, what fault currents and CT ratios were assumed, what curves were selected, what margins were accepted, what compromises were made, and what should happen for faults at each location. Documentation turns protection from tribal knowledge into maintainable engineering.

The beginner's mental checklist

When looking at a protection system, ask:

• What is the protected zone?
• What device should trip first for a fault in that zone?
• What device backs it up?
• How does the backup know to wait?
• What happens if the breaker fails?
• What is the minimum and maximum fault current?
• Can normal load or starting current look like a fault?
• Are there multiple sources?
• Are ground faults coordinated separately?
• Do the field devices match the study?
• Has the system changed since the settings were issued?

The advanced engineer's checklist

• Maximum and minimum short-circuit cases.
• Phase, ground, and negative-sequence elements.
• CT saturation, transient performance, DC offset, and asymmetrical current.
• Breaker interrupting and clearing times; relay timing tolerances.
• Fuse total clearing versus minimum melting bands.
• Damage curves for cable, transformer, motor, generator, and switchgear.
• Arc flash impact of intentional delays.
• Load encroachment, cold-load pickup, inrush, and overexcitation.
• Motor starting and reacceleration; grounding transformer behavior.
• Directional polarization; distance reach and infeed; mutual coupling.
• Communications-assisted scheme logic; breaker failure initiation and timers.
• Reclosing sequence and fuse coordination; transfer schemes and alternate sources.
• Distributed generation and inverter fault response.
• Relay setting group selection and SCADA control/lockout logic.
• Commissioning test evidence and event report validation.

The lab connection: run the coordination failure yourself

Enlarge

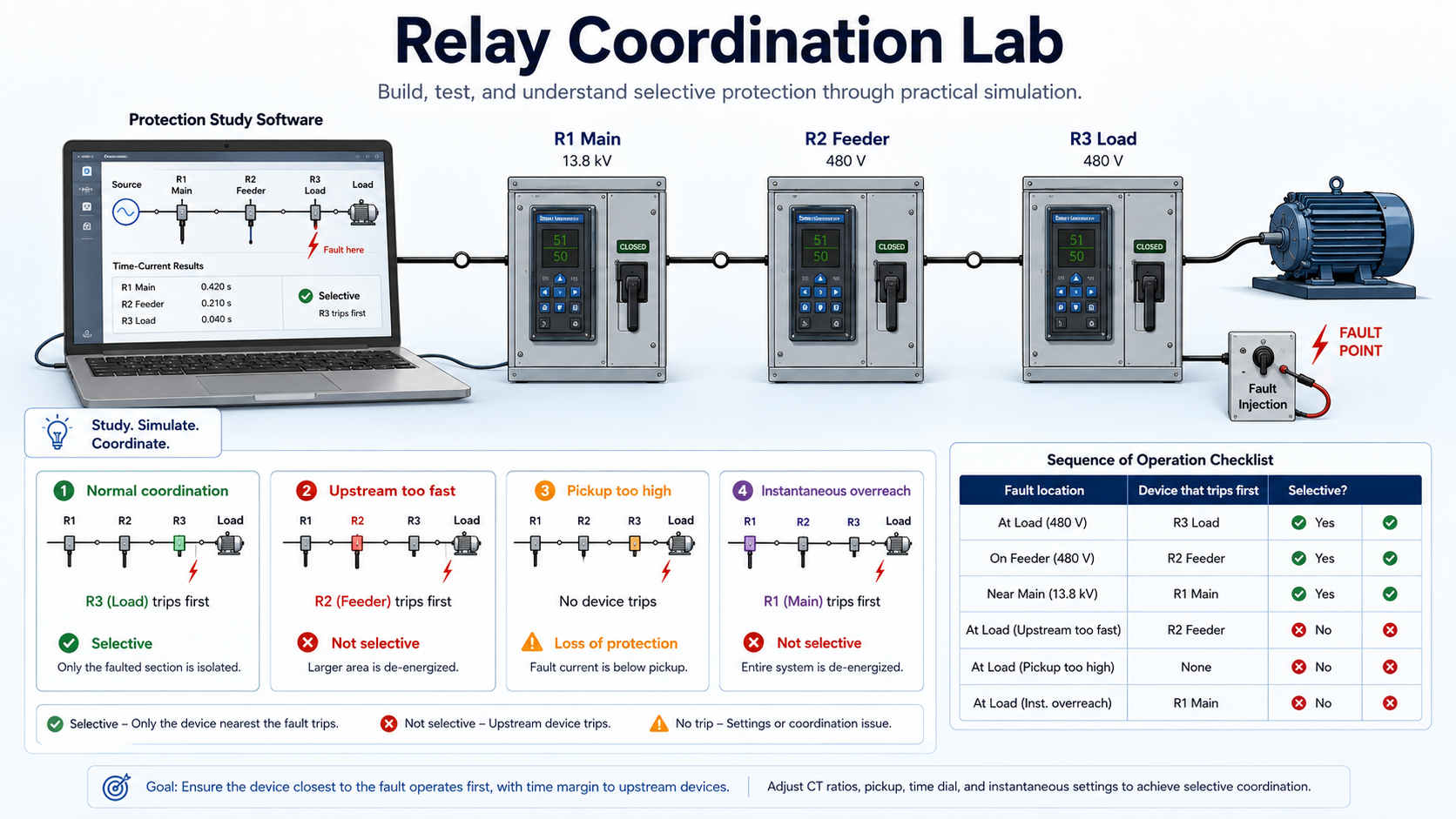

Lab goal

Build a three-level overcurrent coordination stack and intentionally create miscoordination by changing one setting at a time.

Source → R1 Main → R2 Feeder → R3 Load → Fault Location

R3 is closest to the fault. R2 backs up R3. R1 backs up R2. For a fault downstream of R3, R3 should pick up and trip first, while R2 and R1 see the fault but wait.

Faults to run

• A fault near the load.
• A fault between R2 and R3.
• A fault between R1 and R2.
• A high-current close-in fault.
• A low-current far-end fault.

For each, record fault current at each relay, pickup status, operating time, which device trips first, and whether the result is selective.

Intentional miscoordination tests

Discussion questions

• Why did the wrong relay trip — pickup, time delay, curve shape, instantaneous, or system model?
• Could the issue be fixed with settings only?
• Would a directional element, ZSI, or differential protection help?
• What happens to arc-flash energy if you increase upstream delay? To selectivity if you decrease it?

The big takeaway

Relay coordination matters because the power system must fail gracefully. Faults will happen. Equipment will fail. Cables will be damaged. Animals, weather, insulation breakdown, human error, and aging equipment will create abnormal conditions. The question is not whether the system will see a fault — it is whether, when the fault happens, the protection system isolates only what it must.

A bad setting can turn a local fault into a feeder outage. A bad coordination margin can turn a feeder outage into a bus outage. A bad model can make every downstream setting look correct while the real system behaves differently.

Protection coordination is how engineers teach the power system the order of response:
