Understanding Available Fault Current

What “available fault current” actually means at a service entrance — and why utility data matters.

FIELD NOTE·18 min read·
Available fault current starts with the source and transformer, then appears at a specific point such as the service entrance.

A normal electrical service might be rated 200 A, 400 A, 1200 A, or 3000 A. That number tells you how much current the service is intended to carry continuously or under normal load conditions.

Available fault current is something very different.

Available fault current asks:

It is not the normal operating current. It is not the size of the main breaker. It is not the ampacity of the service conductors. It is the prospective short-circuit current available at a specific point in the electrical system.

Load current is what the building asks for. Fault current is what the source can deliver.

At a service entrance, available fault current is usually dominated by the utility source, the utility transformer, the transformer impedance, the service conductor impedance, and sometimes motor or generator contribution from the customer side. That is why utility information matters so much.

Normal load current follows the intended path. Fault current rushes through an unintended low-impedance path.

The simple picture

Imagine a water system.

A normal load is like opening a faucet. Water flows through the intended path. The pipe, valve, and faucet all limit the flow.

A short circuit is like a pipe breaking wide open near the water main. Now the water is not flowing through the faucet anymore. It is flowing through the easiest path it can find. The only things limiting the flow are the pressure of the water main and the resistance of the pipe between the main and the break.

Electrical systems behave similarly. Voltage is like pressure. Impedance is like restriction. During a short circuit, the load impedance is mostly bypassed. The current is limited mainly by the impedance of the source, transformer, conductors, bus, and fault path.

So available fault current is basically: how much current can the source push through the impedance between the source and the fault?

First definition: what is a fault?

A fault is an unintended electrical connection.

  • A phase conductor touching another phase conductor.
  • A phase conductor touching grounded metal.
  • A phase conductor touching neutral.
  • A conductor insulation failure inside equipment.
  • A tool, fish tape, loose wire, rodent, water path, or failed component creating an unintended current path.

Not every fault is the same. Some are nearly solid metal-to-metal connections. Some involve an arc through air. Some involve a high-resistance path through damaged insulation, water, soil, or carbonized material.

For available fault current calculations, engineers often begin with the idea of a bolted fault — a theoretical low-impedance short circuit, as if the conductors were bolted together.

What does “available” mean?

The word available is important.

It does not mean the current is flowing right now. It means the current is available from the source if a fault occurs.

Think of it like horsepower in a truck engine. The engine may be idling at a stoplight, but the available horsepower is still there.

What does “at the service entrance” mean?

The service entrance is where the building's electrical system receives power from the utility system. In practical field language, people often care about the available fault current at the line terminals of the service equipment.

Utility substation
      ↓
Utility primary feeder
      ↓
Utility transformer
      ↓
Service conductors / service lateral
      ↓
Service entrance equipment
      ↓
Main distribution
      ↓
Feeders
      ↓
Panels, MCCs, equipment

The available fault current changes as you move along that path. It is usually highest near the source and lower downstream because every conductor, transformer, busway, and device adds impedance.

Available fault current is location-specific. Always ask: available where?
Available fault current is not one number for the whole building. It depends on exactly where the fault occurs.

Why this number matters

Available fault current matters because electrical equipment must be able to survive or interrupt the current that can appear at its terminals during a fault.

  • Breaker and fuse interrupting rating — must be able to interrupt the available fault current.
  • Equipment SCCR — short-circuit current rating an assembly can withstand at a given voltage.
  • Switchgear and bus bracing — fault current produces tremendous magnetic forces.
  • Arc-flash studies — available fault current is one input.
  • Selective coordination and trip settings — devices must trip in the correct sequence.

A 400 A service can have 40,000 A of fault current

The ampere rating of a service tells you what it is intended to carry as load. The available fault current tells you what it may have to withstand during a short circuit.

Normal load conditionFault condition
Current flows through intended loadsCurrent flows through an unintended path
Limited by ordinary loadsLimited mostly by source and circuit impedance
Tens, hundreds, or thousands of ampsOften thousands to hundreds of thousands of amps
Expected and continuousAbnormal and dangerous
400 A, 480Y/277 V, 3-phase
65 kA SCCR
Available fault current: 42,000 A RMS symmetrical
Calculated: 06/29/2026

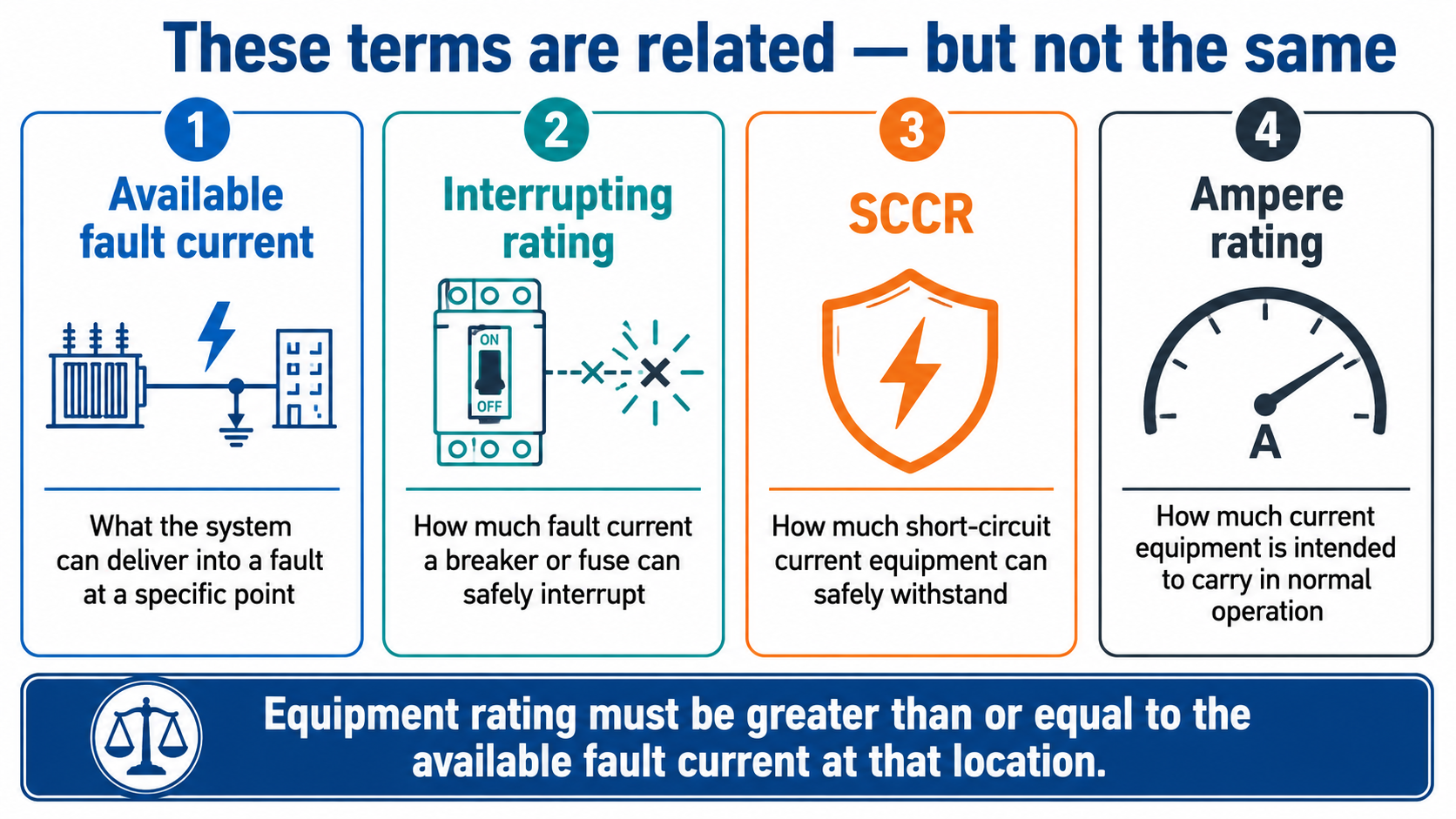

Available fault current vs. interrupting rating vs. SCCR

Available fault current

The current the electrical system can deliver into a fault at a specific point. It is a property of the installation.

Interrupting rating

Applies to devices that open the circuit under fault conditions (breakers, fuses).

SCCR

Applies to equipment or assemblies that must withstand short-circuit current.

Ampere rating

The normal current-carrying size of the equipment.

These terms are related, but they answer different questions. The available fault current at the location must not exceed the applicable equipment rating.

Why utility data matters so much

The utility system is the upstream source. The customer usually does not own or fully know the utility primary feeder, substation configuration, transformer size, transformer impedance, or future utility plans.

The transformer is usually the first big clue

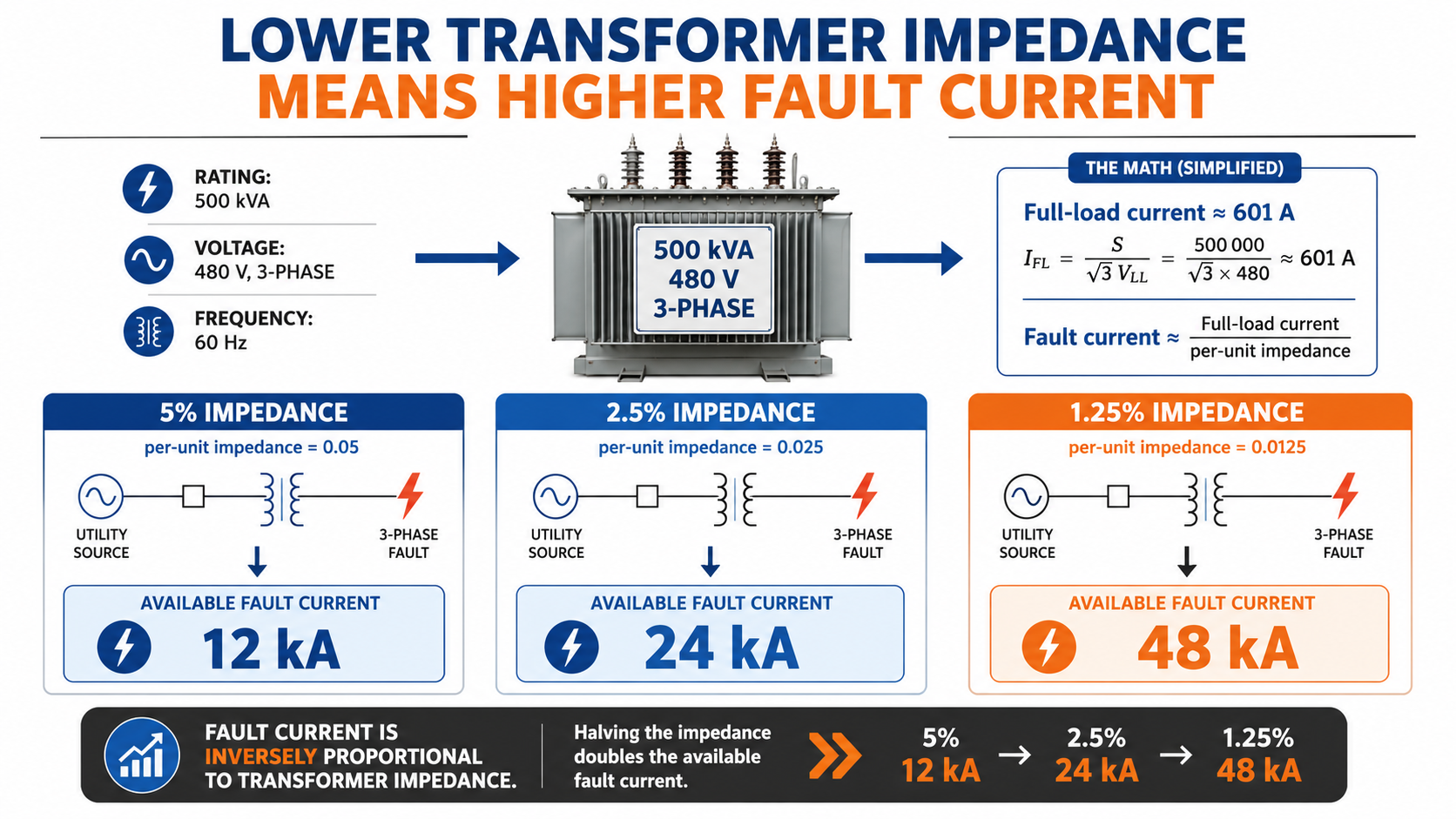

For many services, the utility transformer is the main current-limiting element. The lower the impedance, the more fault current can flow.

Full-load current = kVA × 1000 ÷ (√3 × line-to-line voltage)
Fault current   ≈ Full-load current ÷ Zpu
Zpu             = percent impedance ÷ 100
For the same transformer size and voltage, reducing impedance can dramatically increase available fault current.
I_FL  = 500 × 1000 ÷ (1.732 × 480) ≈ 601 A
Zpu   = 0.05
I_sc  = 601 ÷ 0.05            ≈ 12,020 A

Service conductors reduce fault current

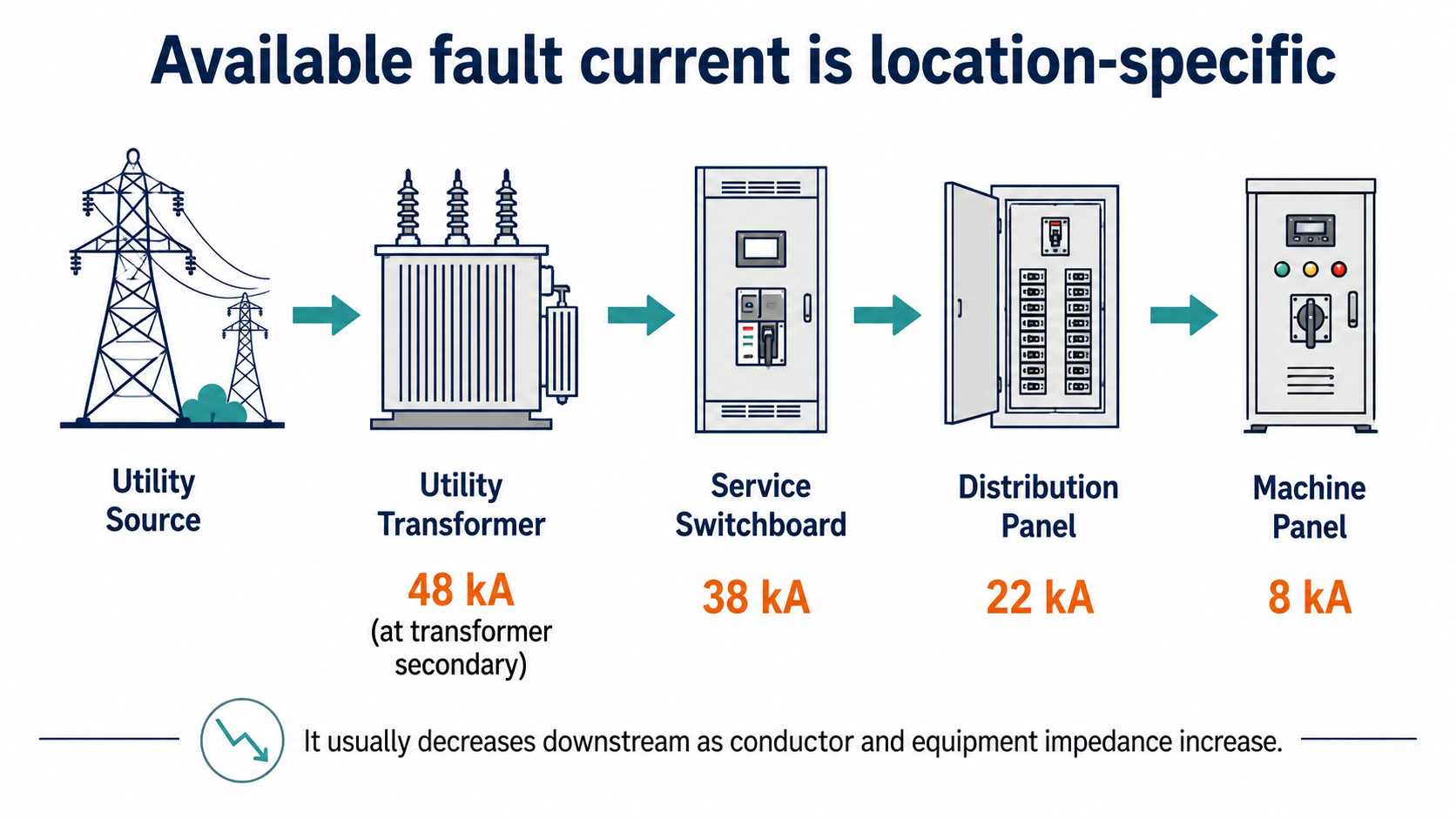

Utility transformer secondary: 48,000 A
      ↓ service conductors add impedance
Service switchboard:           38,000 A
      ↓ feeder conductors
Distribution panel:            22,000 A
      ↓ branch circuit
Machine control panel:          8,000 A

Motors, generators, UPS, PV, and inverter contributions

Large motors can contribute current into a fault for a short time. Modern systems may also include standby generators, PV, BESS, UPS systems, and closed ties.

Maximum vs. minimum fault current

Maximum fault current is used for equipment ratings. Minimum fault current matters because protective devices still need to detect and clear faults quickly.

Bolted fault vs. arcing fault

Bolted fault current helps size equipment. Arcing current helps evaluate arc-flash energy. They are related, but they are not the same thing.

RMS symmetrical, asymmetrical, peak, and X/R

  • RMS symmetrical — AC component used for many low-voltage interrupting ratings.
  • Asymmetrical — includes the DC offset.
  • Peak — highest instantaneous value; creates mechanical stress.
  • X/R ratio — relationship between reactance and resistance.

Practical workflow

  1. Identify the fault point.
  2. Get utility/source data.
  3. Identify transformer data.
  4. Add conductor impedance.
  5. Include motor/generator contribution where applicable.
  6. Calculate maximum available fault current.
  7. Compare against equipment ratings.
  8. Document and label.
  9. Revisit after modifications.

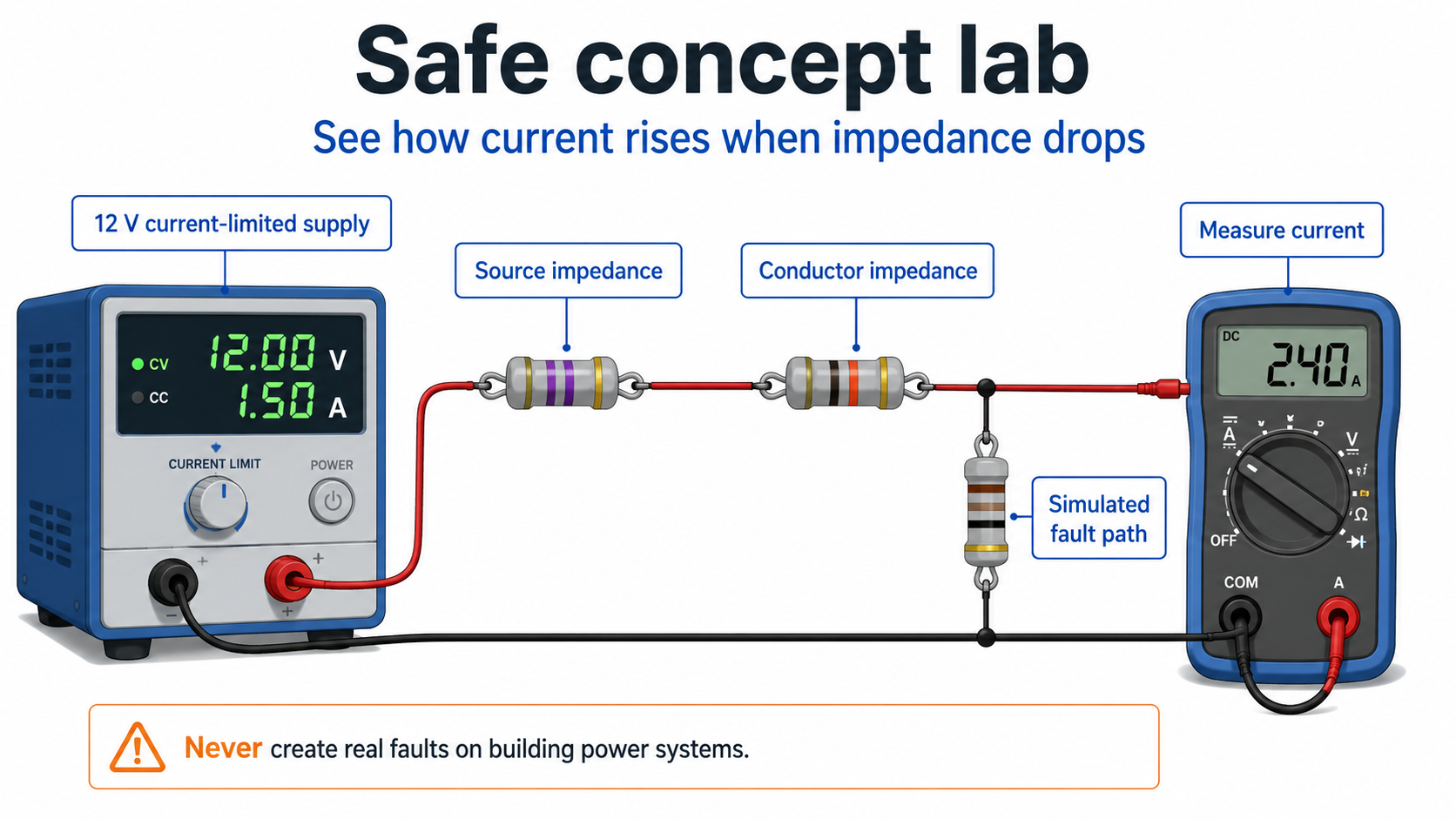

Lab you can actually run: available fault current without dangerous current

A safe low-voltage lab can demonstrate the concept without creating real faults on building power systems.
  1. Normal load: 12 V → source resistor → load resistor → return.
  2. Simulated fault: replace load with a lower-value resistor.
  3. Add conductor impedance with another series resistor.
  4. Compare measured current against I = V ÷ R_total.

Memory anchors

  • Location-specific — always ask: available where?
  • Prospective — what could flow, not what is flowing.
  • Source and impedance determine the value.
  • Equipment ratings must be adequate.

Final plainspoken summary

Available fault current is the electrical system's short-circuit punch at a specific point.

The number matters because every piece of electrical equipment has limits.

Before you trust the gear, know the fault current. Before you trust the fault current, know where the number came from.
