NEC Load Calculation Practice

Enlarge

A service load calculation can feel like someone handed you a phone book, a calculator, and a deadline.

There are tables. Exceptions. Demand factors. Nameplates. Continuous loads. Heating loads. Cooling loads. Motors. Dryers. Ranges. EV chargers. Existing-load methods. Optional methods. Standard methods. Neutral calculations. Then, after all that, someone asks the question that started the whole mess:

“Can this service handle the load?”

This field note is about learning how to answer that question without getting buried.

The trick is not to memorize every NEC table at once. The trick is to understand what the calculation is trying to do.

A service load calculation is not a guessing game. It is also not a simple addition problem. It is a structured way of estimating the electrical demand a building is allowed to place on its service conductors and service equipment.

The calculation is trying to answer:

That sentence is the heart of NEC load calculations.

Not every load runs at full output at the same time. A house may have an oven, dryer, water heater, air conditioner, lights, receptacles, dishwasher, disposal, microwave, and EV charger, but that does not mean every single one is operating at maximum nameplate load at the same instant. The NEC recognizes this through demand factors, optional methods, and noncoincident load rules.

But the NEC also does not let us casually say, “People probably won't use everything at once.” The Code gives specific rules for when we may reduce loads, when we may not, and which loads must be counted at full value.

That is why practice matters.

Load calculations are not hard because the math is advanced. Most of the math is multiplication, addition, percentages, and division. They are hard because you have to know what kind of load you are looking at before you know which rule applies.

First: Know Which NEC You Are Practicing From

Before doing any NEC load calculation, identify the edition your jurisdiction, class, exam, or lab is using.

The newest NEC edition as of 2026 is the 2026 NEC, but the edition legally enforced on a real project depends on the state or local jurisdiction. NFPA notes that the NEC is not federal law by itself; it is commonly incorporated into law at the state or local level. NFPA's enforcement map also shows that, as of March 1, 2026, many states were still enforcing earlier editions such as the 2023, 2020, 2017, or older NEC editions.

This matters because the section numbers changed significantly in the 2026 NEC. What many electricians and engineers learned as Article 220 — Branch-Circuit, Feeder, and Service Load Calculations was moved into Article 120 in the 2026 NEC. Several dwelling load-calculation assumptions also changed, including the dwelling general lighting load value and the optional-method first demand tier.

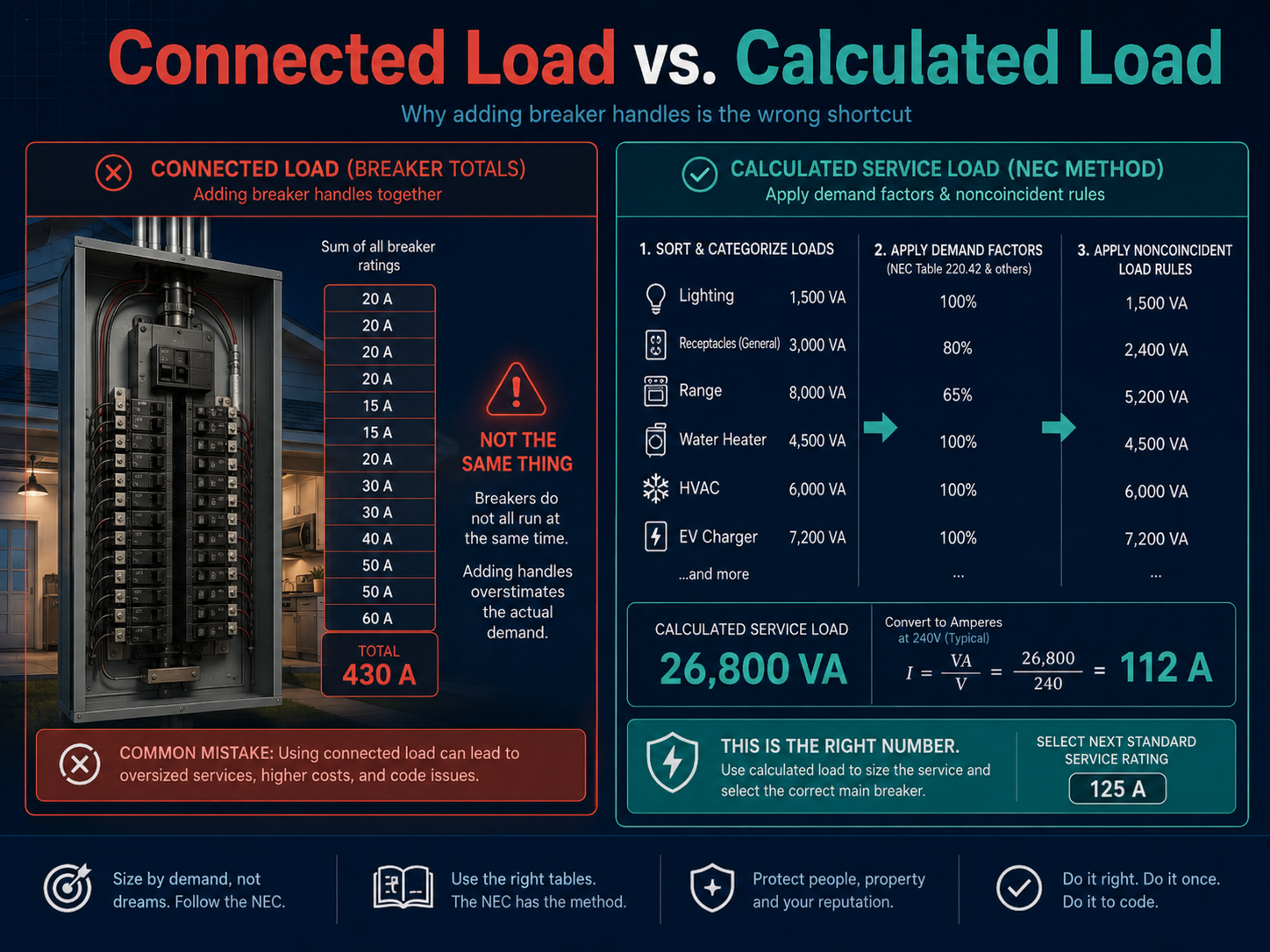

The Big Idea: A Load Calculation Is Not the Same as Adding Breakers

Beginners often make one of the most common mistakes in electrical design:

They add up all the breaker handles.

A 200 A panel might have:

• a 50 A range breaker,
• a 30 A dryer breaker,
• a 40 A air conditioner breaker,
• a 20 A dishwasher circuit,
• a 20 A kitchen receptacle circuit,
• another 20 A kitchen receptacle circuit,
• a 20 A laundry circuit,
• a 60 A EV charger breaker,
• plus many 15 A and 20 A lighting/receptacle circuits.

If you add the breaker handles, you might get 400 A, 500 A, or more.

A service load calculation is not the same as adding breakers.

Breakers protect conductors and equipment on individual circuits. They are not a prediction that all circuits will operate at their full breaker rating at the same time.

A service load calculation is different. It asks:

Enlarge

Think of it like designing a parking lot.

A shopping center may have thousands of people who could visit during a month. That does not mean every one of them needs a parking space at the exact same minute. But you also cannot provide only five spaces and say, “Well, maybe nobody shows up.”

A load calculation is the NEC's way of creating a reasonable design number between those two extremes.

Connected Load vs. Calculated Load

These two terms are the key to the whole topic.

Connected load

The connected load is the sum of the loads physically connected or expected to be connected.

If a dwelling has:

• a 12,000 VA range,
• a 5,000 VA dryer,
• a 4,500 VA water heater,
• a 5,000 VA air conditioner,
• a 1,200 VA dishwasher,

then those are connected loads. They exist. They are installed. They have to be considered.

Calculated load

The calculated load is the load after applying the NEC rules. This may include:

• square-footage allowances,
• nameplate values,
• minimum required circuit allowances,
• demand factors,
• noncoincident load comparisons,
• optional method reductions,
• existing-load methods,
• motor rules,
• neutral-load rules.

The calculated load is the number used to determine whether the service, feeder, or equipment has enough capacity.

The Three Levels: Branch Circuit, Feeder, Service

A lot of confusion disappears when you separate the electrical system into three levels.

Branch circuit

A branch circuit is the circuit that directly supplies utilization equipment or receptacles.

Examples: dryer circuit, range circuit, dishwasher circuit, lighting circuit, EV charger circuit, receptacle circuit.

Branch-circuit calculations are local. They answer: how large must this individual circuit be?

Feeder

A feeder carries power to a panel or group of branch circuits.

Examples: feeder to a subpanel, feeder to an apartment panel, feeder to a detached garage panel, feeder to a tenant space.

Feeder calculations answer: how much load is downstream of this feeder, after applying the correct demand rules?

Service

The service is the supply from the utility/service point into the building service equipment.

The service calculation answers: how much load must the building service be able to carry?

The same load may appear in different calculations depending on what you are sizing. That is why you always start by identifying the target: am I calculating a branch circuit, a feeder, or the service?

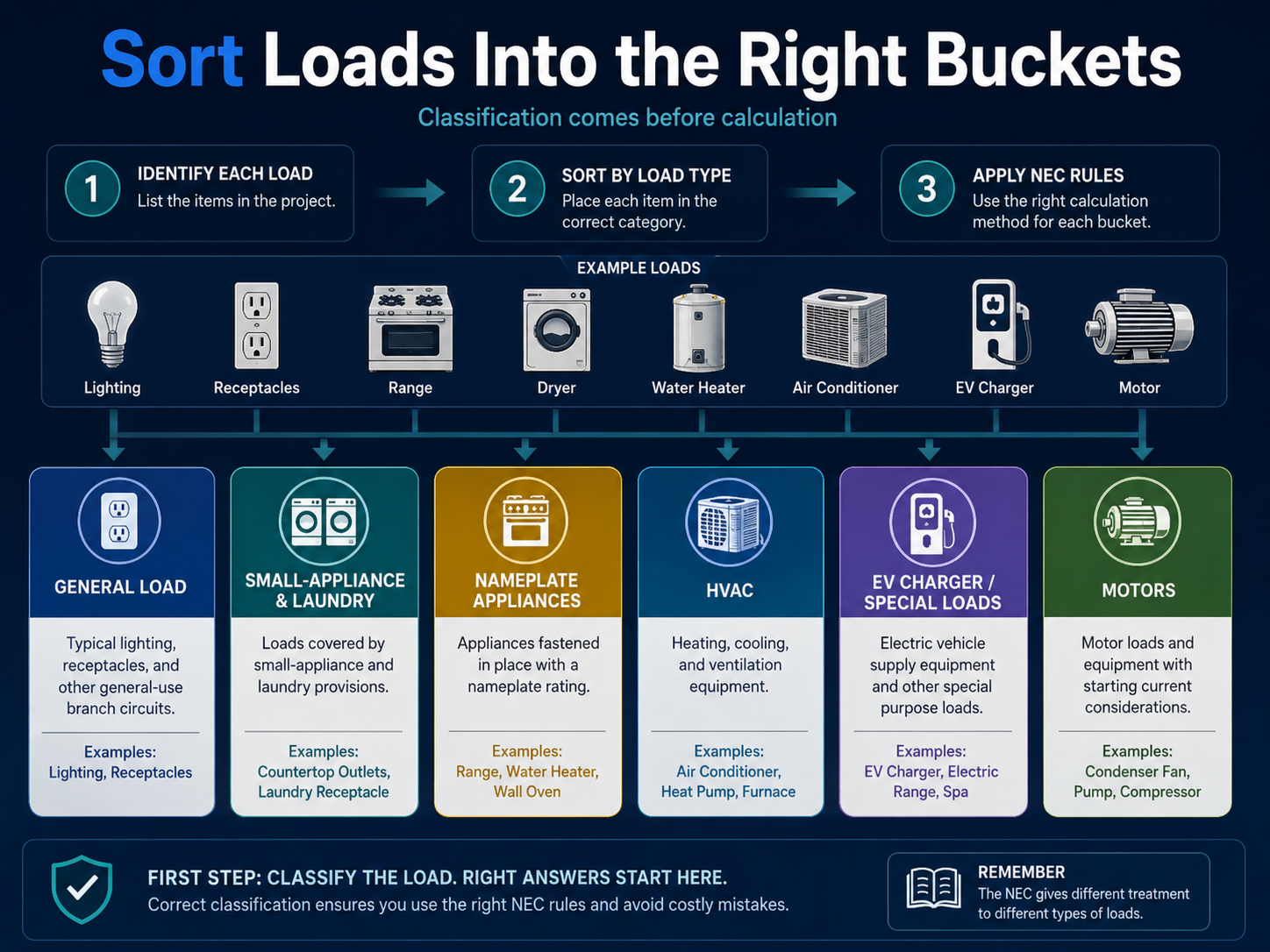

The Beginner's Mental Model: Put Every Load Into a Bucket

Do not start with the NEC tables.

Start with buckets.

Most service load calculations become easier when you sort the building loads into categories before touching a demand factor.

Enlarge

For a dwelling, the main buckets are usually:

This is the first major skill:

Classify the load before calculating the load.

The Code table is not the beginning. The load type is the beginning.

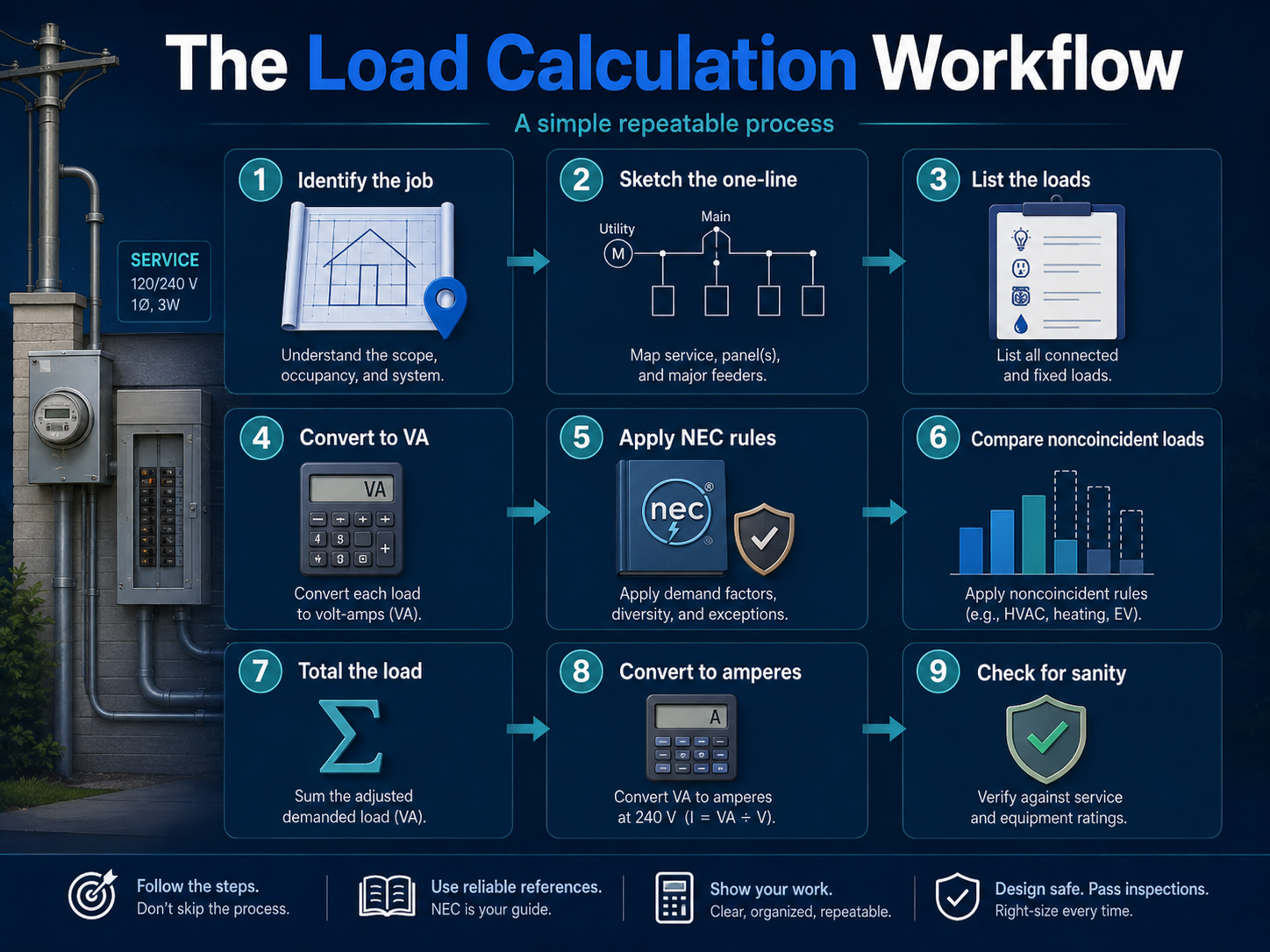

The Plain-English Flow of a Service Load Calculation

Most practice problems can be approached with this sequence.

Enlarge

Step 1: Identify the job

Ask:

• Is this a dwelling or non-dwelling?
• Is it single-family, multifamily, commercial, industrial, agricultural, or mixed-use?
• Is this new construction or an existing service with added load?
• Are we sizing a branch circuit, feeder, or service?
• Which NEC edition applies?
• Are local amendments involved?

This step matters because the rules for a single-family dwelling are not the same as the rules for a restaurant, school, workshop, office, apartment building, farm building, or industrial facility.

Step 2: Draw a simple one-line sketch

Do not make it beautiful. Just sketch:

Utility → meter → service disconnect/main panel → feeders/subpanels → major loads

Then list the major loads under the panel that supplies them.

A load calculation without a one-line sketch is like trying to do plumbing math without knowing where the pipes go.

Step 3: List the loads

Write down every load you know. For each load, record:

• load name,
• voltage,
• amperes or watts/VA,
• phase,
• whether it is continuous,
• whether it is heating, cooling, motor, appliance, receptacle, lighting, EVSE, or other,
• whether it can operate at the same time as another load.

At this point, do not reduce anything. Just collect facts.

Step 4: Convert everything to VA

The common language of load calculations is volt-amperes, or VA.

For many residential practice problems, you will often divide final VA by 240 V to estimate service amperes on a 120/240 V single-phase service.

Examples:

Do not mix amperes and VA casually. Convert first, then add.

Step 5: Apply the correct NEC rule to each bucket

This is where the Code enters. You do not apply demand factors randomly. You ask:

What does the NEC say this type of load is allowed or required to be counted as?

Some loads are counted by square footage. Some are counted by nameplate. Some have minimum values. Some may use demand factors. Some may not. Some are compared against other noncoincident loads. Some must be counted at 100%.

Step 6: Compare noncoincident loads

Some loads do not normally operate at the same time. The classic example is heating and air conditioning.

In many buildings, the air conditioner and the electric heat do not operate together. If they are truly noncoincident, the calculation may allow you to use the larger load rather than adding both.

Step 7: Convert final VA to amperes

For a single-phase 120/240 V dwelling service:

That does not automatically mean you install “exactly 150 A everything.” It means the calculated service load is 150 A, and now you select equipment, conductors, overcurrent protection, and standard ratings according to the applicable Code rules.

Step 8: Check the answer for sanity

• Is the result lower than the connected load? That may be normal.
• Is the result higher than the connected load? That may indicate double-counting.
• Did I use the correct voltage?
• Did I use the correct NEC edition?
• Did I count heating and cooling correctly?
• Did I apply a demand factor twice?
• Did I forget a required minimum?
• Did I confuse breaker rating with load?
• Did I confuse watts, VA, and amperes?

Good load calculations are not just math. They are organized thinking.

Why the NEC Uses Demand Factors

A demand factor recognizes that not all connected loads operate at full load at the same time.

Imagine a house with ten faucets.

Each faucet could flow water. But the water service is not usually sized as though every faucet, shower, hose bibb, dishwasher, washing machine, and ice maker will run at full flow forever.

Electrical systems are similar, but with stricter safety consequences.

A dwelling may contain many connected loads, but typical use is diverse. The oven cycles. The dryer cycles. The water heater cycles. The air conditioner cycles. Lights are not all on. Receptacles are not all loaded to 100%. People do not usually cook Thanksgiving dinner, dry laundry, charge an EV, run every hair dryer, heat the water tank from cold, and operate every lighting circuit at the exact same moment.

Demand factors let the Code recognize that reality.

But demand factors are not engineering vibes. They are permission. The right way to think is:

Full load is the default. Reduction is allowed only when the Code gives you a rule for it.

Why Tables Feel So Overwhelming

NEC tables feel overwhelming because beginners often try to read them as standalone objects.

But most tables are not meant to be read alone. A rule points you to a table after you have already identified the load.

A table is like a map legend. It is useful only after you know what map you are reading.

Instead of asking: “Which table do I use?” ask: “What kind of load is this?”

Then: “Where does the NEC tell me to calculate this kind of load?”

Then: “Does that section send me to a table?”

This turns the NEC from a maze into a decision tree.

The Practice Method: Learn One Layer at a Time

Do not begin by practicing full service calculations. That is like trying to learn piano by starting with a concert piece.

Practice in layers.

Layer 1: Unit conversion drills

Before using demand factors, practice converting load data into VA.

• A 120 V dishwasher draws 10 A.
  120 V × 10 A = 1,200 VA
• A 240 V water heater is rated 4.5 kW.
  4.5 kW = 4,500 W ≈ 4,500 VA (resistive)
• A 208 V three-phase motor load draws 18 A.
  1.732 × 208 V × 18 A ≈ 6,484 VA

This skill must become automatic.

Layer 2: Load classification drills

Take a list of loads and classify them.

Example list: kitchen receptacle circuit, electric dryer, gas furnace blower, range, dishwasher, heat pump, EV charger, bedroom receptacles, water heater, detached garage subpanel.

Do not calculate yet. Just classify. Ask:

• Is it general load?
• Appliance?
• HVAC?
• Motor?
• EVSE?
• Required circuit allowance?
• Nameplate load?
• Continuous load?
• Noncoincident with another load?

This builds the mental index you need before using the Code.

Layer 3: Single-bucket calculations

Practice only one type of load at a time. Examples: general dwelling load, small-appliance and laundry load, dryer load, range load, HVAC comparison, motor VA, neutral load.

Do twenty tiny problems before doing one big problem.

Layer 4: Partial dwelling calculations

Now combine: square footage, small-appliance circuits, laundry circuit, a few appliances. Stop before HVAC. Then add HVAC later.

This makes the calculation feel less like a giant monster and more like a stack of small tasks.

Layer 5: Full service calculations

Only after the smaller pieces feel familiar should you practice full service calculations. At this stage, the goal is not speed. The goal is traceability. Every number in your answer should have a label.

Bad:

Total = 38,600 VA

Better:

General load subtotal after demand = 22,100 VA
HVAC load added             = 6,500 VA
EVSE added                  = 9,600 VA
Total calculated load       = 38,200 VA
38,200 VA ÷ 240 V           = 159.2 A

A load calculation should be reviewable. Label every subtotal.

A reviewer should be able to follow your math without reading your mind.

Dwelling Optional Method: The Beginner-Friendly Starting Point

For many learners, the dwelling optional method is the best place to start because it shows the logic of demand factors without forcing you to use every table in the NEC.

Under the 2023 NEC, the optional dwelling method in Article 220 allowed qualifying dwelling units to combine general loads and certain appliance loads, then count the first 10,000 VA at 100% and the remainder at 40%. The method applied to qualifying dwelling units served by a single 120/240 V or 208Y/120 V, 3-wire service or feeder with sufficient ampacity.

Under the 2026 NEC, load calculations were reorganized into Article 120, and the dwelling optional-method first tier was changed from the first 10 kVA to the first 8 kVA, with the remainder still at 40%. The dwelling general lighting load for feeder/service calculations was also changed from 3 VA per square foot to 2 VA per square foot.

That is why edition matters. But the mental pattern is the same:

1. Add the general dwelling loads.
2. Add required small-appliance and laundry circuit allowances.
3. Add many fixed/nameplate appliance loads.
4. Apply the optional-method demand factor to that group.
5. Add the applicable heating or cooling load.
6. Add other loads that the edition requires to be treated separately.
7. Convert VA to amperes.

Enlarge

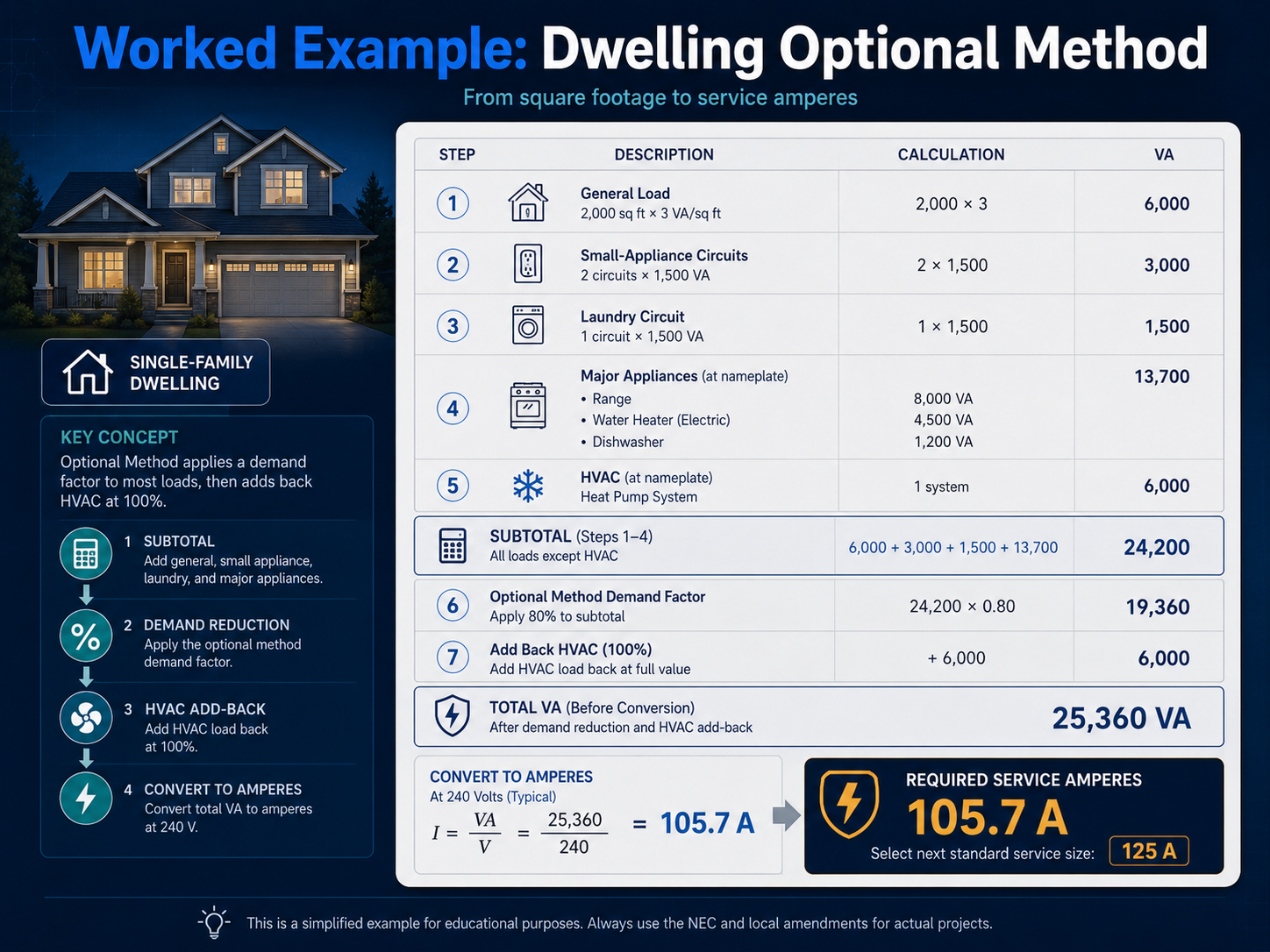

Worked Example: Dwelling Optional Method Style, 2023 NEC Practice

This is a practice example using common 2023-style dwelling optional-method assumptions. Always verify the exact edition and local amendments before using this on a real project.

Given

A single-family dwelling has:

• 2,000 square feet
• 120/240 V single-phase service
• two required small-appliance circuits
• one laundry circuit
• 12,000 VA range
• 5,000 VA dryer
• 4,500 VA water heater
• 1,200 VA dishwasher
• 800 VA disposal
• 1,500 VA microwave
• 5,000 VA air conditioner
• 10,000 VA central electric heat

Step 1: General dwelling load

Using the 2023-style dwelling value:

Step 2: Small-appliance circuits

Step 3: Laundry circuit

Step 4: Appliance / nameplate loads

Step 5: General / appliance subtotal

Step 6: Apply 2023-style optional-method demand

Step 7: Add heating or cooling

Step 8: Total calculated load

Step 9: Convert to service amperes

A standard service size would need to be selected using the applicable NEC rules, equipment ratings, utility requirements, and local amendments. The point of the exercise is that the calculated load is not the same as the raw connected load and not the same as the sum of breaker handles.

Same House, 2026-Style Practice Comparison

Now look at how the same house changes if practicing under 2026-style assumptions.

The 2026 NEC changed the dwelling feeder/service general lighting value to 2 VA per square foot and changed the optional-method first tier to 8 kVA before applying the 40% factor to the remainder.

Same house. Different edition assumptions. Different result.

This is why good practice problems always state the NEC edition.

Why Heating and Cooling Are Treated Carefully

Heating and cooling loads are a perfect example of why service load calculations are not just arithmetic.

Suppose a house has a 5,000 VA air conditioner and a 10,000 VA electric heat.

A beginner might add:

But if the system is arranged so the heating and cooling do not run at the same time, the NEC calculation may allow only the larger applicable load to be included. This is called a noncoincident load condition.

Plain English: noncoincident loads are loads that do not happen together. Examples:

• air conditioning vs. electric space heating,
• normal source vs. alternate source under certain transfer arrangements,
• two process loads controlled so only one can operate at a time.

But this depends on the actual system. If the equipment can run together, count it together.

For example, a heat pump compressor and supplemental electric heat may be able to operate together depending on the system configuration. Some systems energize heat strips during defrost or auxiliary heat. Others may lock out certain stages. The load calculation must reflect how the equipment can actually operate and how the Code section requires it to be counted.

This is where advanced engineers and field electricians need to think the same way:

Do not just identify the equipment. Identify the operating relationship between the equipment.

The Difference Between “Real-World Load” and “NEC Calculated Load”

A clamp meter, smart panel, or utility demand record might show that a house rarely exceeds 45 A.

So why might the NEC calculated load be 120 A? Because these are different questions.

Both are useful.

Measured data may be allowed in certain existing-load calculations, if the NEC edition and AHJ permit it and the data meets the required conditions. But you cannot replace a required Code calculation with “it probably won't happen.”

A good analogy is a bridge. The bridge engineer does not design only for the average number of cars on a Tuesday morning. The bridge must handle a defined design condition. That condition may not occur every day, but the bridge must be safe when it does. Electrical services are similar. The calculated load is not a prediction of your exact utility bill. It is a design value.

Continuous Loads: Do Not Mix Up Load Calculation and Equipment Sizing

A continuous load is generally one expected to run for a long duration. Lighting in a commercial space, process equipment, and EV charging are common examples where continuous-load thinking becomes important.

One common confusion is whether to apply 125% during the service load calculation itself or later during conductor and overcurrent device sizing.

The 2026 NEC added clarification that load calculations themselves do not require continuous loads to be calculated at 125%, while the multiplier may still matter for conductor or overcurrent protective device sizing under other rules.

EV Chargers: A Modern Load Calculation Stress Test

EV chargers are useful practice loads because they expose many beginner mistakes. They are often:

• large,
• continuous,
• adjustable,
• sometimes load-managed,
• sometimes added to existing services,
• heavily affected by NEC edition and local rules.

A 48 A Level 2 EV charger on a 240 V circuit has a charging load of:

That is not a small load. It can be larger than an air conditioner, dryer, or water heater.

The learning point is bigger than EVs:

New technologies often reveal whether you truly understand the load calculation method or whether you were just copying an old example. EVs, heat pumps, induction ranges, battery systems, power control systems, and smart panels are changing the way service capacity is evaluated. That does not make the basics obsolete. It makes the basics more important.

Standard Method vs. Optional Method

The standard method is the detailed route. It calculates different categories of load according to their specific rules and demand factors.

The optional method is a simplified route allowed only when the installation qualifies.

For dwellings, the optional method is popular because it groups many loads together and applies a simpler demand structure. But optional does not mean universal. It is not a shortcut you can use on every building.

Think of it this way:

• Standard method: Sort every item into its own checkout lane.
• Optional method: Put qualifying dwelling loads into a larger cart and apply a simplified rule.

The optional method is easier to learn first because it shows how load diversity works. But serious practice should include both methods because real projects do not always qualify for the optional method.

What Advanced Engineers Should Watch For

Once the beginner math is comfortable, the advanced challenge is judgment.

1. Coincidence assumptions

Do not assume two loads are noncoincident just because they seem related. Verify controls, interlocks, operating sequences, and equipment behavior.

2. Power factor and VA

The service equipment is affected by current, not just real power. Loads with motors, compressors, drives, electronic power supplies, and nonlinear characteristics can make VA and amperes more important than simple watts.

3. Neutral loading

In a 120/240 V single-phase dwelling, 240 V line-to-line loads do not use the neutral in the same way 120 V line-to-neutral loads do. In three-phase systems, nonlinear loads can create harmonic neutral currents that do not cancel like balanced fundamental currents. Neutral calculations are not an afterthought.

4. Existing-service evaluations

Existing buildings require careful documentation. A service that “has worked for years” may still fail a Code load calculation when adding new loads. On the other hand, measured demand methods or load management may provide a legitimate path if the NEC edition and AHJ allow it.

5. Load management

Modern systems can actively prevent overload by controlling when loads operate. Power control systems and energy management systems are becoming increasingly important, especially for EV charging and electrification retrofits. But these systems must be recognized, listed, installed, and documented according to the applicable Code rules.

6. Code minimum vs. engineering design

The NEC is a minimum safety standard. A design may need to exceed the NEC minimum for: future capacity, voltage drop, utility requirements, owner requirements, redundancy, resilience, harmonics, power quality, motor starting, thermal environment, continuous operation, or maintenance access.

A passing load calculation is not automatically a complete electrical design.

The Most Common Load Calculation Mistakes

A Practice Template You Can Reuse

Use this structure for every service load calculation practice problem.

Project information

• Project name:
• NEC edition:
• Jurisdiction / AHJ:
• Building type:
• New or existing:
• Service voltage:
• Phase:
• Calculation method:
• Target: branch circuit / feeder / service

Load inventory

Calculation summary

Final conversion

Practice Exercises

Labs You Can Run

How to Get Better Fast

The fastest way to improve is to stop doing giant problems blindly. Use this practice sequence:

1. Convert VA for 20 loads.
2. Classify 20 loads.
3. Calculate only general dwelling load.
4. Calculate only small-appliance and laundry load.
5. Calculate only appliance nameplate subtotal.
6. Practice one HVAC comparison at a time.
7. Run one optional-method dwelling calculation.
8. Run the same problem under a different NEC edition.
9. Add an EV charger and re-evaluate.
10. Explain your answer to someone without showing them the Code table first.

If you can explain it plainly, you probably understand it.

The One-Sentence Summary

A service load calculation is the NEC's structured way of turning a messy list of connected electrical loads into a defensible service-sizing number.

Or even shorter:

Do not memorize the tables first. Learn what kind of load you are holding.

Final Field Note

The NEC can feel esoteric because it is written for precision, not storytelling. But the concept behind load calculations is practical:

A building's electrical service must be large enough for the load it is expected and permitted to serve, but it does not always need to be sized as though every connected load operates at maximum rating at the same time.

That balance is the whole game.

• The beginner learns the arithmetic.
• The apprentice learns the tables.
• The journeyman learns the exceptions.
• The engineer learns the assumptions.
• The plan reviewer learns the documentation.

And the best electrical professionals learn to ask the same question at every step:

“What is this load, and what does the Code allow me to do with it?”

That question keeps you from drowning in tables.
