Basics of Transformer Vector Groups

Enlarge

A transformer does more than change voltage. In a three-phase power system, it can also change the relationship between the phases. That relationship is what a transformer vector group tells you.

On a one-line diagram, the transformer may look like a simple symbol between two buses:

13.8 kV Bus  ─── [ Transformer Dyn11 ] ─── 480Y/277 V Bus

But that symbol is hiding a lot of information:

• The high-voltage side might be delta.
• The low-voltage side might be wye.
• One side may have a neutral.
• One side may block certain ground-fault current paths.
• The voltage phasors on one side may be shifted by 30 degrees compared with the other side.

That last part is why you see labels like Dyn11 or YNd1 on one-lines, transformer nameplates, protection drawings, and power studies. A vector group is the short code that says:

“Here is how the three transformer windings are connected, here is whether a neutral is available, and here is the angular shift between the high-voltage and low-voltage line voltages.”

The big idea

A single-phase transformer is easy to picture: one primary winding, one secondary winding, magnetic coupling, and a voltage ratio.

A three-phase transformer is still based on the same idea, but now there are three voltages that are already separated by 120 electrical degrees. When you connect those windings as delta, wye, or zigzag, the transformer does not just change voltage magnitude. It can also rotate the phasor relationship between the high-voltage and low-voltage sides.

Two clocks can both be running correctly at the same frequency, but one clock may read 30 minutes ahead of the other. In the same way, two three-phase buses can both be healthy 60 Hz systems, both have correct phase sequence, and both have balanced voltages, but the phasors on one side of a transformer may be shifted by 30 degrees relative to the other side.

That phase shift is not a problem by itself. It is part of the transformer's design. It only becomes a problem when people forget it is there.

First, what is a phasor?

AC voltage changes with time. On a 60 Hz system, each voltage waveform completes 60 cycles every second. On a three-phase system, the three phase voltages are separated from each other by 120 degrees.

Instead of drawing sine waves over and over, engineers often draw them as rotating arrows called phasors.

A phasor has two pieces of information: magnitude and angle. For example:

This means the A-phase voltage is our reference, B phase is 120 degrees behind it, and C phase is 120 degrees ahead of it. For transformer vector groups, the most important phasors are usually line-to-line voltages, not line-to-neutral voltages. That distinction matters.

Line-to-neutral voltage vs line-to-line voltage

In a wye system, you can measure from a phase conductor to neutral (VAN, VBN, VCN) or between two phase conductors (VAB, VBC, VCA). These are not the same phasors.

If the phase-to-neutral voltages are:

Then the line-to-line voltage from A to B is:

Enlarge

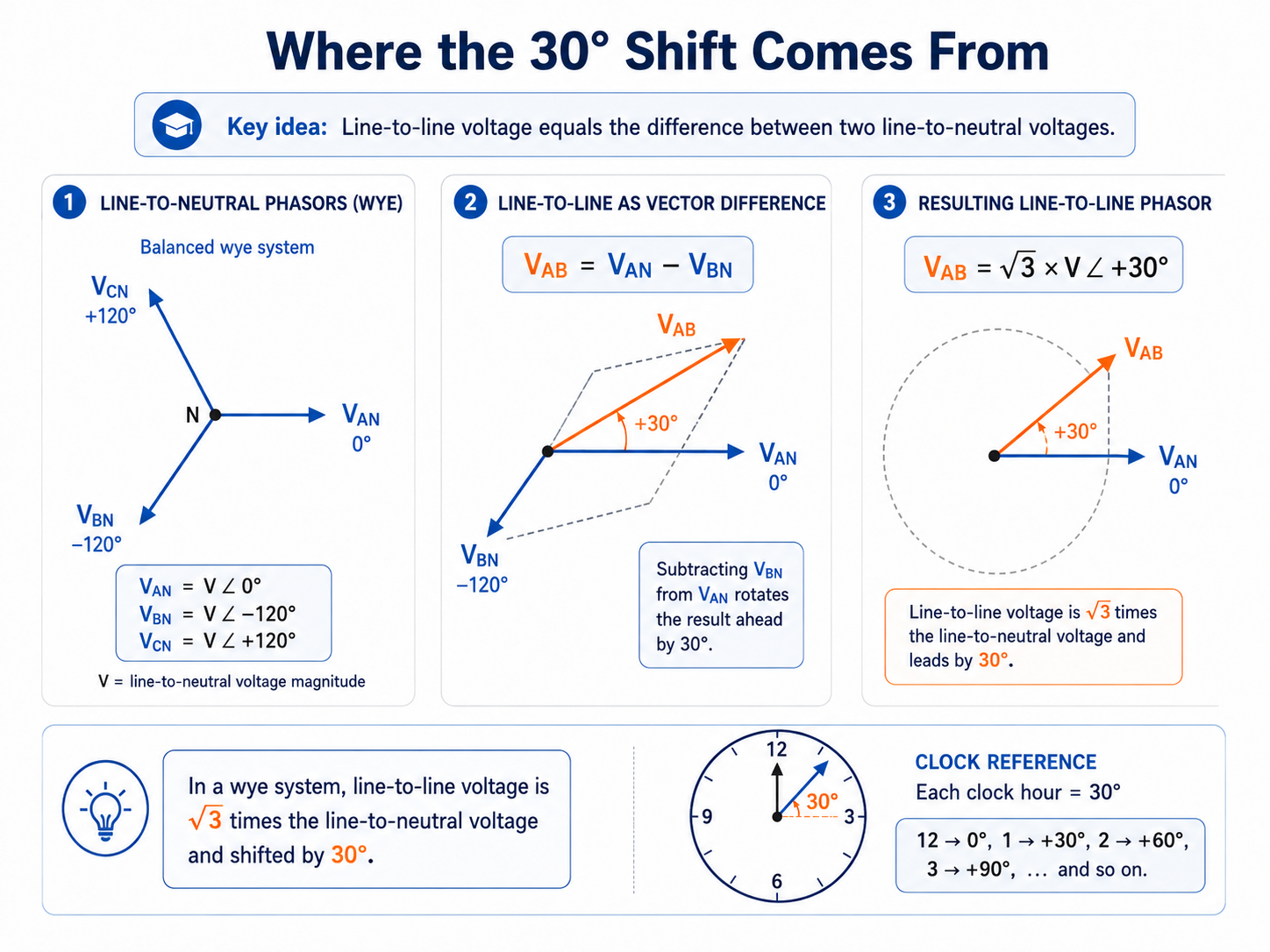

Why delta and wye create a 30-degree shift

A delta winding is connected phase-to-phase. Each winding sits directly between two line terminals. A wye winding is connected phase-to-neutral. Each winding sits between one line terminal and the neutral point.

• A delta winding naturally lines up with line-to-line voltage.
• A wye winding naturally lines up with line-to-neutral voltage.
• Vector groups are normally expressed using line-to-line voltage comparison between HV and LV sides.

So when you compare a delta side to a wye side, you inherit the 30-degree difference between line-to-neutral and line-to-line phasors. The transformer is not “delaying” the electricity in time. The shift is a geometric result of how the three windings are connected.

At 60 Hz, 30 electrical degrees corresponds to:

At 50 Hz, 30° ≈ 1.667 ms. But the transformer is not acting like a timer; the time equivalent is just another way to picture the angular separation.

What the vector group code means

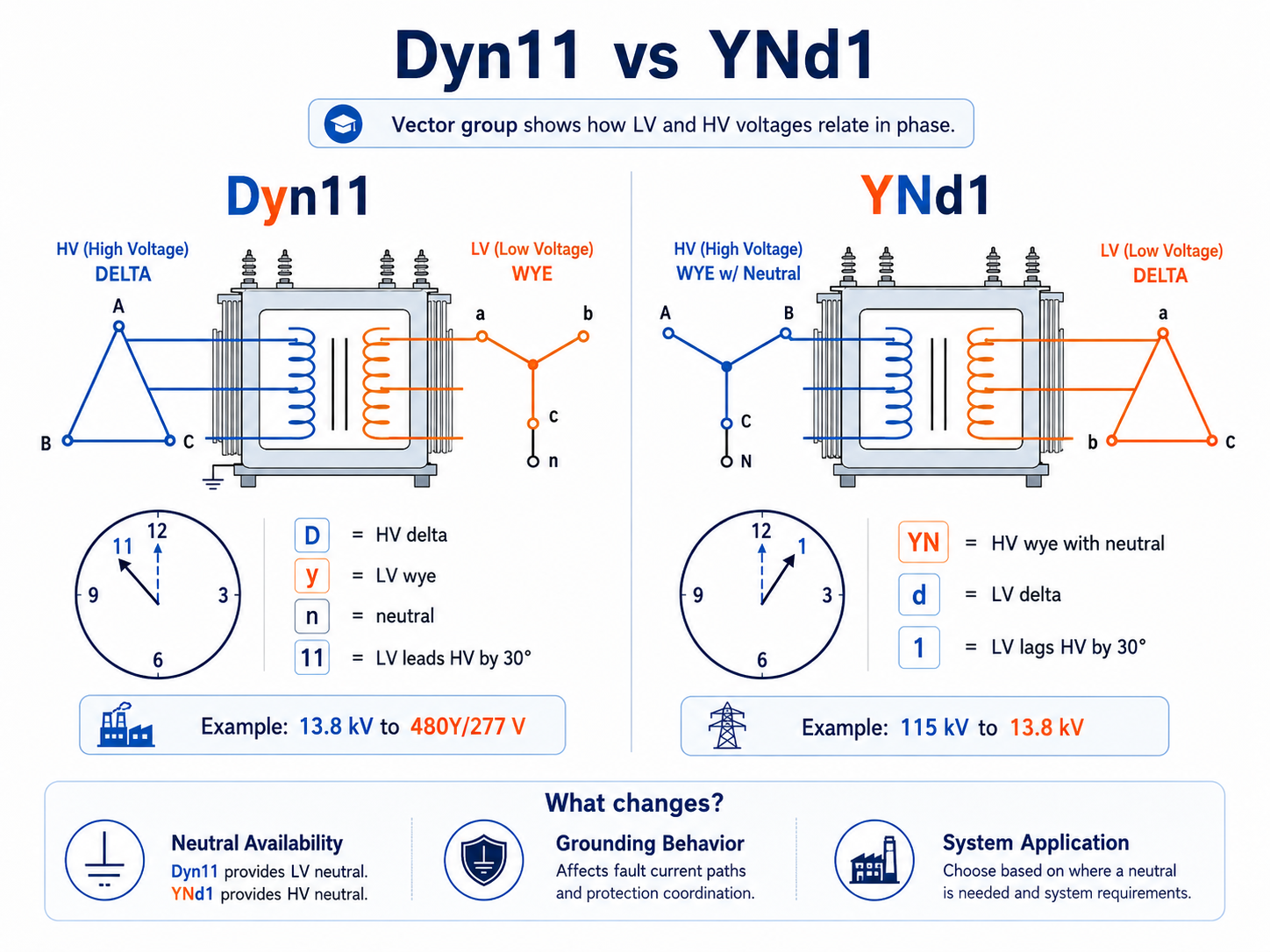

Let's decode Dyn11:

The letters use a simple convention:

So Dyn11 means HV delta, LV wye with neutral brought out, LV at 11 o'clock. YNd1 means HV wye with neutral brought out, LV delta, LV at 1 o'clock.

The clock notation

Set the high-voltage line voltage at 12 o'clock. Then look at where the corresponding low-voltage line voltage lands. Each hour represents 30 degrees:

In vector group notation, 0 is commonly used for no displacement (Yy0, Dd0, YNyn0). Now compare:

Using the usual mathematical phasor convention, counterclockwise is positive:

A practical warning: people often get lead/lag language mixed up because they change the reference. When in doubt, use the clock diagram and the transformer nameplate vector diagram rather than relying on the words “leads” or “lags.”

Dyn11

What Dyn11 means

A common example is a medium-voltage distribution transformer feeding a low-voltage four-wire system:

11 kV or 13.8 kV  ─── Dyn11 transformer ─── 400Y/230 V or 480Y/277 V

The low-voltage side can supply both three-phase loads and single-phase line-to-neutral loads. A 480Y/277 V system can feed 480 V three-phase motor loads and 277 V lighting loads. The “n” in Dyn11 matters because it tells you the neutral point is available for grounding and for line-to-neutral loads.

Why use delta on the high-voltage side?

A delta winding has no neutral point. That means there is no direct line-to-neutral connection on that side of the transformer winding. A delta winding can help isolate certain zero-sequence and triplen-harmonic behavior from passing directly from one side of a transformer to the other.

Why use wye with neutral on the low-voltage side?

A wye secondary gives you a neutral point. That is extremely useful in low-voltage distribution because many facilities need both line-to-line and line-to-neutral voltages.

• 480Y/277 V system: 480 V line-to-line, 277 V line-to-neutral.
• 208Y/120 V system: 208 V line-to-line, 120 V line-to-neutral.

What the “11” means in Dyn11

If the HV line-voltage phasor is placed at 12 o'clock, the LV line-voltage phasor is placed at 11 o'clock. That means:

YNd1

What YNd1 means

A simplified one-line:

115 kV grounded-wye system ─── YNd1 transformer ─── 13.8 kV delta system

Why use wye with neutral on the high-voltage side?

On high-voltage systems, grounded-wye connections are common because they provide a neutral point for grounding and can help define phase-to-ground voltages. In YNd1, the high-voltage side has the neutral brought out. That does not necessarily tell you whether the neutral is solidly grounded, impedance grounded, or used in some other grounding arrangement — the grounding method must still be designed.

Why use delta on the low-voltage side?

A low-voltage delta side may be used where a three-wire system is desired, where line-to-neutral loads are not needed directly from that transformer, or where the transformer is part of a larger grounding and protection strategy. If a neutral is needed on the delta side, you need another method:

• Grounding transformer
• Zigzag transformer
• Wye-derived secondary elsewhere
• Corner grounding, where appropriate
• Center-tapped delta, where appropriate

What the “1” means in YNd1

That difference matters if you are comparing phasors across transformers, closing breakers between buses, setting relays, or building a power-flow model.

Enlarge

Why phase shift shows up on your one-line

A one-line diagram is a beautiful simplification. But because it is simplified, it must carry certain warnings in text form. The vector group is one of those warnings.

When you see:

T1 - 2500 kVA, 13.8 kV - 480Y/277 V, Dyn11, Z = 5.75%

the one-line is saying: “Do not assume the 13.8 kV A-B voltage is in phase with the 480 V a-b voltage. This transformer shifts the phasors.”

Enlarge

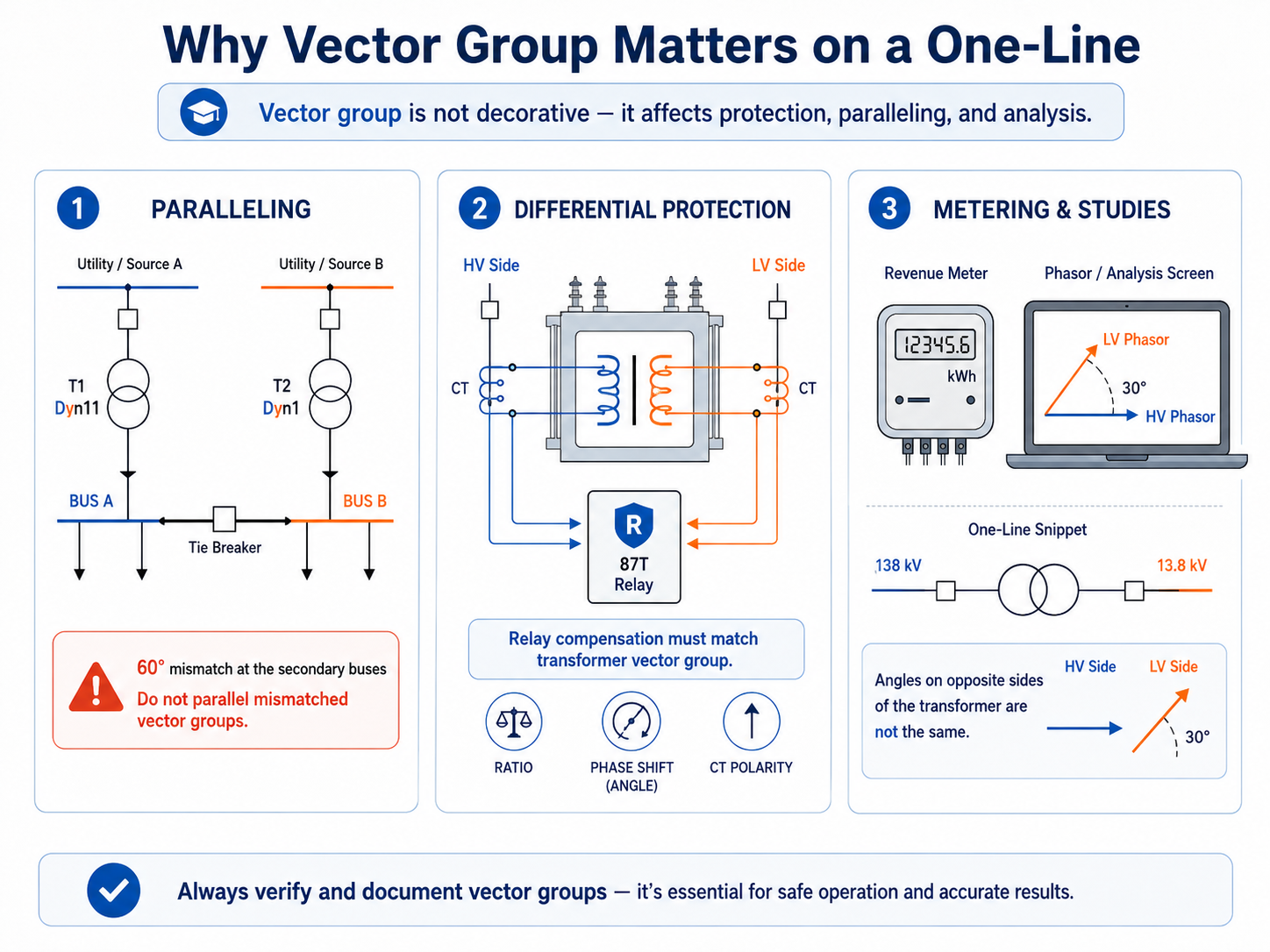

1. Paralleling transformers

If two transformers feed the same bus in parallel, their secondary voltages must line up. They need compatible voltage ratio, tap position, percent impedance, X/R ratio, polarity, phase sequence, vector group, phase angle displacement, and grounding arrangement.

If the vector groups do not match, the transformer secondaries fight each other. For example:

For equal line-to-line voltages, the difference between two phasors separated by angle θ is:

For a 480 V bus with a 60-degree mismatch:

2. Transformer differential protection

Transformer differential protection compares current entering the transformer zone with current leaving it. But a transformer changes current magnitude according to the turns ratio and may shift current phase angle because of the winding connection. The relay must compensate for ratio, CT ratio, phase shift, winding connection, zero-sequence behavior, and tap position.

3. Metering and phasor measurements

If you install meters or power quality monitors on both sides of a transformer, the voltage angles will not match unless the meter or engineer accounts for the transformer vector group. This matters for power factor, synch-check schemes, revenue metering, power quality studies, sequence-of-events analysis, PMU work, and DER interconnection studies.

A common mistake is to look at a 30-degree shift and assume something is wired wrong. Sometimes it is. Sometimes the transformer is doing exactly what its vector group says it should do.

4. Ground-fault behavior

Vector group is closely tied to grounding behavior. A delta side and a grounded-wye side do not pass zero-sequence currents the same way. This matters during line-to-ground faults.

5. Harmonics

Triplen harmonics (3rd, 9th, 15th, 21st, …) are zero-sequence harmonics. In a three-phase four-wire system, they can add in the neutral instead of canceling. Delta windings can also influence harmonic flow — they trap triplens so they do not flow from a low-voltage system to a medium-voltage system. Phase-shifting transformer pairs can also be used intentionally to cancel selected harmonics.

A plainspoken analogy: a transformer vector group does not change the fact that there are three runners on a track 120° apart. It rotates the whole group of runners relative to another track.

Worked examples

Decode Dyn11

T1
1500 kVA
13.8 kV - 480Y/277 V
Dyn11
Z = 5.75%

• D — HV delta. The 13.8 kV side has no neutral from this winding.
• y — LV wye. The 480Y/277 V side has a star point.
• n — LV neutral brought out for grounding and L-N loads.
• 11 — LV line voltage leads HV by 30°.

Practical conclusions: do not parallel with a Dyn1 transformer; set differential protection for Dyn11; expect a 30° shift; consider delta/wye ground-fault behavior; consider neutral/triplen harmonic loading.

Decode YNd1

T2
40 MVA
115 kV - 13.8 kV
YNd1

• YN — HV wye with neutral brought out (grounding method still to be designed).
• d — LV delta. The 13.8 kV side has no neutral from this winding.
• 1 — LV line voltage lags HV by 30°.

Practical conclusions: the 13.8 kV side is three-wire unless another grounding source is added; HV and LV phasors are displaced by 30°; protection and metering must account for YNd1.

Why Dyn11 and Dyn1 cannot simply be paralleled

Suppose two 480 V switchboards have the same kVA, similar impedance, and the same phase sequence — but one is fed by Dyn11 and the other by Dyn1. Their low-voltage phasors end up 60° apart relative to the same upstream reference. Closing a tie breaker between them creates a large circulating current path.

The hidden 30 degrees: where it comes from mathematically

Using a balanced positive-sequence wye system:

Calculate the line-to-line voltage in rectangular form:

Magnitude and angle:

A delta winding is already connected across line-to-line voltage. A wye winding is connected phase-to-neutral. When a transformer connects delta on one side and wye on the other, the comparison between line-to-line quantities naturally introduces a 30-degree angular relationship. The exact clock number depends on how the winding ends are connected and marked — which is why both Dyn1 and Dyn11 exist.

Common vector groups and what they suggest

This table is a starting point, not a design rule. Real projects must follow the manufacturer's vector diagram, applicable standards, utility requirements, and grounding/protection studies.

Beginner misconceptions

“The transformer only changes voltage”

A transformer changes voltage magnitude, but in three-phase systems it can also change voltage angle. A single-phase transformer is like a gear ratio. A three-phase transformer is like a gear ratio plus a shaft coupling that may be indexed by 30 degrees.

“A-phase is always A-phase”

Terminal names are references, not universal truths. The vector group describes the relationship between corresponding HV and LV terminals as designed and marked. Swapping two phases in the field changes phase sequence — that is not the same as transformer vector group phase shift.

“Neutral means grounded”

The “n” or “N” in the vector group means the neutral point is brought out. It does not describe whether the neutral is solidly grounded, impedance grounded, where the bond is located, or how ground relays are coordinated. Always check the grounding diagram.

“The clock number tells me current shift directly”

The vector group clock number is normally a voltage phase displacement designation. Current phase depends on load power factor, direction of power flow, transformer connection, reference direction, CT polarity, and relay convention.

Advanced notes

Positive, negative, and zero sequence

Positive sequence passes through the transformer with the vector group phase displacement. Negative sequence typically takes the opposite angular displacement. Zero sequence depends strongly on winding connection and grounding. That is why a transformer can behave one way for normal load, another way for a phase-to-phase fault, and another way for a phase-to-ground fault.

Delta windings and zero-sequence current

Phase-shifting for harmonic cancellation

Vector group phase shift is not always a side effect. Two six-pulse rectifier bridges fed from transformer outputs 30° apart can form a twelve-pulse arrangement that cancels certain lower-order harmonics on the upstream system, under balanced loading.

Backfeeding does not rename the vector group

A Dyn11 nameplate stays Dyn11 regardless of power flow direction. However, casual lead/lag language can become confusing because the reference changed. Use the actual terminals and clock diagram instead.

Lab you can run: see the 30-degree shift

What to check when you see a vector group on a one-line

• Which side is HV by rating? Which side is LV by rating?
• Which winding is delta? Which is wye?
• Is a neutral brought out? Is that neutral grounded?
• What is the clock number? Does LV lead or lag HV?
• Are any transformers being paralleled?
• Do relay settings match the transformer nameplate?
• Do CT polarities and ratios match the relay settings?
• Does the fault study model use the correct vector group?
• Does the grounding study model use the correct winding connection?
• Are meters or synch-check relays comparing phasors across the transformer?
• Are harmonic-producing loads connected downstream?

Final takeaway

A transformer vector group is not just a naming convention. It is a compact description of how the transformer connects two three-phase worlds. It tells you:

• The winding shape
• The neutral availability
• The phase-angle displacement
• The likely grounding behavior
• The protection and paralleling implications

So when you see Dyn11 or YNd1 on a one-line, do not treat it like fine print. It is telling you that the transformer changes more than voltage. It changes the electrical reference frame.
